KTX Type Rubber Vibration Isolators Cylindrical Double Female Anti-Vibration Mounts
Bring Silent and Stable Operation to Your Heavy Machinery
In modern industrial environments, uncontrolled mechanical vibration is a silent killer of equipment performance. Constant shaking, structural resonance, and excessive noise lead to accelerated machinery wear, premature fatigue failures, expensive unscheduled downtime, and hazardous workplace noise pollution.
Does your machinery suffer from these operational bottlenecks?
Rapid Component Wear:Delicate gears, electronic control boards, and structural joints are constantly compromised by harsh mechanical vibrations.
Deafening Noise Levels: High-frequency hums and low-frequency thuds from engines and compressors disrupt operators and violate occupational safety regulations.
Shorter Equipment Lifespan:Rigid installations transfer structural stress directly back into the machines, significantly reducing their service life.
Introducing the"KTX Type Double Female Thread Rubber Vibration Isolators"—the ultimate professional engineering solution designed to decouple your machinery from structural resonance and restore quiet, high-efficiency operation.
Product Gallery
Both of our standard cylindrical designs are built with premium materials to guarantee top-tier industrial performance.
1.RDM(Double Female Thread) - Standard Configuration
The DD-type features identical female threaded studs embedded on both ends, making it the perfect choice for compact, flush installations where space is a critical constraint.(Figure 1: RDMType Double Female Thread Cylindrical Rubber Mounts—Featuring premium natural rubber with exceptional shear and compression damping capabilities.)
2. KTX(Double Male Stud) - Comparative/Alternative Setup

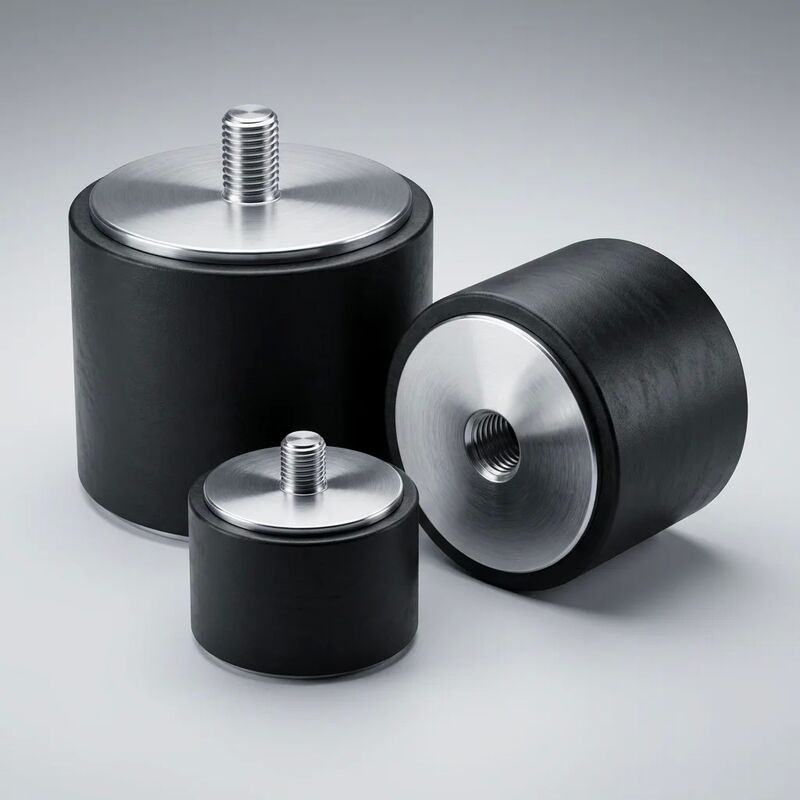

For setups requiring external stud configurations, we also offer the VV-type series. These allow easy drop-in mounting through pre-drilled brackets and can be quickly customized to fit your specific engineering drawing.(Figure 2: Custom Mounting Options—Comparing our double-female DD mounts to external male-thread series for customized installation setups.)
Key Features And Benefits
Premium-Grade High-Resilience Natural Rubber: Formulated using specialized natural rubber compound with excellent elasticity, elongation, and tear resistance. Our standard hardness is Shore A 55, providing the optimal balance between load capacity and damping efficiency.
Outstanding Vibration Noise Attenuation:Engineered to absorb up to 99% of high-frequency and low-frequency vibrations, dampening mechanical shock waves before they travel into surrounding structures or foundations.
Thermo-Chemical Metal-to-Rubber Bonding:Utilizing state-of-the-art chemical vulcanization, our rubber body is structurally bonded to the metal plates. Our bond strength is higher than the rubber's own tensile strength, ensuring the metal threaded inserts will never strip or detach, even under maximum shear loading.
Dual Female Threaded Design: Equipped with precision-machined, standard metric internal threads on both ends (ranging from M3 to M16). This compact, space-saving design is perfect for internal or low-profile integrations.
Anti-Corrosive Metal Hardware:Standard metal parts are yellow- or blue-zinc-plated steel to resist rust and oxidation. Custom orders can be manufactured with marine-grade SUS304 or SUS316 stainless steel for chemical washdown and highly corrosive environments.
Superior Weathering Aging Resistance:Specially treated to resist UV radiation, ozone, heat, and moderate oil exposure, guaranteeing a long service life in demanding industrial environments.
Technical Specifications
Every product undergoes rigorous quality testing to ensure exact dimensional tolerances and load performance. Below is the complete specification table for the RDMType series:
|
Model
|
D(mm) |
H(mm) |
M(mm) |
| RDM8×8 |
8 |
8 |
3 |
| RDM10×10 |
10 |
10 |
3/4 |
| RDM15×15 |
15 |
15 |
4 |
| RDM20×20 |
20 |
20 |
6 |
| RDM20×30 |
20 |
30 |
6 |
| RDM25×20 |
25 |
20 |
6 |
| RDM25×25 |
25 |
25 |
6 |
| RDM25×30 |
25 |
30 |
6 |
| RDM25×40 |
25 |
40 |
8 |
| RDM30×20 |
30 |
20 |
8 |
| RDM30×30 |
30 |
30 |
8 |
| RDM40×20 |
40 |
20 |
8/10 |
| RDM40×30 |
40 |
30 |
8/10 |
| RDM40×40 |
40 |
40 |
8/10 |
| RDM40×50 |
40 |
50 |
10 |
| RDM50×30 |
50 |
30 |
10 |
| RDM50×40 |
50 |
40 |
10 |
| RDM50×50 |
50 |
50 |
10 |
| RDM60×40 |
60 |
40 |
12 |
| RDM75×40 |
75 |
40 |
12 |
| RDM100×50 |
100 |
50 |
16 |
Universal Applications
RDMtype rubber mounts are a reliable choice for engineers and manufacturers worldwide. They are highly effective across a wide array of equipment:
Air Compressors Blowers: Dampens massive reciprocating structural forces, preventing the compressor from "walking" across the warehouse floor.
Diesel Gasoline Engines:Isolates low-frequency combustion rumbling and heavy rotational force imbalances.
Water Pumps HVAC Fluid Systems:Absorbs fluid-pulsation vibration to prevent structural fatigue and weld-joint cracking in connected plumbing.
Welding Machines Inverters:Protects fragile internal printed circuit boards (PCBs) and microchips from high-frequency shocks.
Generators Alternators:Delivers quiet, isolated operation for standby or prime power stations.
General Industrial Machinery:Excellent for fans, blowers, heavy conveyors, conveyor rollers, marine equipment, and agricultural machines.
