Hoan 100301 Modular Rubber Vibration Isolation Pads Tileable Anti-Vibration Waffle Mats

Hoan 100301 Modular Rubber Vibration Isolation Pads  Tileable Anti-Vibration Waffle Mats

Eliminate Severe Mechanical Vibration and Structural Noise Pollution

In modern commercial buildings and heavy industrial plants, structure-borne noise is a persistent andcostly engineering challenge. High-frequency motor hums, low-frequency pump pulsations, andreciprocating compressor shocks transfer directly into concrete floors. This energy travels as solid-bornesound waves through building columns, vibrating entire floor plans, causing noise complaints, looseningpipe joints, and disturbing high-precision equipment.
If you are dealing with:
 Structural Noise Transmission: Low-frequency thuds and hums propagating from mechanicalequipment rooms through floor slabs into offices or residential spaces.
HVAC Pipe Joint Stress: Severe vibration in water pumps or chillers causing pipe fatigue, leading tofluid leaks and weld cracks.
Instrument Calibration Loss: Delicate lab balances or optical sensors registering floor vibrations,resulting in unreliable readouts.
The Hoan 100301 Modular Rubber Vibration Isolation Pads represent the ultimate professional decouplingsolution. Engineered from premium vulcanized elastomers, this heavy-duty "waffle" pad series utilizes atileable, stacked configuration to absorb structural energy and achieve whisper-quiet machineryoperations.

Product Gallery

Our 100301 series features an engineered double-sided waffle design that prevents slippage, increasesdynamic deflection, and guarantees uniform load distribution.

1. Hoan 100301 Modular Rubber Vibration Pad (Standard Configuration)

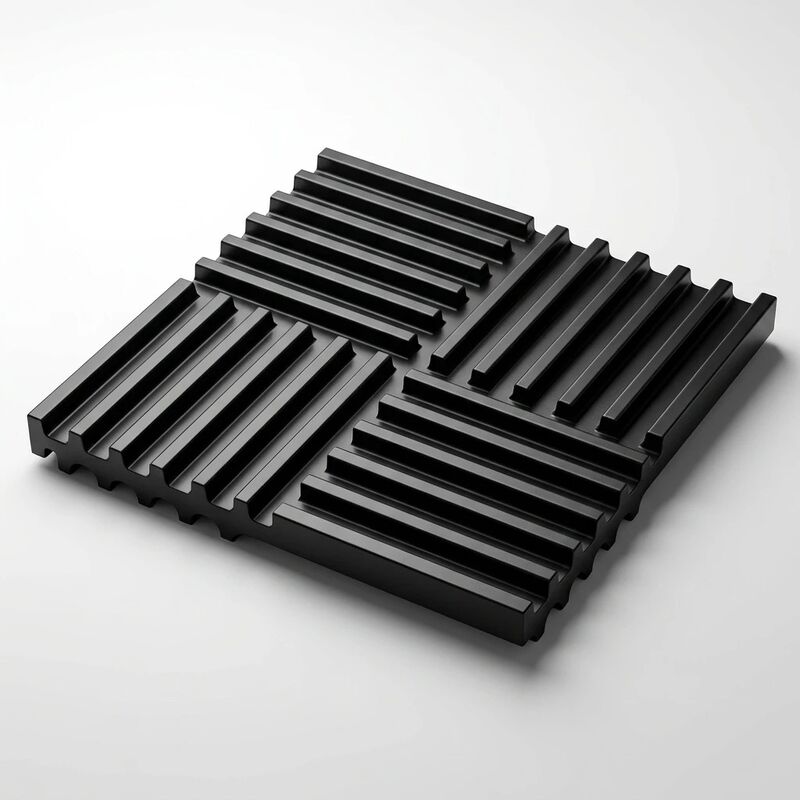

Featuring a high-performance waffle texture that creates multi-directional vacuum pockets, this pad offersoutstanding static friction and shock isolation.(Figure 1:Hoan 100301 Waffle Anti-Vibration Rubber Pad-Precision-molded natural rubber featuring modular interlocking joints for flexible sizing.)

2. Grid Surface & Material Quality Detail

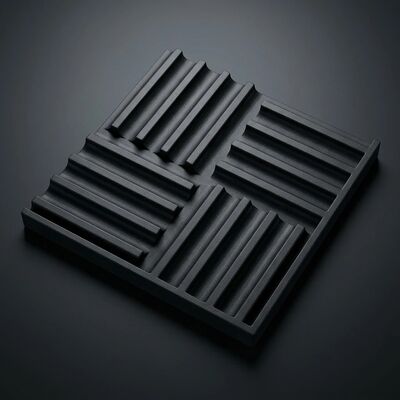

A close-up view highlighting our high-grade vulcanized elastomer, showing consistent wall thickness andhigh tear resistance designed for demanding structural environments.(Figure 2: Surface Profile Detail-Thedense waffle grid ensures optimal shear characteristics and prevents moisture or oil collection under the pad.)

Key Features Benefits

Modular Interlocking Tileable Design: The standard single block footprint measures 85mm x 85mm x20mm. Individual blocks can be seamlessly connected into larger mats to match any equipment base orcut on-site with a utility knife without losing edge stability or load rating.
Stackable Multi-Layer Performance (1 to 4 Layers): Easily scale your vibration isolation. The 100301 supports stacked installations up to 4 layers high (overall heights: 20mm, 43mm, 66mm, and89mm). By inserting 3mm galvanized steel plates between layers to distribute compression loads, thesystem lowers its natural frequency down to a remarkable 5.3 Hz for maximum low-frequencyprotection.
High-Dampening Natural Rubber Formulation: Specially blended NR (Natural Rubber), Neoprene, orEPDM provides superior energy dissipation. It absorbs up to 99% of high-frequency micro-shocks,making it perfect for high-speed motors, generators, and industrial chillers.Nomenclature/Part Number System:
 First Digit (Hardness): e.g., 6 represents 60 Shore A (Standard). Optional soft 4 (40 Shore A) orextra-stiff 8 (80 Shore A) are customizable.
Second Digit (Blocks): Defines the footprint configuration (1 = 1 block, 2 = 2 blocks, 4 = 4blocks, 6 = 6 blocks,8 = 8 blocks).
Third Digit after hyphen (Layers): Specifies the number of stacked layers (1 to 4 layers, separatedby 3mm load-distribution plates).

High Chemical Environment Resistance: Formulated to withstand UV radiation, ozone, moisture, andmoderate exposure to oils or industrial grease, ensuring a maintenance-free service life of over 10+years in harsh environments.

Detailed Specifications (Hoan 100301 Series - 60 Shore A Hardness)

The table below details the complete technical specifications for the standard 40, 60, and 80 Shore Aproduct family (using 60 Shore A as the baseline). These parameters are fully certified to ensure reliablemechanical calculations:

Technical Applications

Hoan 100301 modular vibration pads are trusted globally by acoustic consultants, MEP contractors, andmachine builders to isolate both high-frequency machinery noise and low-frequency heavy impacts.
HVAC Systems Cooling Towers: Ideal for placing beneath roof -mounted air handling units (AHUs),chillers, and evaporative condensers to stop vibrations from echoing through concrete structures.Heavy Fluid Water Pumps & Fans: Decouples high-volume circulating water pumps and centrifugalfans, protecting structural pipes from fatigue cracking.
Reciprocating Air Compressors: Absorbs high-energy vertical and horizontal unbalanced forces,stabilizing compressor skids without rigid floor anchoring.
Delicate Laboratory Foundation Beds: Protects high-magnification electron microscopes, coordinatemeasuring machines (CMMs), and optical tables from ambient floor vibrations.
Architectural Floating Floors Acoustic Rooms: Frequently used in the construction of theater floors,hotel generator rooms, recording studios, and mechanical plant rooms to establish high-efficiencyacoustic decoupling.
