Cable Small Shock Isolators Vibration Shock Isolation Solutions

Cable Small Shock Isolators Vibration Shock Isolation Solutions

Cable Small Shock Isolators

Small Shock Isolators Vibration

Vibration Shock Isolation Solutions

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Model Number:

GR5

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sale Service:
Online Technical Support
Project Solution Capability:
Total Solution For Projects
Application:
Outdoor, Helicopter Drone, Camera Gimbal, Aerial Photography
Design Style:
Industrial
Mateiral:
Stainless Steel Or Aluminum
Certificate:
ISO 9001:2015
Highlight:

Cable Small Shock Isolators

,

Small Shock Isolators Vibration

,

Vibration Shock Isolation Solutions

Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Price
$25.00/pieces 4-99 pieces
Packaging Details
Standard export packing or as per customers' requirements.
Product Description

Professional UAV Camera Gimbal Helicopter Drone Shock Protection GR5 Aerial Photography Camera Vibration Isolator

Product Description



Xi'an Hoan's GR5 Series is the best choice for building your own Camera Gimbal!



The GR5 Series camera vibration isolators is one type camera accessories , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

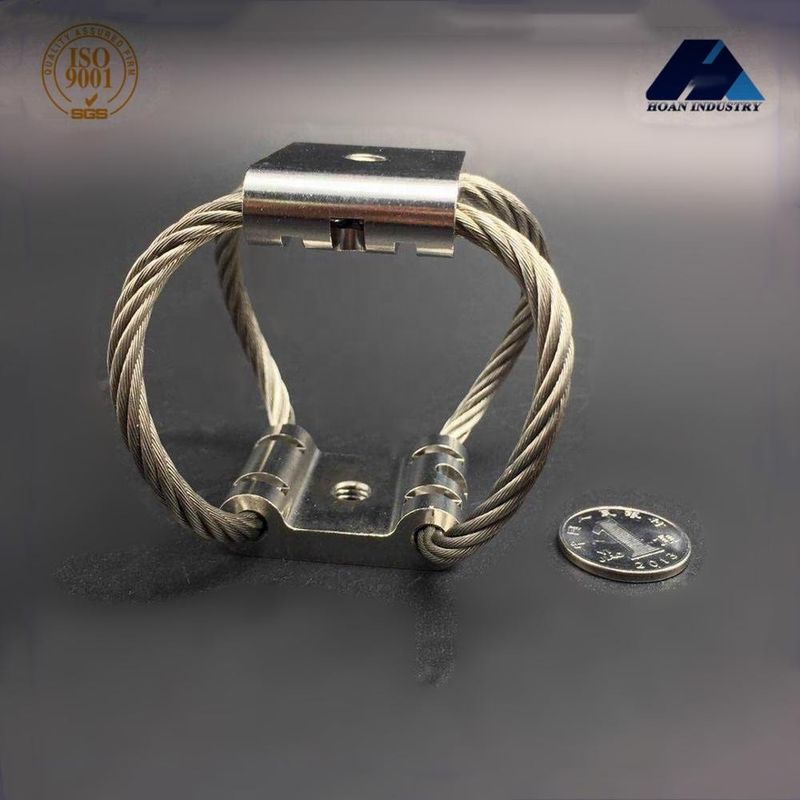

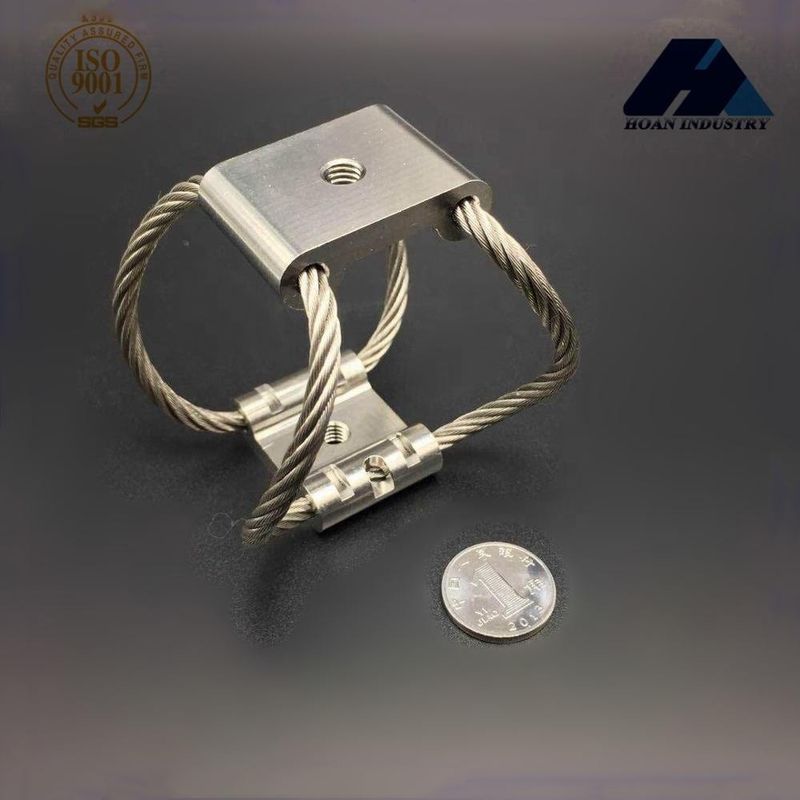

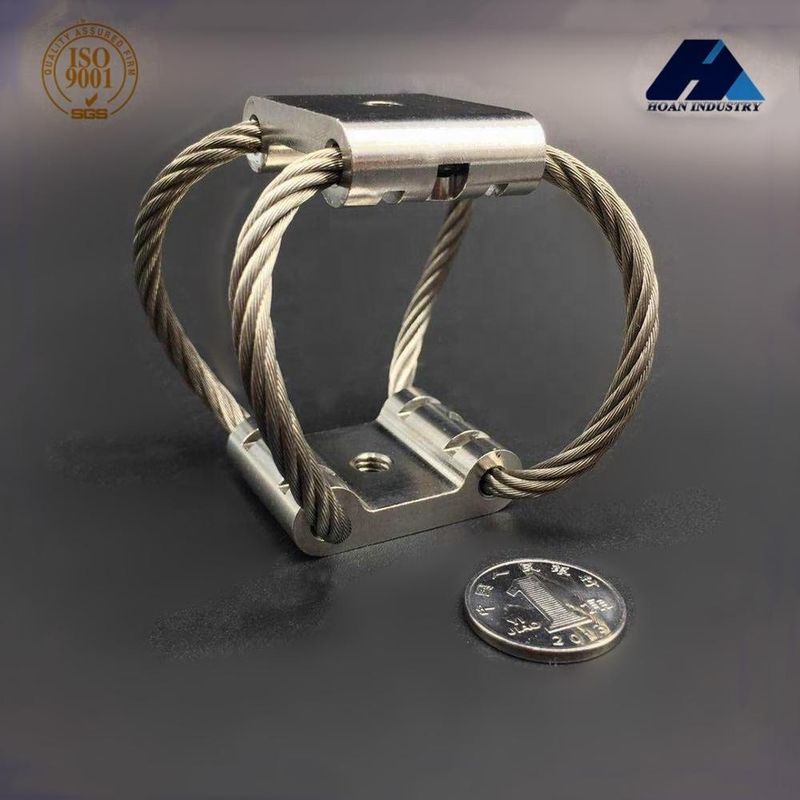

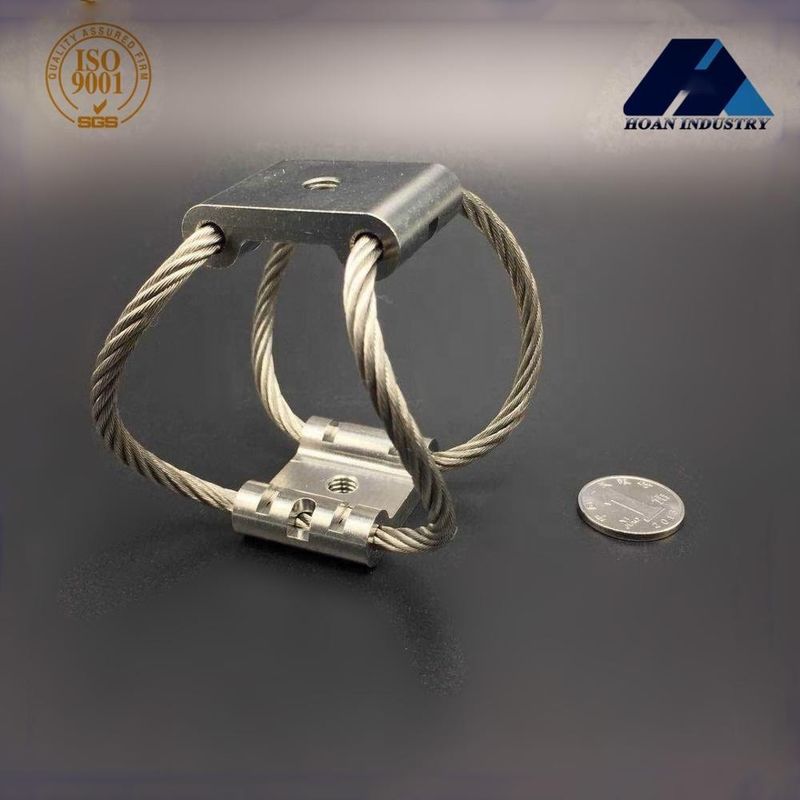

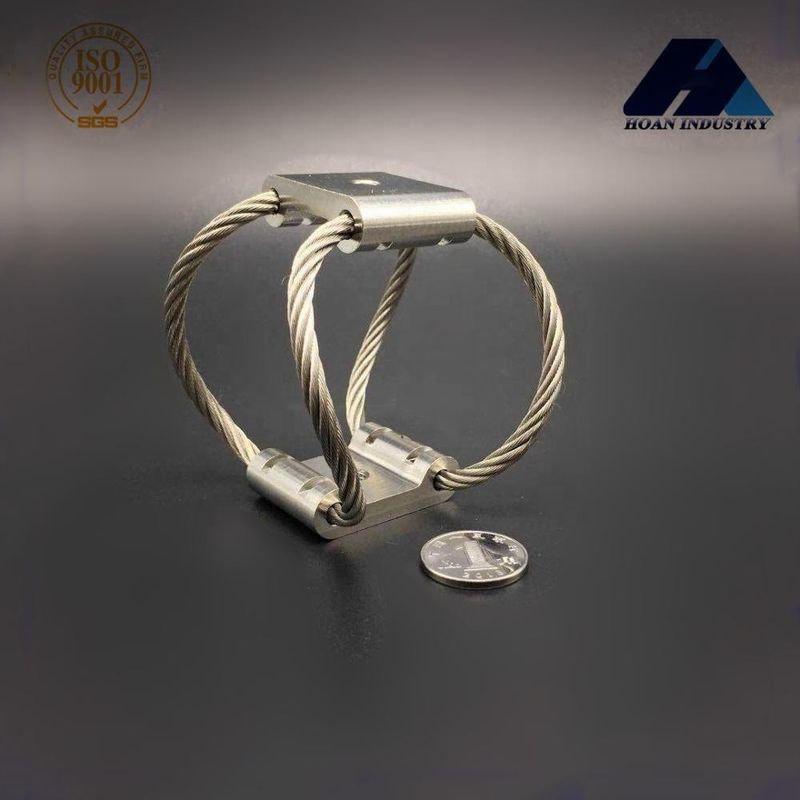

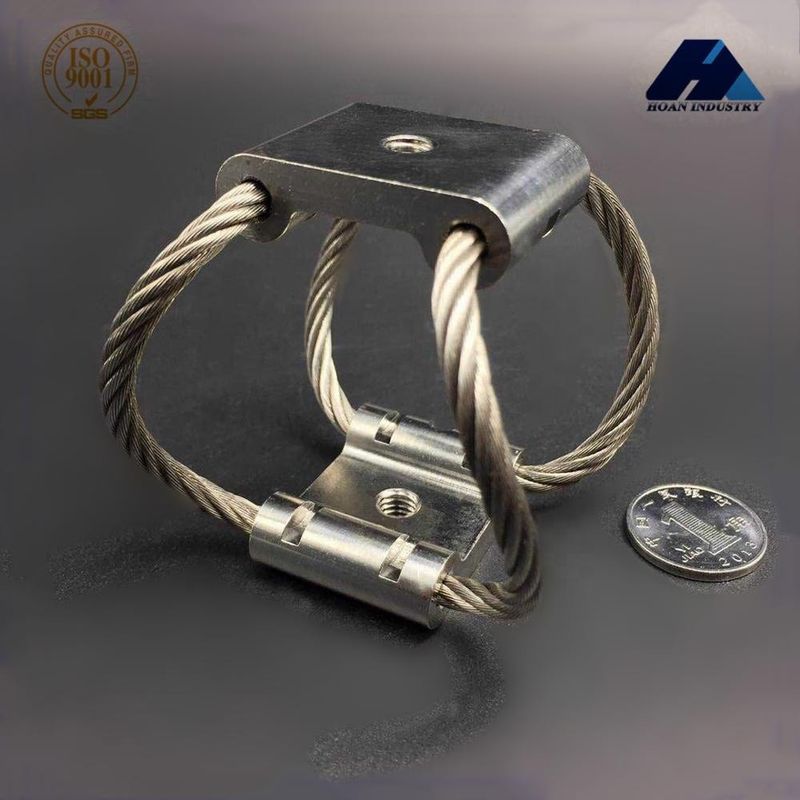

The GR5 series camera vibration isolators are made by the 4.0mm diameter wire rope winded in the two mounting bars, which has the max static load from 16N (1.63kg) to 80N (8.16kg). With stainless steel material, the GR5 series isolators have perfect performance of water-proof, anticorrosion as well as durability.



The GR5 Series camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

Technical Parameter
  • Model Number Code Ordering of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 0
  • Structural Diagram of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 1
  • Dimension of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 2
  • Mounting Options of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 3
  • Compression of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 4
  • 45° Compression of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 5
  • Shear/Roll of GR5 Series:Cable Small Shock Isolators Vibration Shock Isolation Solutions 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Main Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments




* Aerial Photography Camera Gimbal Applications Show*

Cable Small Shock Isolators Vibration Shock Isolation Solutions 7



Cable Small Shock Isolators Vibration Shock Isolation Solutions 8



Cable Small Shock Isolators Vibration Shock Isolation Solutions 9



Cable Small Shock Isolators Vibration Shock Isolation Solutions 10



Cable Small Shock Isolators Vibration Shock Isolation Solutions 11



Cable Small Shock Isolators Vibration Shock Isolation Solutions 12



Cable Small Shock Isolators Vibration Shock Isolation Solutions 13





Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
