Heavy Duty Wire Small Shock Isolators Technologies

By building your own Camera Gimbal Drone or using for your helicopter drone cameras, the GR Series will always be your best choice!

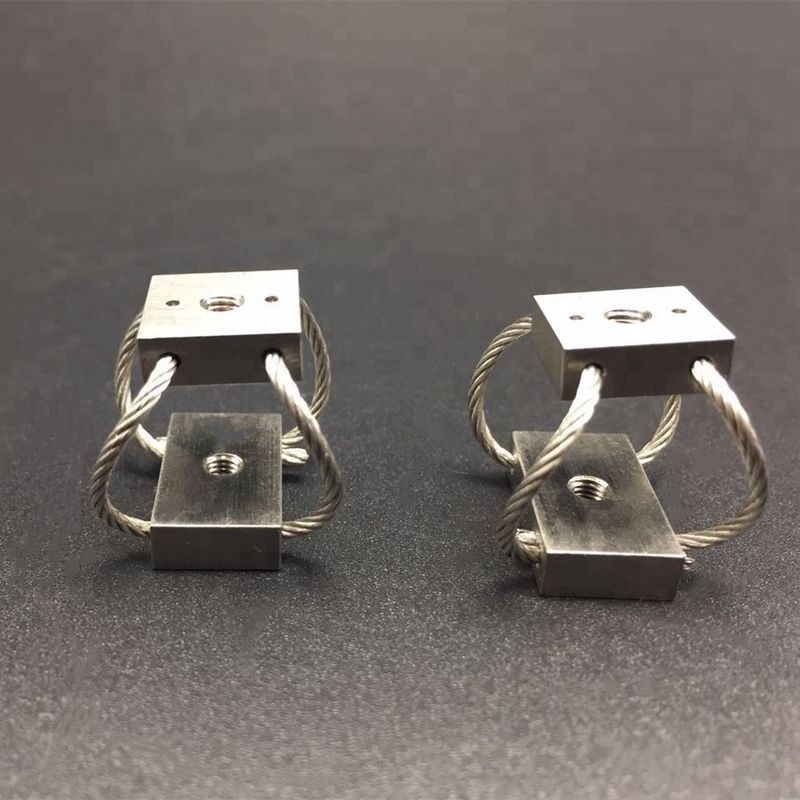

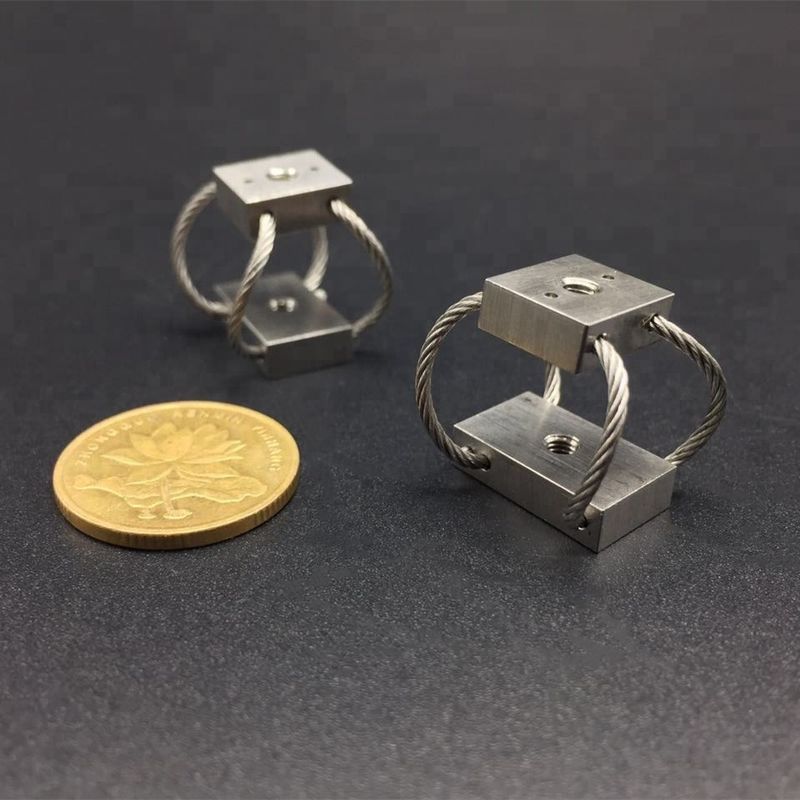

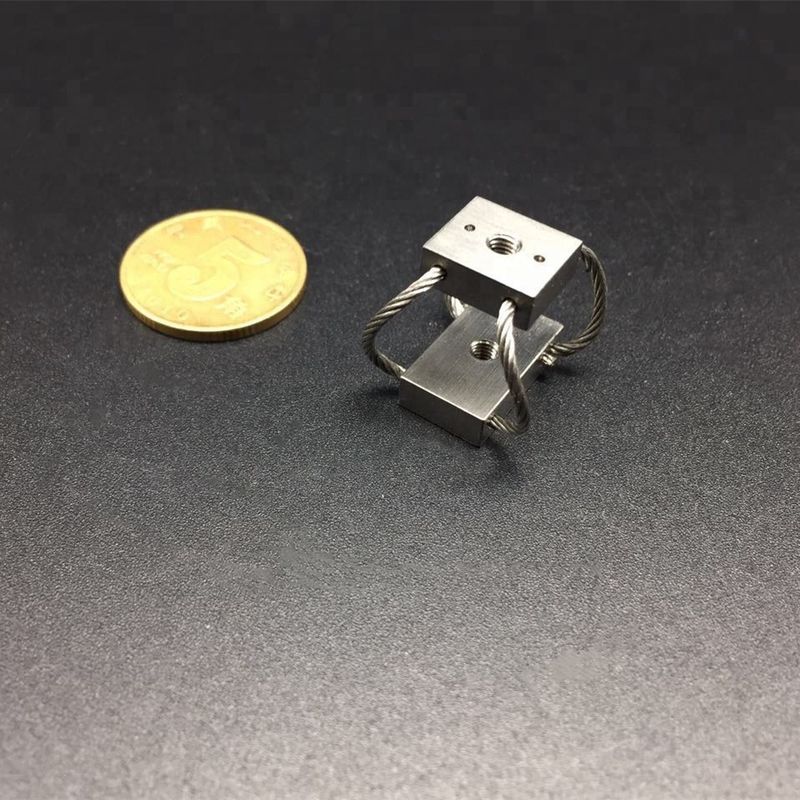

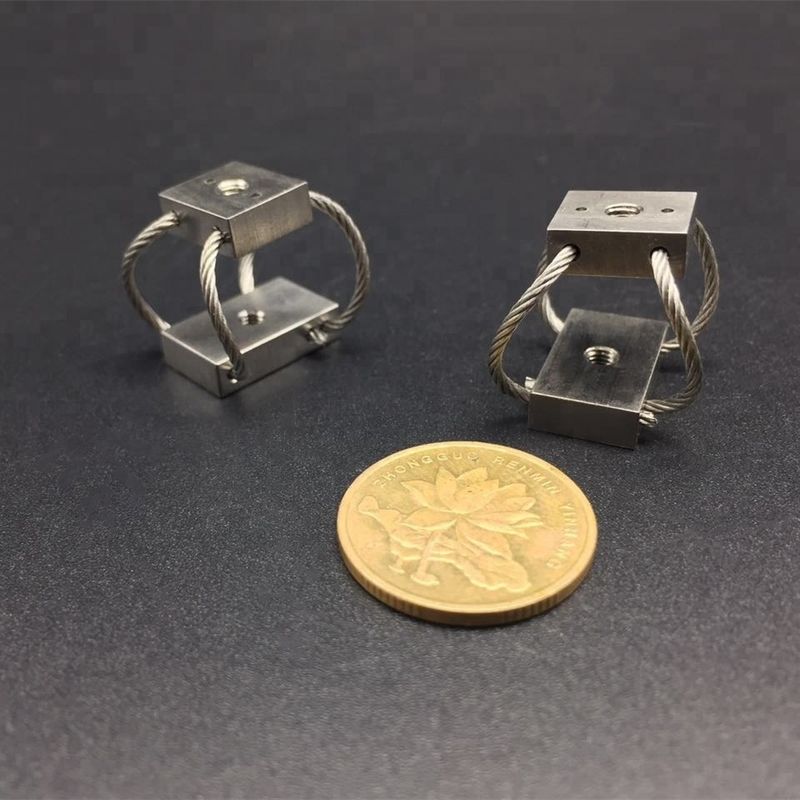

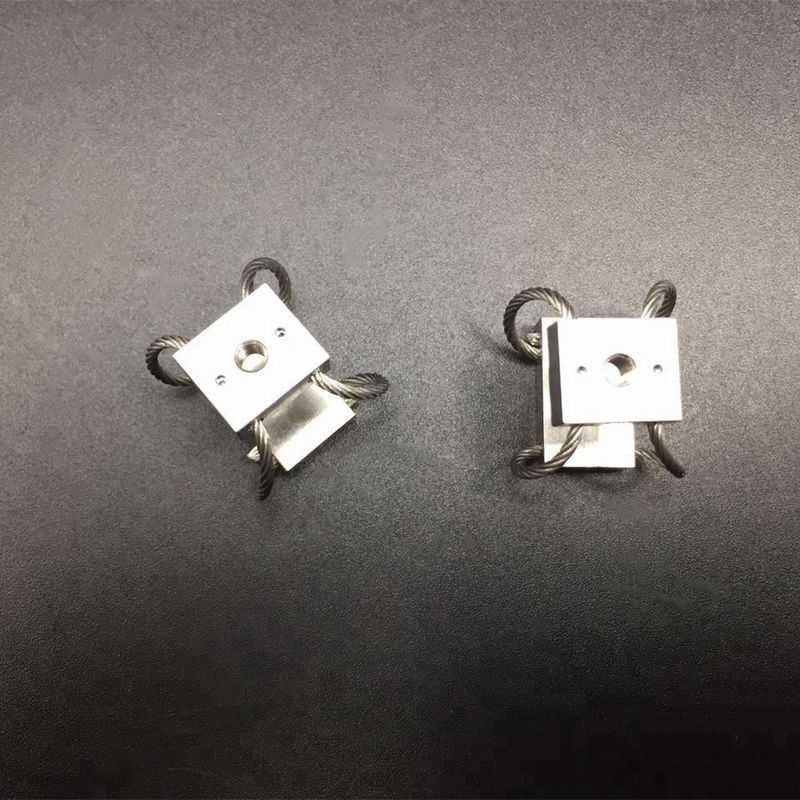

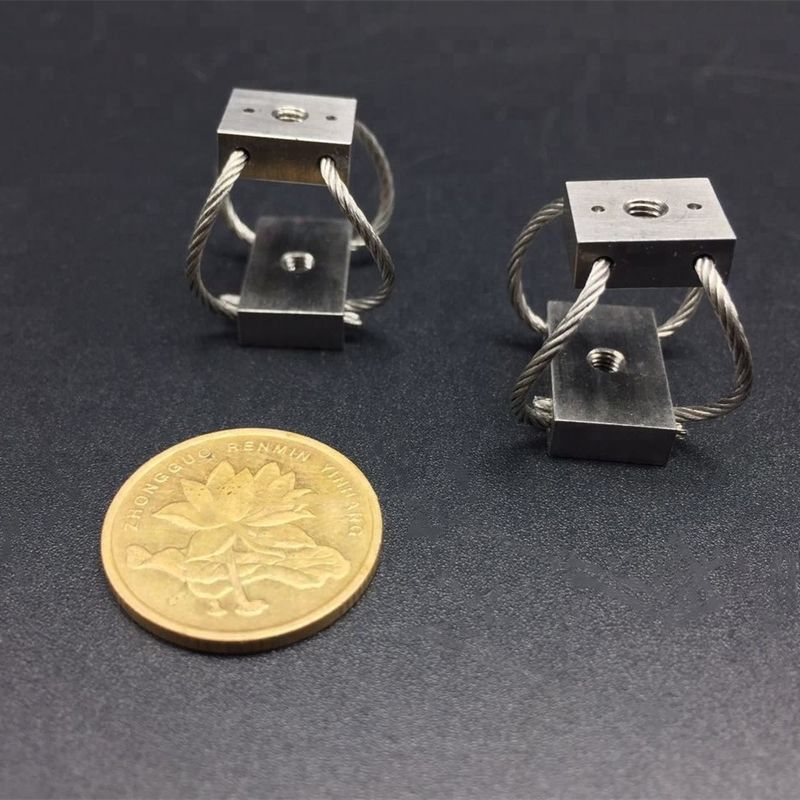

The GR1-1.3D-A camera vibration isolator is one type isolators from the GR1 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

The GR1-1.3D-A helicopter drone camera vibration isolator is made by the 1.2mm diameter wire rope winded in the two mounting bars, with maximum static load of 1.3N (0.13kg).

The GR1-1.3D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR series isolators are used widely in the field of aerial drone systems, helicopter drone gimbal, video project, drone shooting, UAV camera and camera stabilizer, etc.

• Model Number Code Ordering of GR1-1.3D-A:
• Structural Diagram of GR1-1.3D-A:
• Dimension of GR1-1.3D-A:
• Mounting Options of GR1-1.3D-A:
• Compression of GR1-1.3D-A:
• 45° Compression of GR1-1.3D-A:
• Shear/Roll of GR1-1.3D-A:

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...
