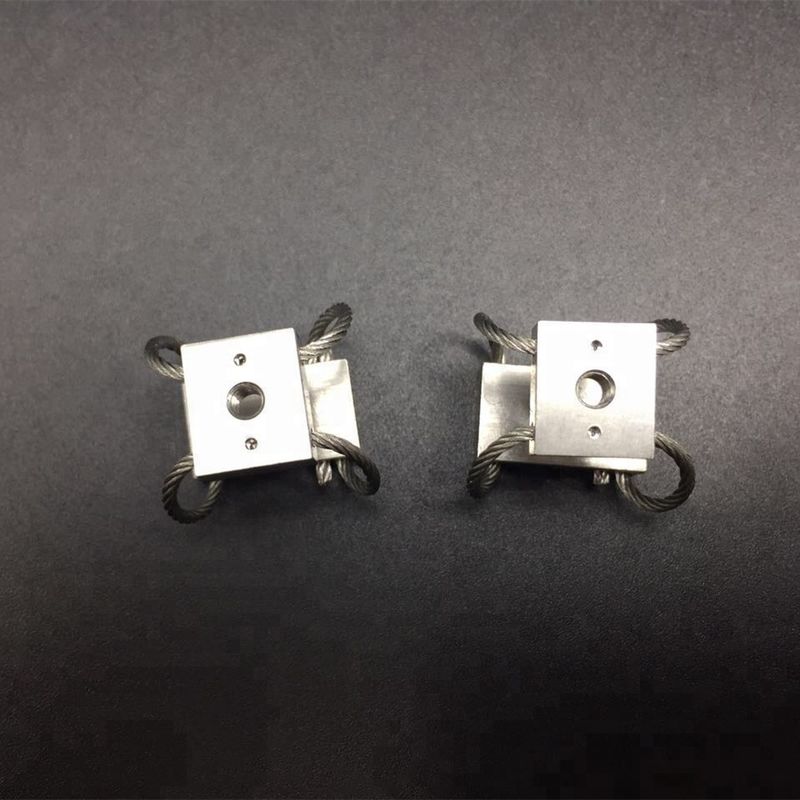

Mount Small Shock Isolators Vibration Isolation

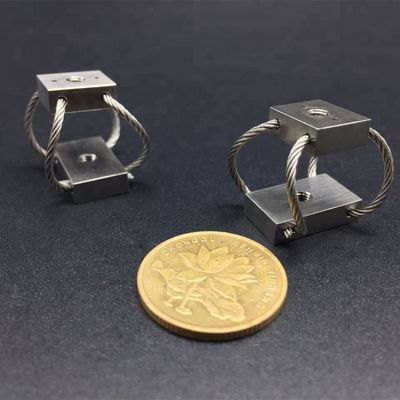

Mount Small Shock Isolators Vibration Isolation

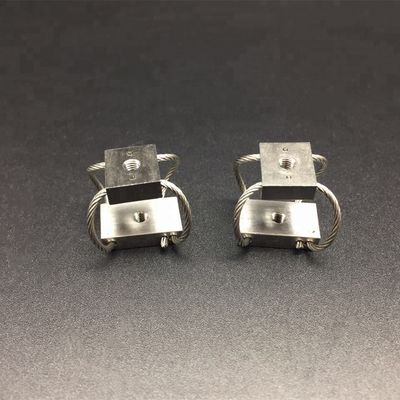

Mount Small Shock Isolators Vibration Isolation

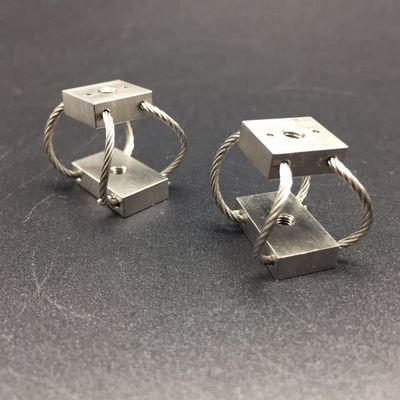

Mount Small Shock Isolators Vibration Isolation

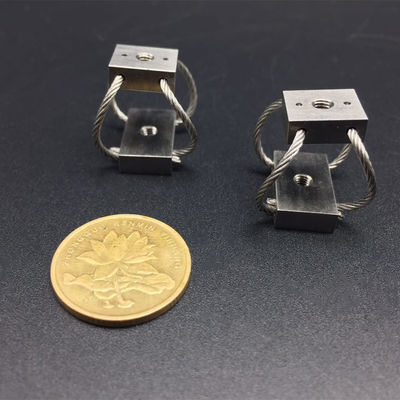

Mount Small Shock Isolators Vibration Isolation
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015 Certificate
Model Number: GR1-2.4D-A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $12.50/pieces 4-99 pieces
Contact Now
Detailed Product Description
Material: Stainless Steel Or Aluminium Application: Aerial, Photography, Helicopter, Drone, UAV Camera, Gimbal
Highlight:

Small Shock isolation

,

Wire Rope Mount

,

Mount Small Shock Isolators

Hot Sale Helicopter Drone Aerial Photography UAV Camera Gimbal Vibration Shock Control GR1-2.4D-A Camera Vibration Isola

Product Description

By building your own Camera Gimbal Drone or using for your Helicopter Drone Cameras, the GR Series camera vibration isolators is your best choice!



The GR1-2.4D-A helicopter drone camera vibration isolator is one type isolators from the GR1 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.



The GR1-2.4D-A helicopter drone camera vibration isolator is made by the 1.2mm diameter wire rope winded in the two mounting bars, with maximum static load of 2.4N (0.24kg).



The GR1-2.4D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

Technical Parameter
  • Model Number Code Ordering of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 0
  • Structural Diagram of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 1
  • Dimension of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 2
  • Mounting Options of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 3
  • Compression of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 4
  • 45° Compression of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 5
  • Shear/Roll of GR1-2.4D-A:Mount Small Shock Isolators Vibration Isolation 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

Mount Small Shock Isolators Vibration Isolation 7



Mount Small Shock Isolators Vibration Isolation 8



Mount Small Shock Isolators Vibration Isolation 9



Mount Small Shock Isolators Vibration Isolation 10



Mount Small Shock Isolators Vibration Isolation 11



Mount Small Shock Isolators Vibration Isolation 12

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
