Cable Small Shock Isolators Vibration Reduction

By building your own Camera Gimbal Stabilizer, the GR Series camera vibration isolators is your best choice!

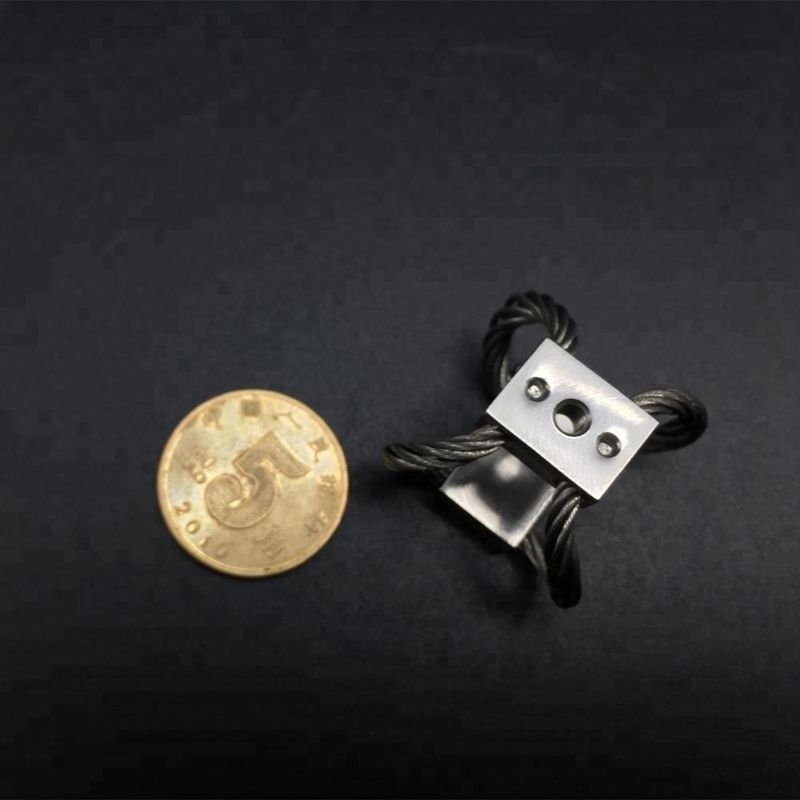

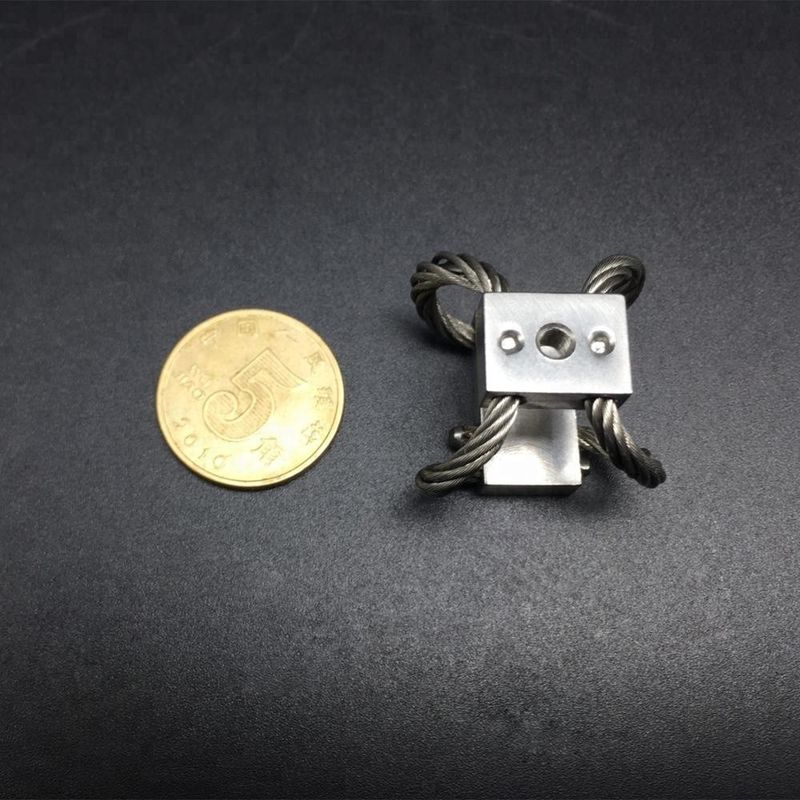

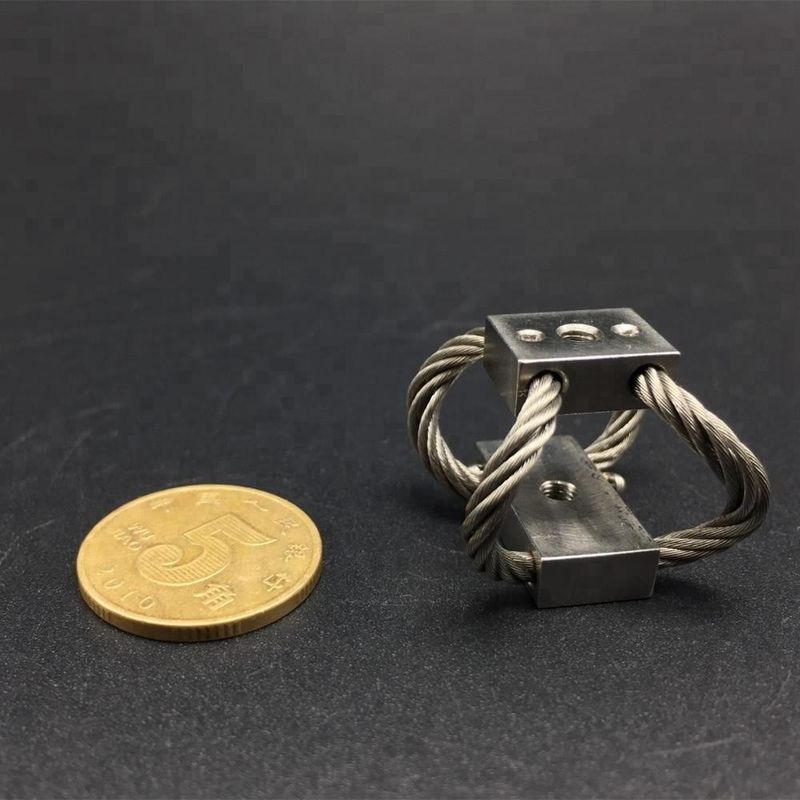

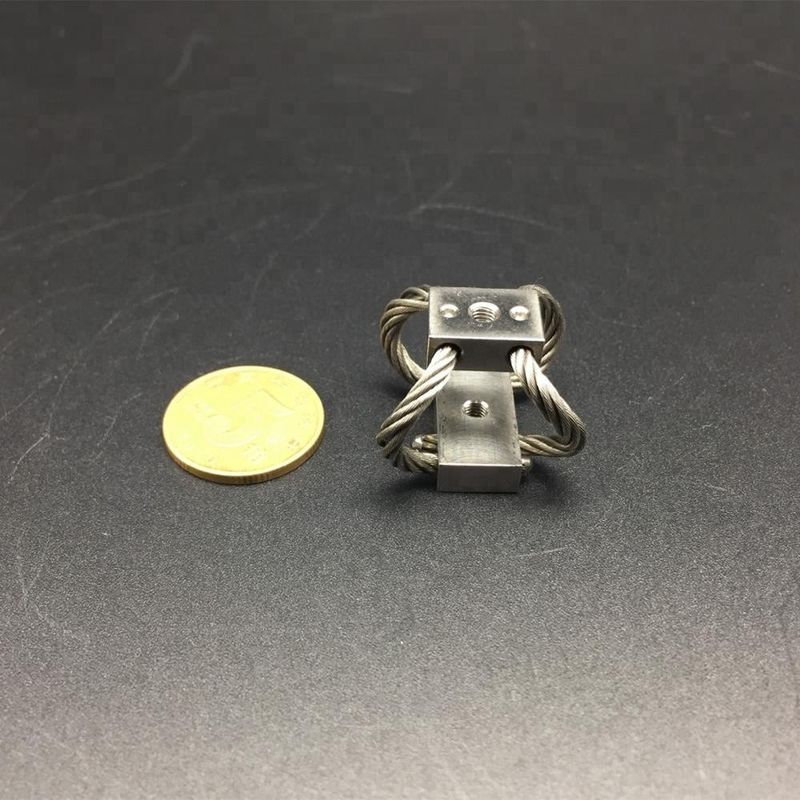

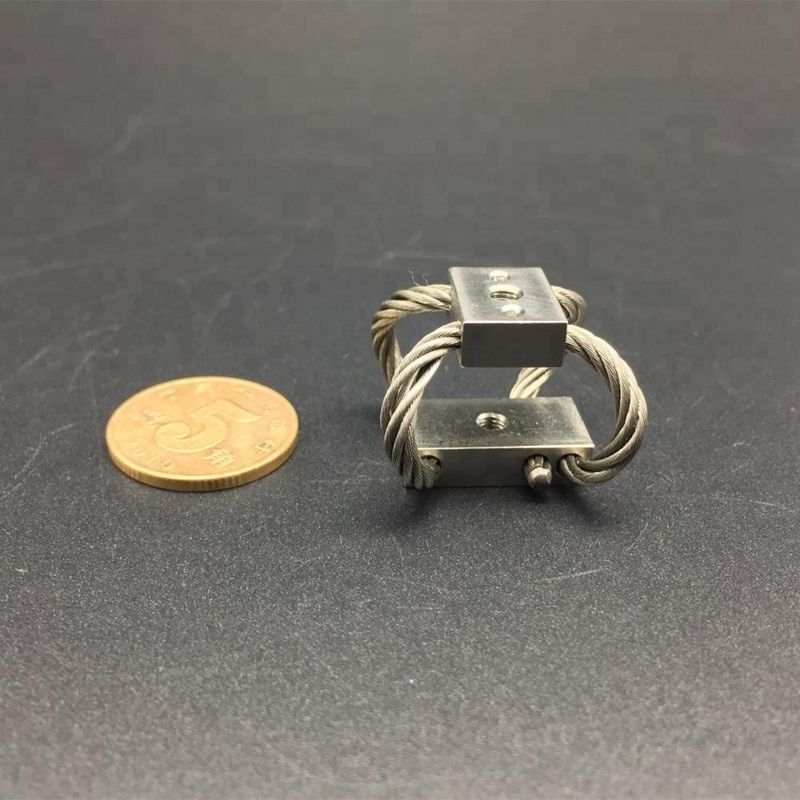

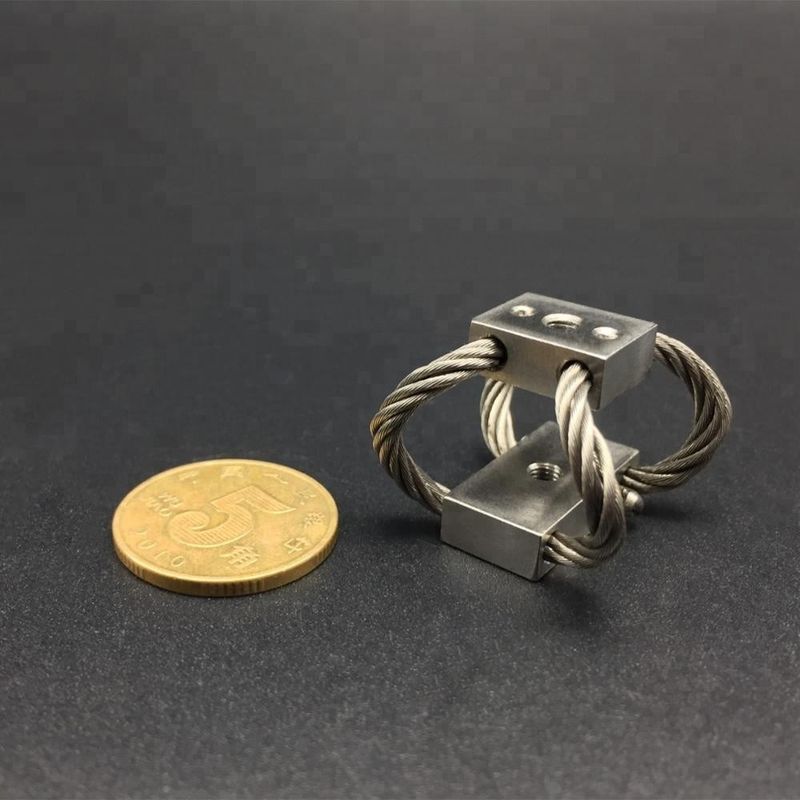

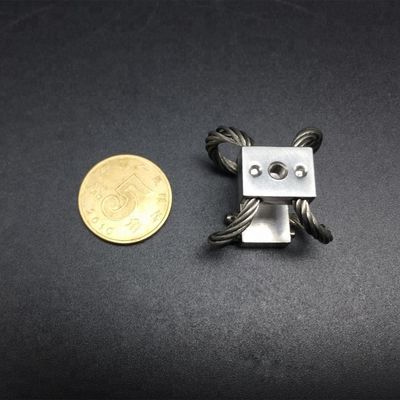

The GR3-18D-A camera vibration isolator is one type camera vibration isolators from the GR3 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

The maximum static load of GR3-18D-A is 18N (1.84kg), which is specially used for helicopter drone with cameras.

The GR3-18D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR series isolators are used widely in the field of RC car aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.

• Model Number Code Ordering of GR3-18D-A:
• Structural Diagram of GR3-18D-A:
• Dimension of GR3-18D-A:
• Mounting Options of GR3-18D-A:
• Compression of GR3-18D-A:
• 45° Compression of GR3-18D-A:
• Shear/Roll of GR3-18D-A:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...
