RC Car Helicopter Drone UAV Camera Gimbal Stabilizer Shock Vibration Protection GR6-67D-A Camera Vibration Isolator

By building your own Camera Gimbal, the GR Series camera vibration isolators is your best choice!

The GR6-67D-A camera vibration isolator is one type camera vibration isolators from the GR6 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

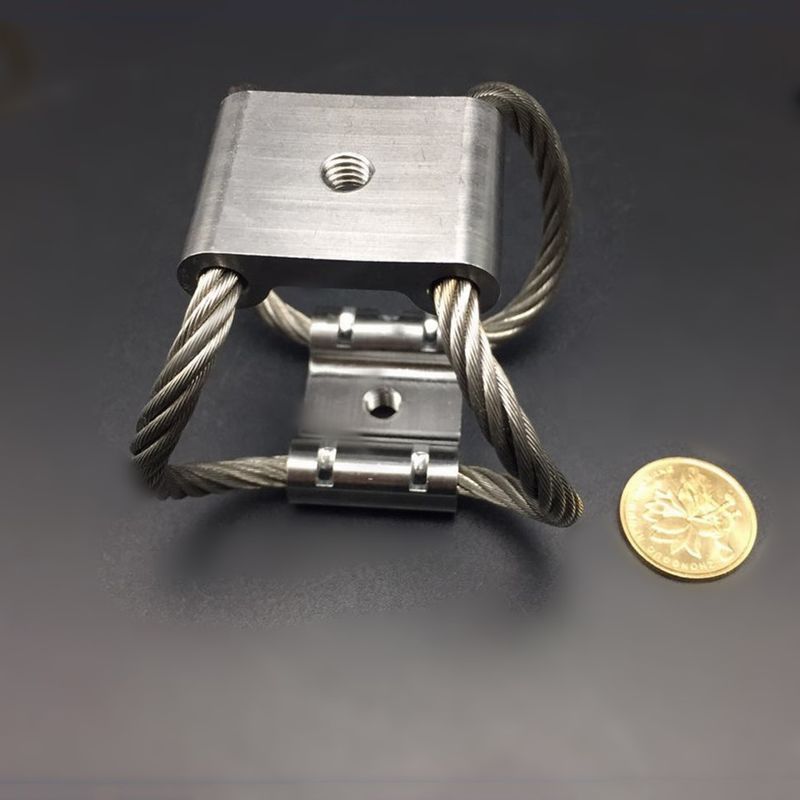

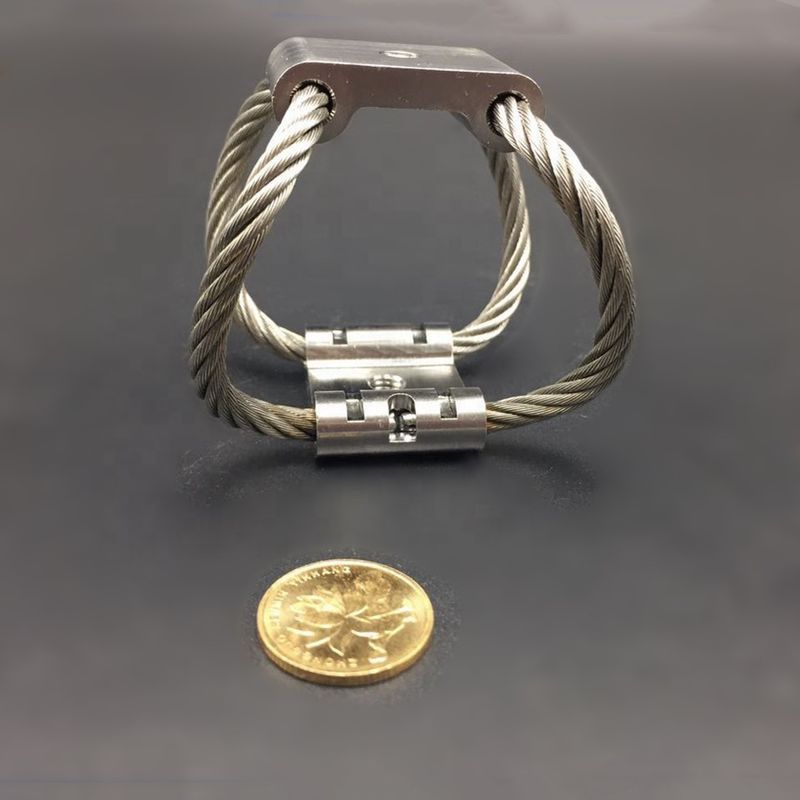

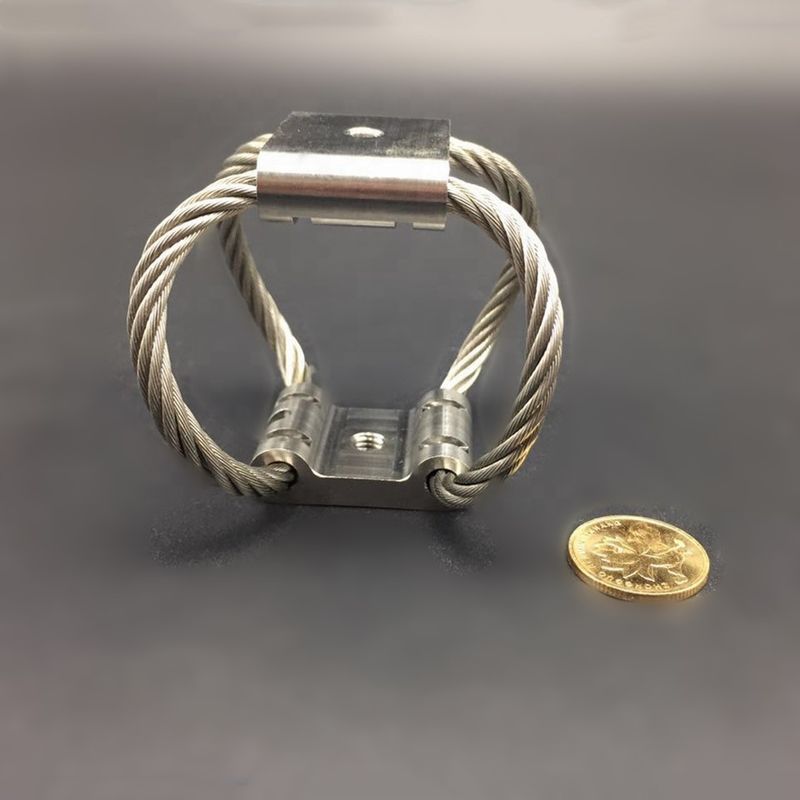

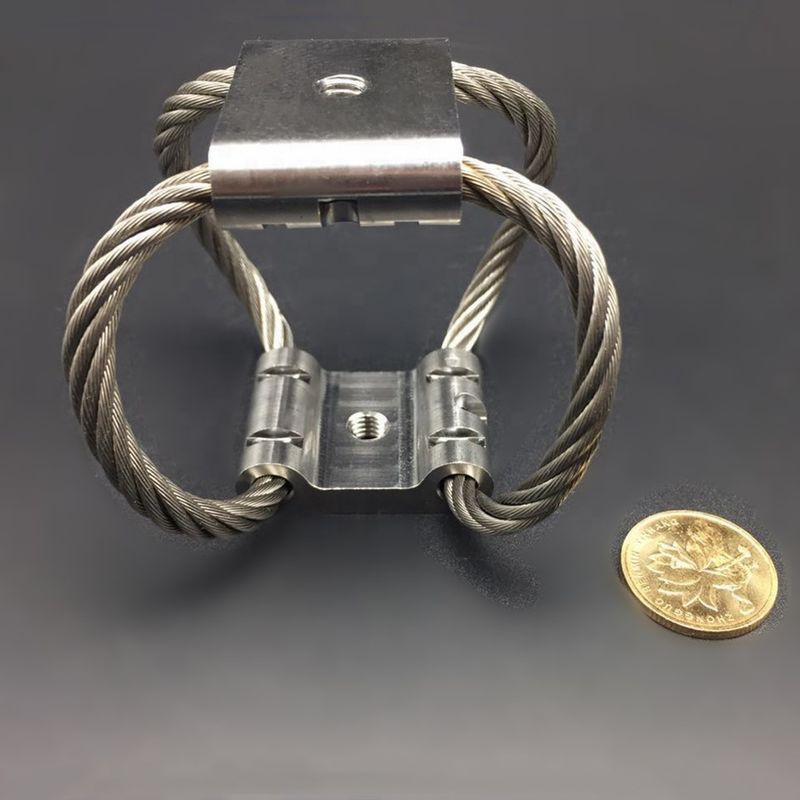

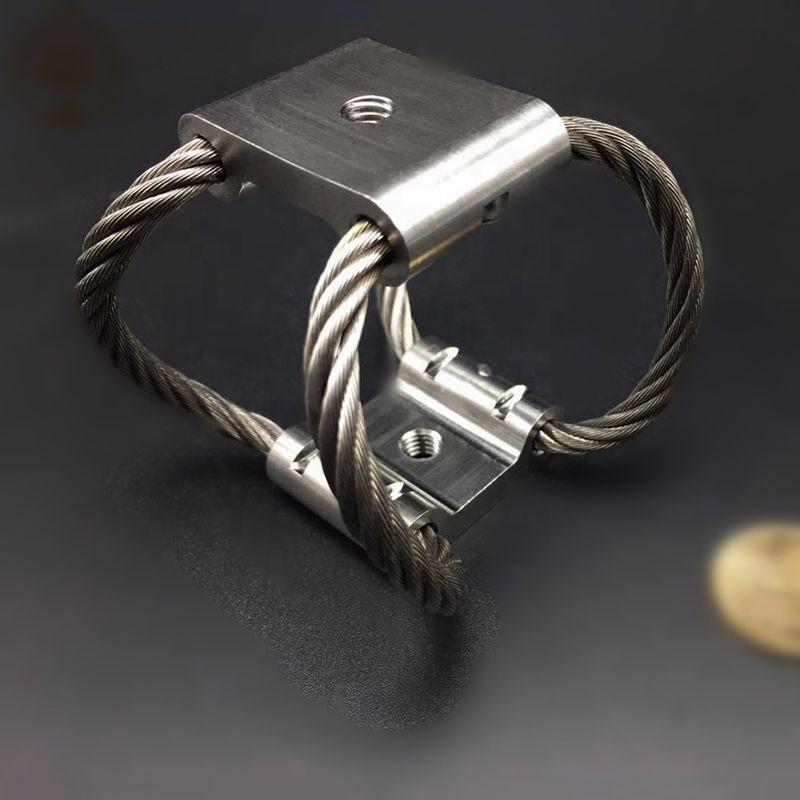

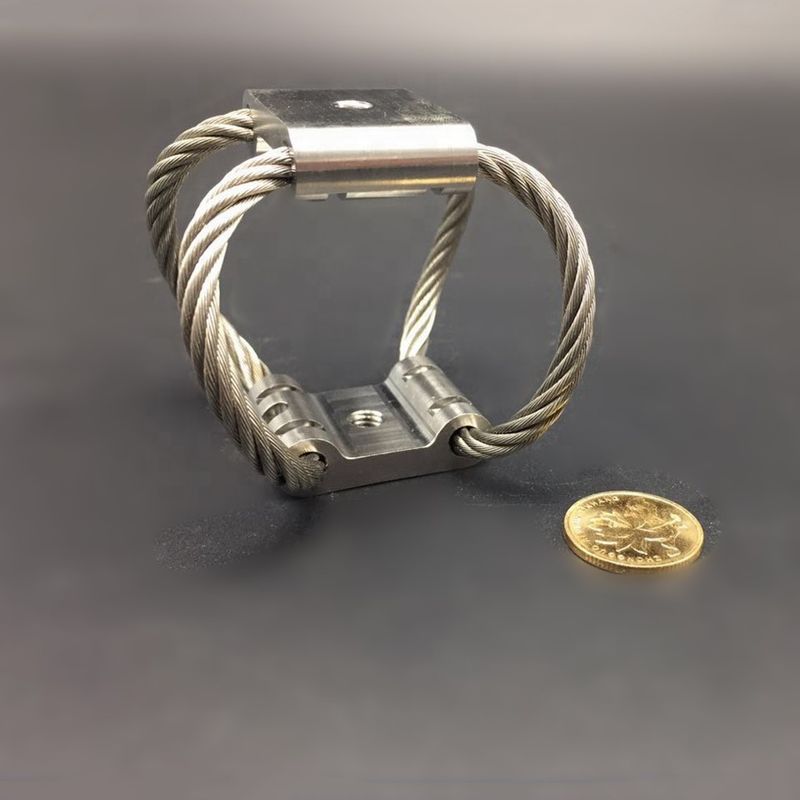

The GR6-67D-A camera vibration isolators are made by the 4.8mm diameter wire rope winded in the two mounting bars, with maximum static load of 67N (6.84kg). With stainless steel material, the GR6-67D-A  model has perfect performance of water-proof, anticorrosion as well as durability.

The GR6-67D-A camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

• Model Number Code Ordering of GR6-67D-A:
• Structural Diagram of GR6-67D-A:
• Dimension of GR6-67D-A:
• Mounting Options of GR6-67D-A:
• Compression of GR6-67D-A:
• 45° Compression of GR6-67D-A:
• Shear/Roll of GR6-67D-A:

* Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...
