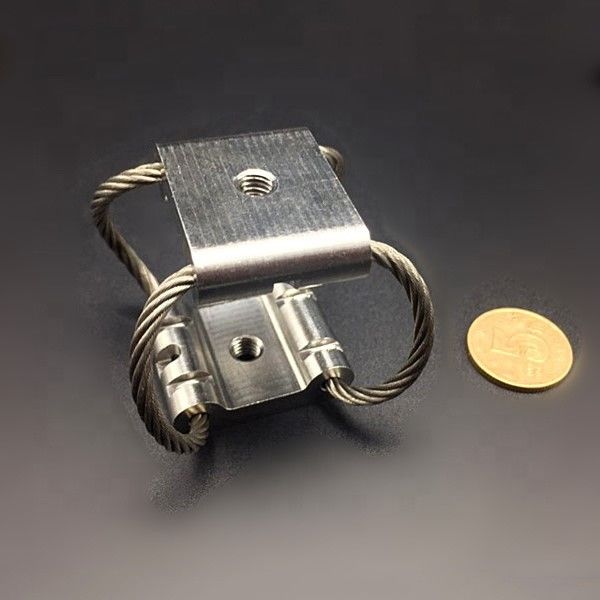

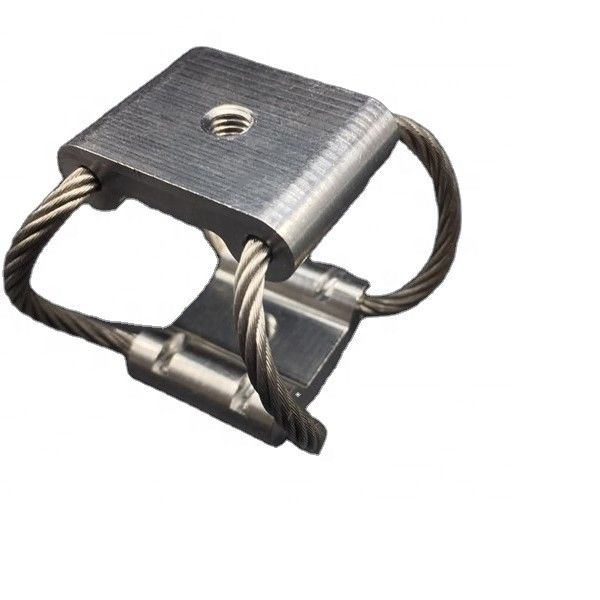

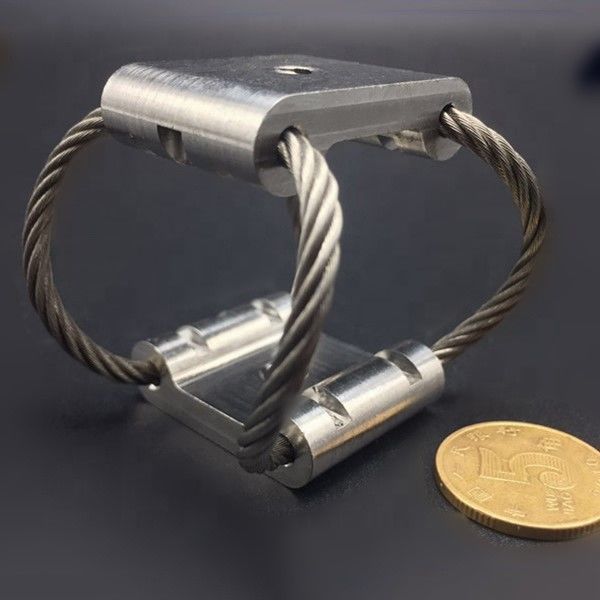

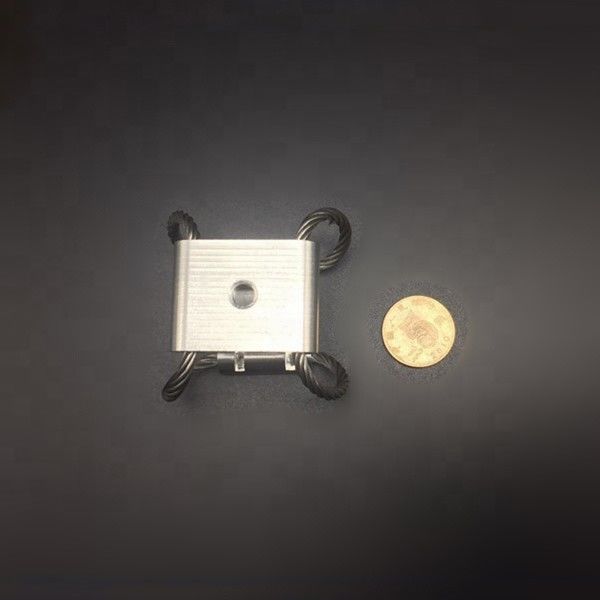

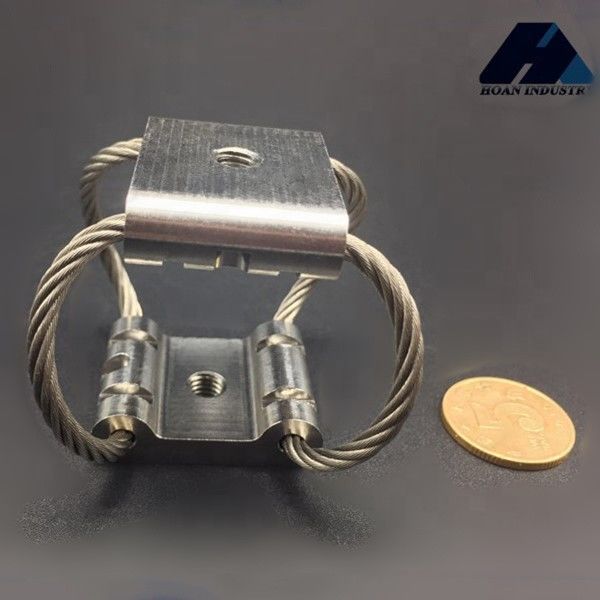

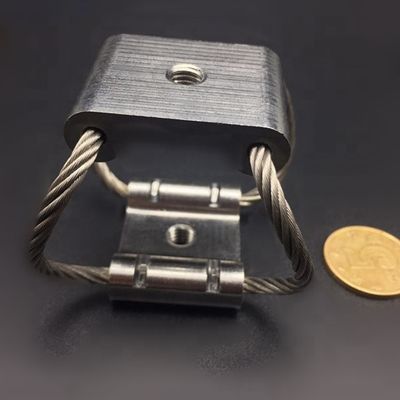

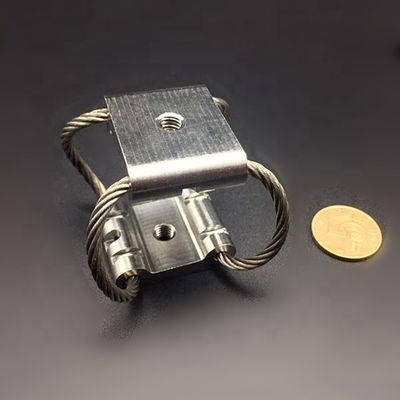

Compact Wire Rope Mount Aerial Cable Damper

Compact Wire Rope Mount Aerial Cable Damper

  • Compact Wire Rope Mount Aerial Cable Damper
  • Compact Wire Rope Mount Aerial Cable Damper
  • Compact Wire Rope Mount Aerial Cable Damper
  • Compact Wire Rope Mount Aerial Cable Damper
  • Compact Wire Rope Mount Aerial Cable Damper
  • Compact Wire Rope Mount Aerial Cable Damper
Compact Wire Rope Mount Aerial Cable Damper
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $22.50/pieces 4-99 pieces
Packaging Details: Standard export packing or as per customers' requirements.
Contact Now
Detailed Product Description
Condition: New Applicable Industries: Energy & Mining
Weight (KG): 0.1 Showroom Location: None
Video Outgoing-inspection: Not Available Machinery Test Report: Provided
Marketing Type: Hot Product 2019 Warranty: 1 Year
Core Components: Gear, Pump Material: Stainless Steel Or Aluminum
Application: RC Car, Helicopter, UAV Camera, Drone, Aerial Photography
Highlight:

compact wire rope

,

compact wire rope mount

,

wire rope mount aerial

RC Car Helicopter Drone UAV Camera Stabilizer Aerial Photography Vibration Shock Control GR4-13D-A Compact Wire Rope Iso

Product Description



By building your own Camera Gimbal Stabilizer, the GR Series camera vibration isolators is your best choice!



The GR4-13D-A compact wire rope isolator is one type camera vibration isolators from the GR4 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.



The GR4-13D-A compact wire rope isolators are made by the 3.2mm diameter stainless steel cable winded in the two mounting bars, with maximum static load of 13N (1.33kg). With stainless steel material, the GR4-13D-A model has perfect performance of water-proof, anticorrosion as well as durability.



The GR4-13D-A compact wire rope isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



Nowadays, the GR series isolators are used widely in the field of RC car, drone stabilizer, helicopter, camera gimbal, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.

Technical Parameter
  • Model Number Code Ordering of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 0
  • Structural Diagram of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 1
  • Dimension of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 2
  • Mounting Options of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 3
  • Compression of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 4
  • 45° Compression of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 5
  • Shear/Roll of GR4-13D-A:Compact Wire Rope Mount Aerial Cable Damper 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments





* Application Show *

Compact Wire Rope Mount Aerial Cable Damper 7



Compact Wire Rope Mount Aerial Cable Damper 8



Compact Wire Rope Mount Aerial Cable Damper 9



Compact Wire Rope Mount Aerial Cable Damper 10



Compact Wire Rope Mount Aerial Cable Damper 11



Compact Wire Rope Mount Aerial Cable Damper 12



Compact Wire Rope Mount Aerial Cable Damper 13
