Hoan Small Shock Isolators Shock Vibration Mounts
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015
Model Number: GR2-4.9D-A, GR2-4.9D-A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $11.50/pieces 4-99 pieces
Contact Now
Detailed Product Description
Applicable Industries: Energy & Mining Showroom Location: None
Video Outgoing-inspection: Not Available Machinery Test Report: Not Available
Marketing Type: Hot Product 2019 Warranty: 1 Year
Core Components: Design Material: Stainless Steel Or Aluminum
Application: Helicopter, Drone, Camera, Cinema After Warranty Service: Online Support
Local Service Location: None
Highlight:

wire rope shock isolators

,

Hoan Small Shock Isolators

,

Hoan Shock Vibration Mounts

Handmade Aerial Photography UAV Camera Gimbal Shock Protection GR2-4.9D-A Helicopter Drone Cinema Vibration Isolator

Product Description



By building your own Camera Gimbal & using for your Helicopter Drone Cameras, the GR Series cinema vibration isolators is your best choice!



The GR2-4.9D-A cinema vibration isolator is one type camera vibration isolators from the GR2 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

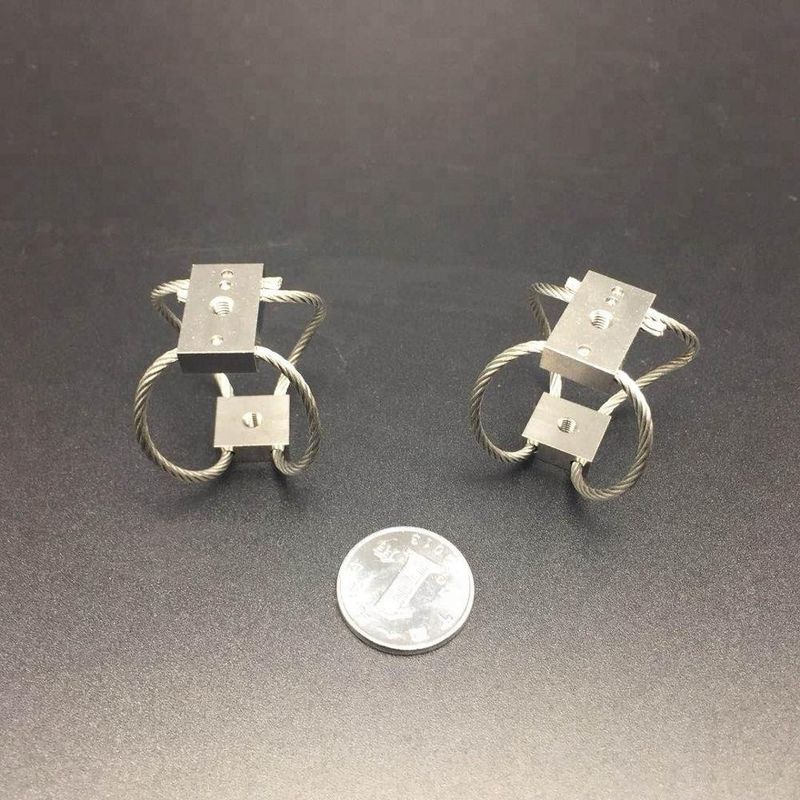

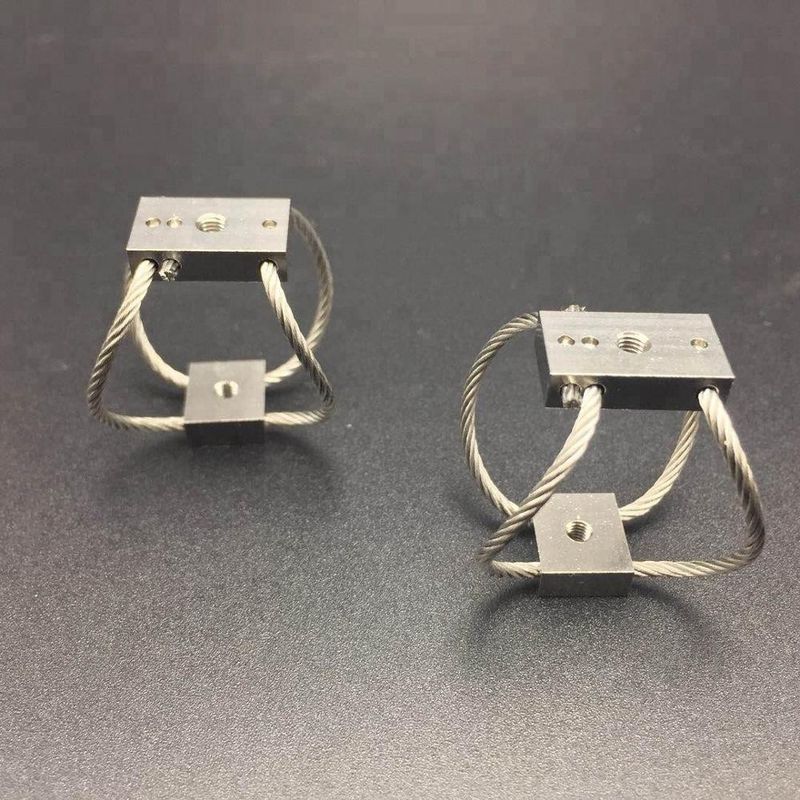

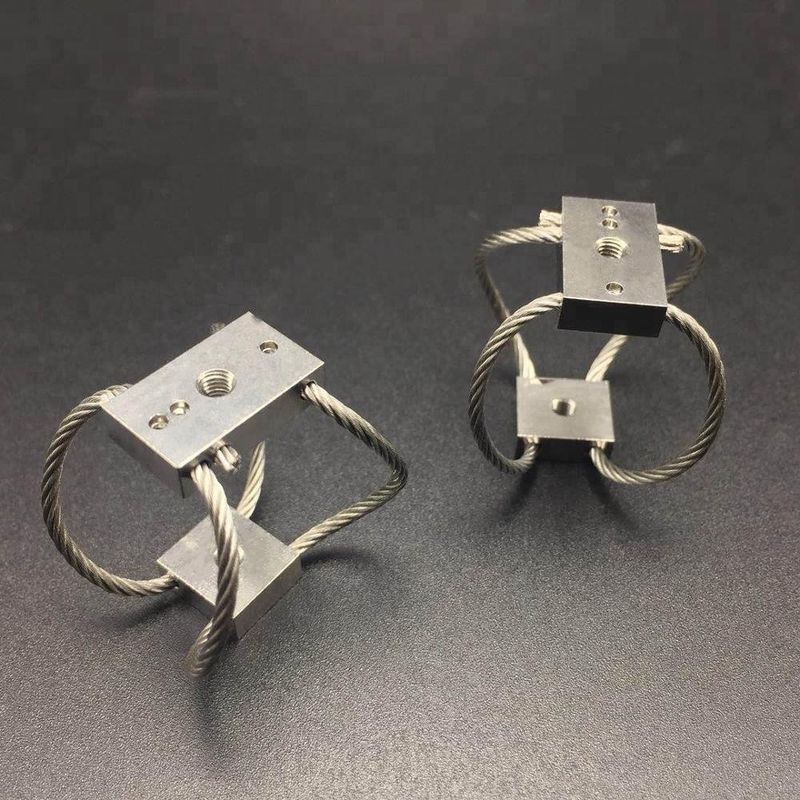

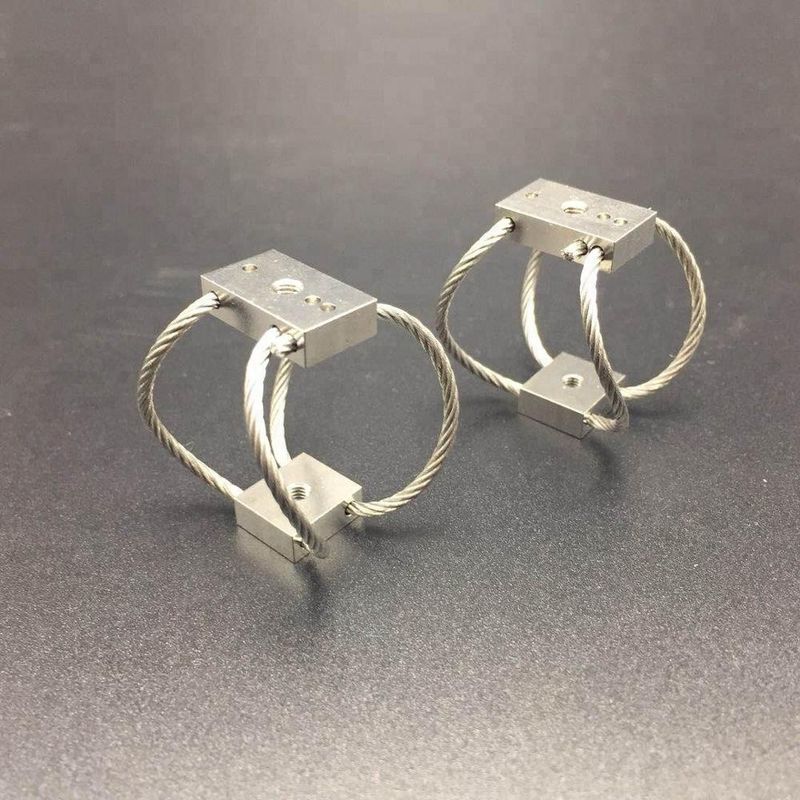

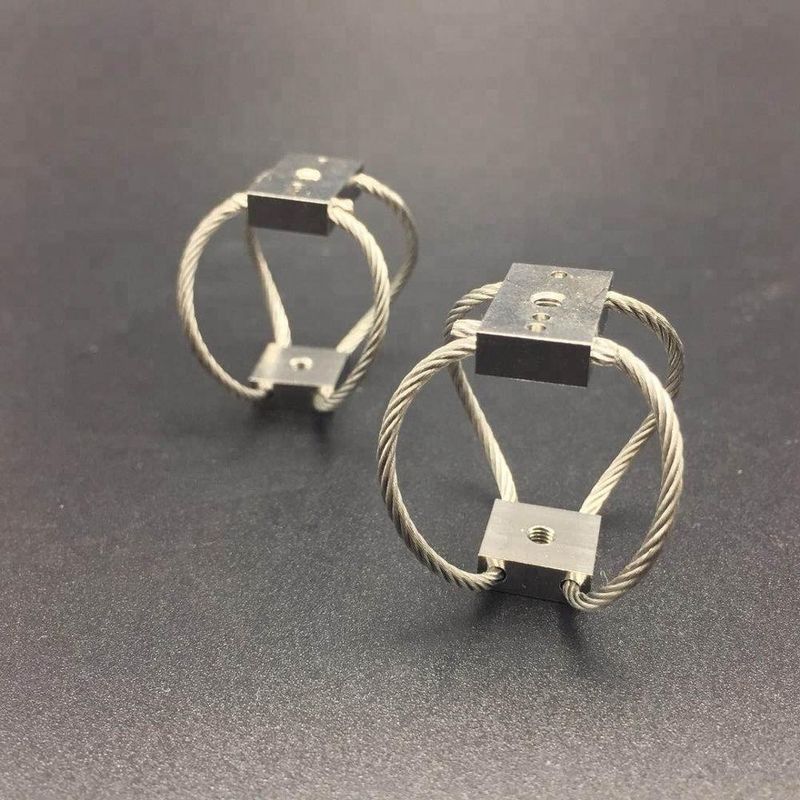

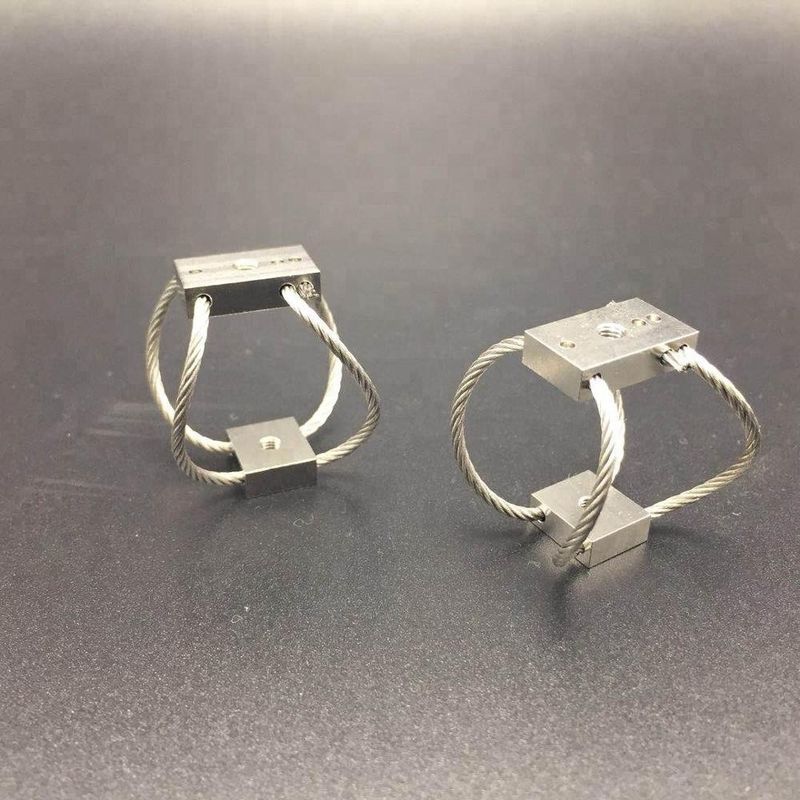

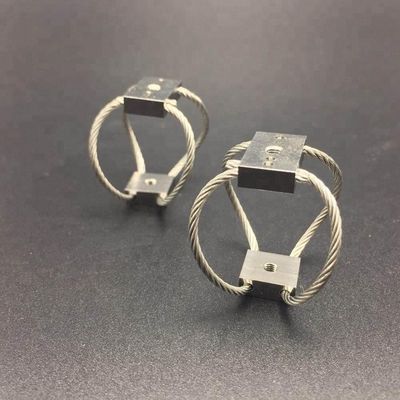

The GR2-4.9D-A is made by the 1.6mm diameter wire rope winded in the two mounting bars, with maximum static load of 4.9N (0.50kg).



The GR2-4.9D-A helicopter drone cinema vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR2-4.9D-A model has perfect performance of water-proof, anticorrosion as well as durability.



Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

Technical Parameter
  • Model Number Code Ordering of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 0
  • Structural Diagram of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 1
  • Dimension of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 2
  • Mounting Options of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 3
  • Compression of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 4
  • 45° Compression of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 5
  • Shear/Roll of GR2-4.9D-A:Hoan Small Shock Isolators Shock Vibration Mounts 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

Hoan Small Shock Isolators Shock Vibration Mounts 7



Hoan Small Shock Isolators Shock Vibration Mounts 8



Hoan Small Shock Isolators Shock Vibration Mounts 9



Hoan Small Shock Isolators Shock Vibration Mounts 10



Hoan Small Shock Isolators Shock Vibration Mounts 11



Hoan Small Shock Isolators Shock Vibration Mounts 12



Hoan Small Shock Isolators Shock Vibration Mounts 13



Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
