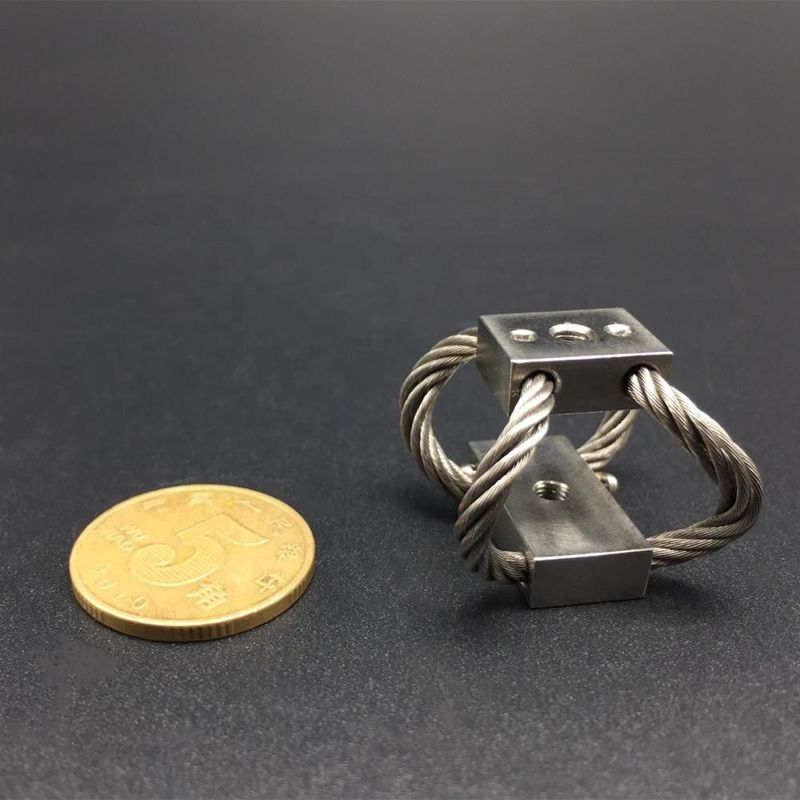

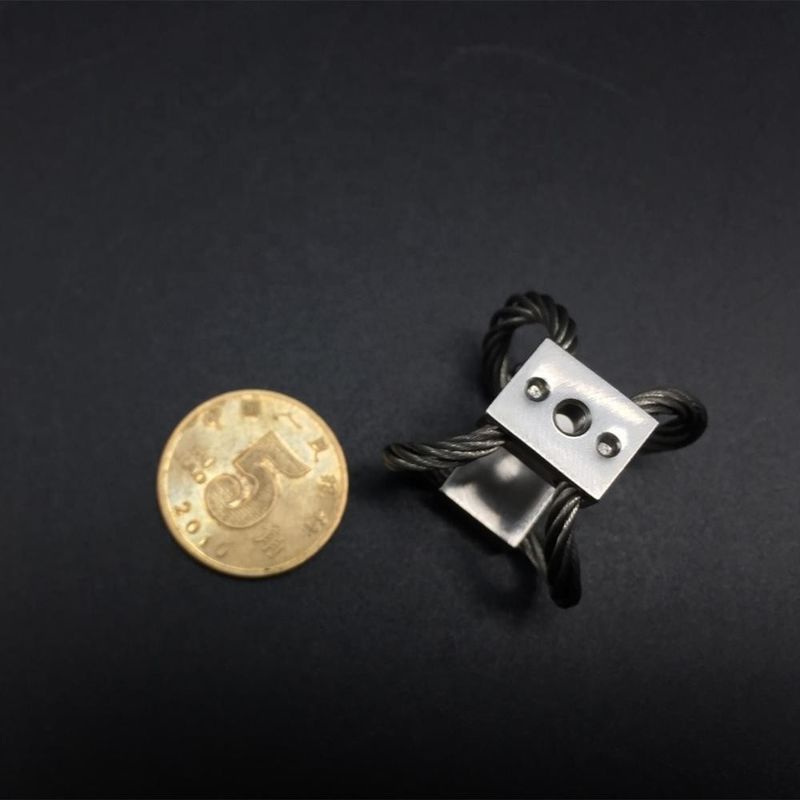

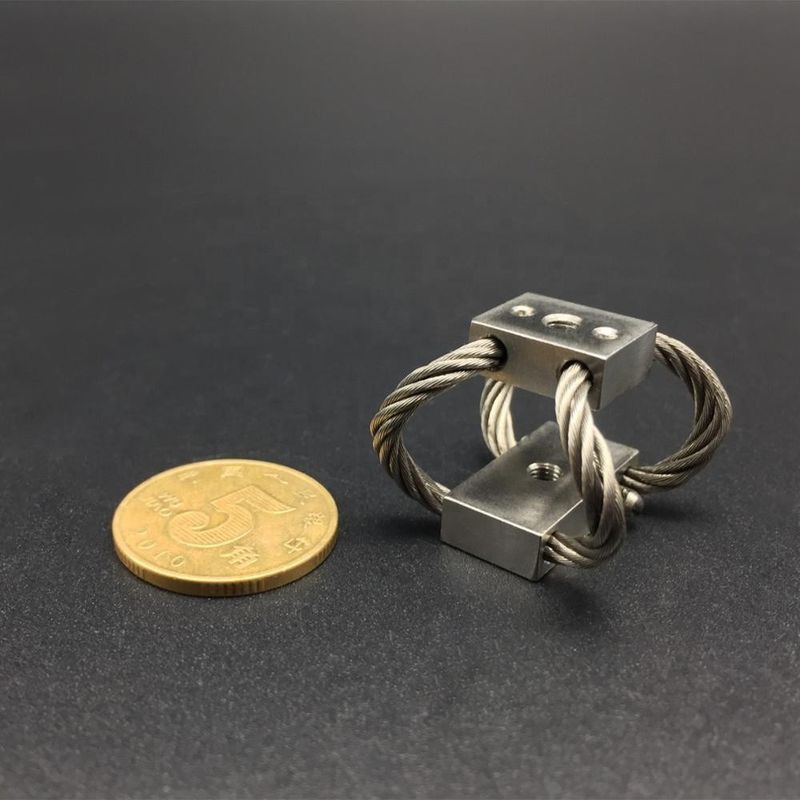

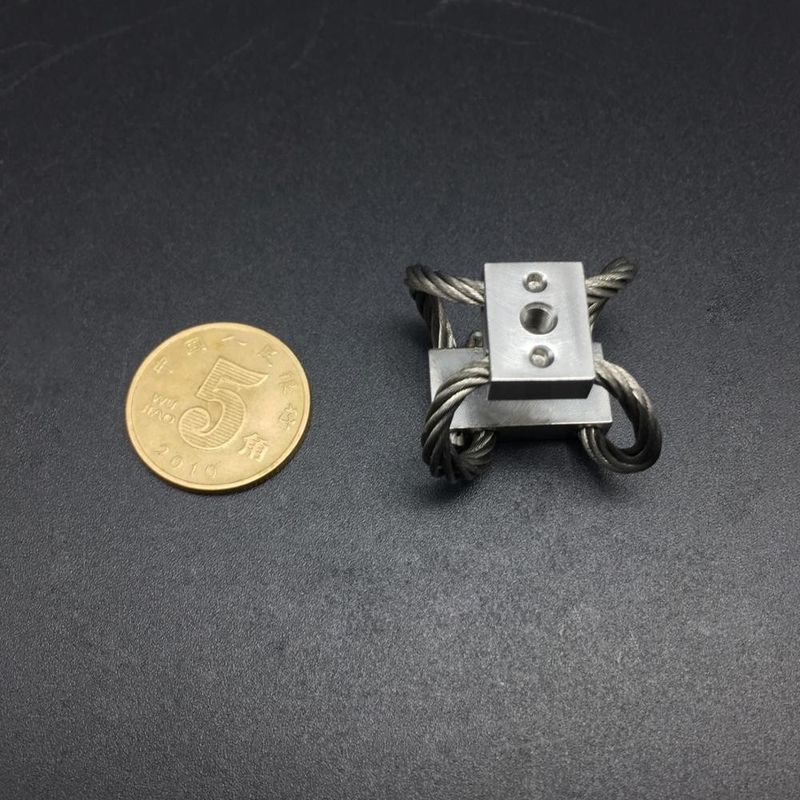

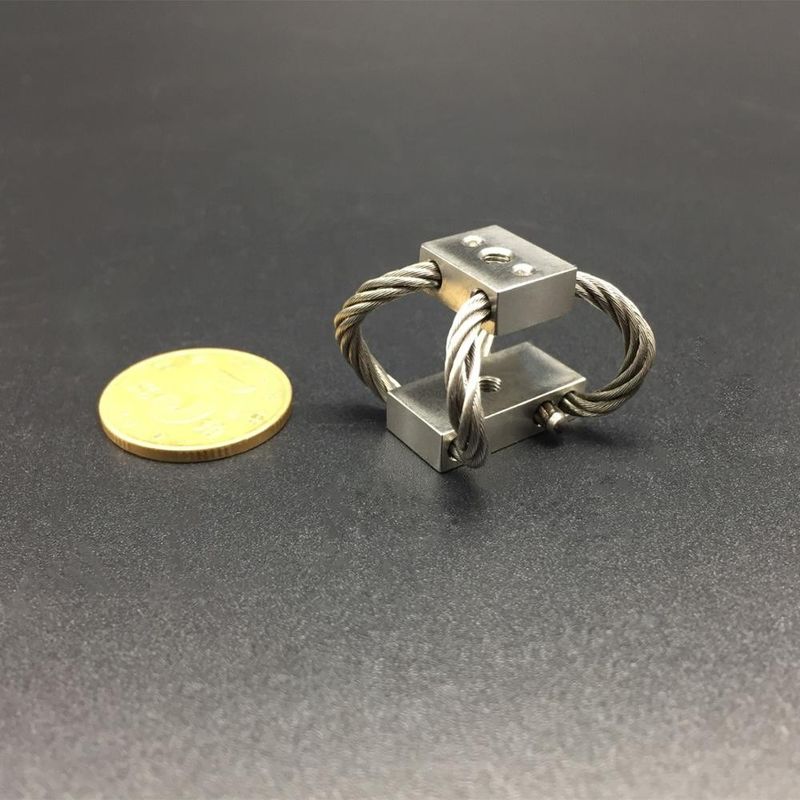

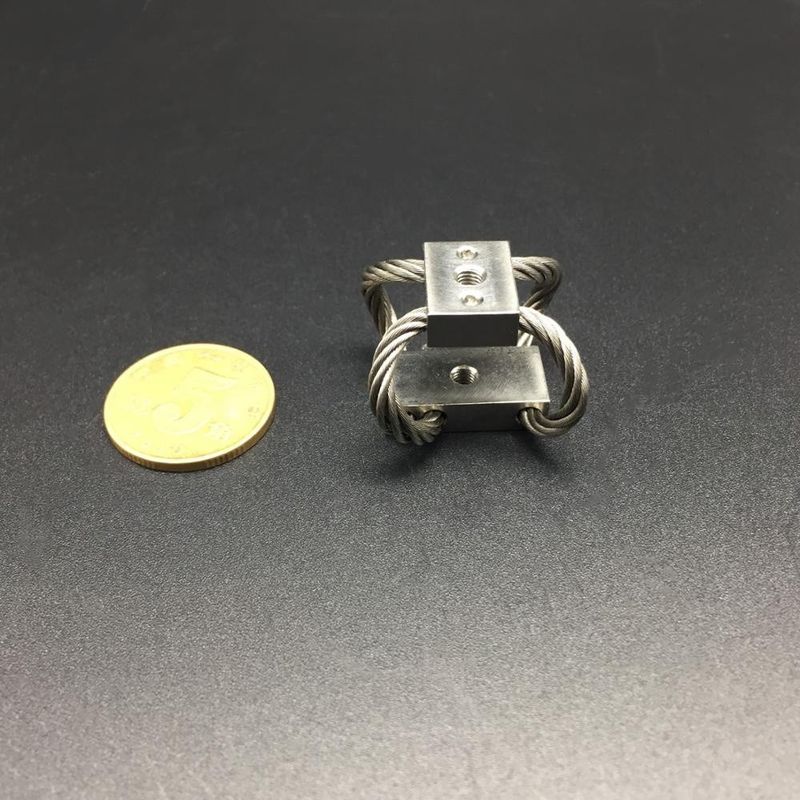

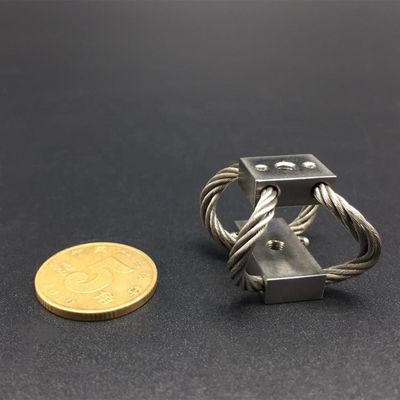

RC Car Drone Helicopter Wire Vibration Isolator Mount

RC Car Drone Helicopter Wire Vibration Isolator Mount

RC Car Drone Helicopter Wire Vibration Isolator Mount
RC Car Drone Helicopter Wire Vibration Isolator Mount
RC Car Drone Helicopter Wire Vibration Isolator Mount
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015 Certificate
Model Number: GR3-22D-A
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $14.50/pieces 4-99 pieces
Packaging Details: Standard export packing or as per customers' requirements.
Contact Now
Detailed Product Description
Material: Stainless Steel Or Aluminium Application: UAV Camera, Drone, RC Car, Drone, Helicopter, Photography
Highlight:

Helicopter wire vibration isolator

,

wire vibration isolator mount

,

vibration isolator wire mount

UAV Camera Drone RC Car Drone Helicopter Photography Accessories Shock Vibration Insulation GR3-22D-A Cinema Vibration I

Product Description

By building your own Camera Drone Gimbal, the GR Series cinema vibration isolators is your best choice!



The GR3-22D-A cinema vibration isolator is one type camera vibration isolators from the GR3 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.



The maximum static load of GR3-22D-A is 22N (2.24kg), which is specially used for helicopter drone with cameras.



With stainless steel material, the GR3-22D-A model has perfect performance of water-proof, anticorrosion as well as durability.



The GR3-22D-A cinema vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



Nowadays, the GR series isolators are used widely in the field of camera drone gimbal, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

Technical Parameter
  • Model Number Code Ordering of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 0
  • Structural Diagram of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 1
  • Dimension of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 2
  • Mounting Options of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 3
  • Compression of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 4
  • 45° Compression of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 5
  • Shear/Roll of GR3-22D-A:RC Car Drone Helicopter Wire Vibration Isolator Mount 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Applications of Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments





* Applications Show *

RC Car Drone Helicopter Wire Vibration Isolator Mount 7



RC Car Drone Helicopter Wire Vibration Isolator Mount 8



RC Car Drone Helicopter Wire Vibration Isolator Mount 9



RC Car Drone Helicopter Wire Vibration Isolator Mount 10



RC Car Drone Helicopter Wire Vibration Isolator Mount 11



RC Car Drone Helicopter Wire Vibration Isolator Mount 12



RC Car Drone Helicopter Wire Vibration Isolator Mount 13

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
