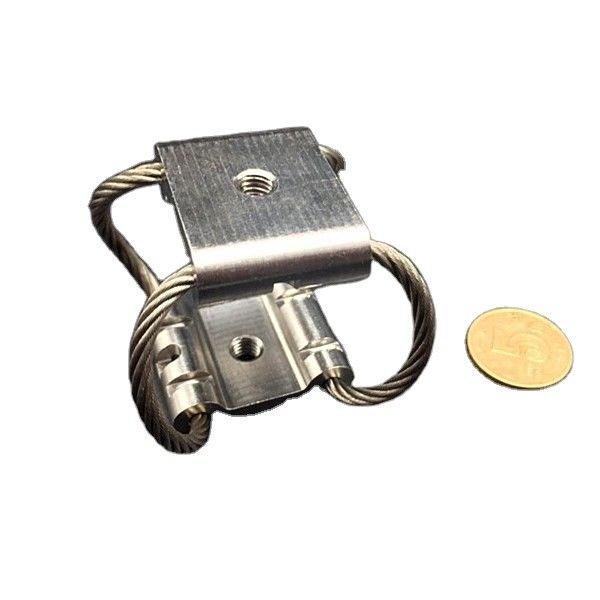

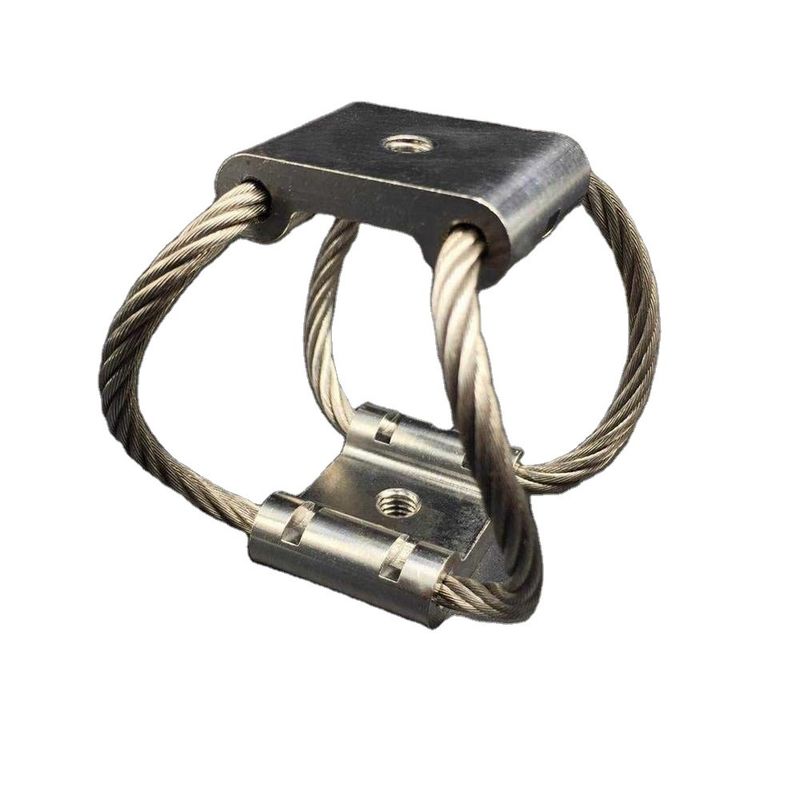

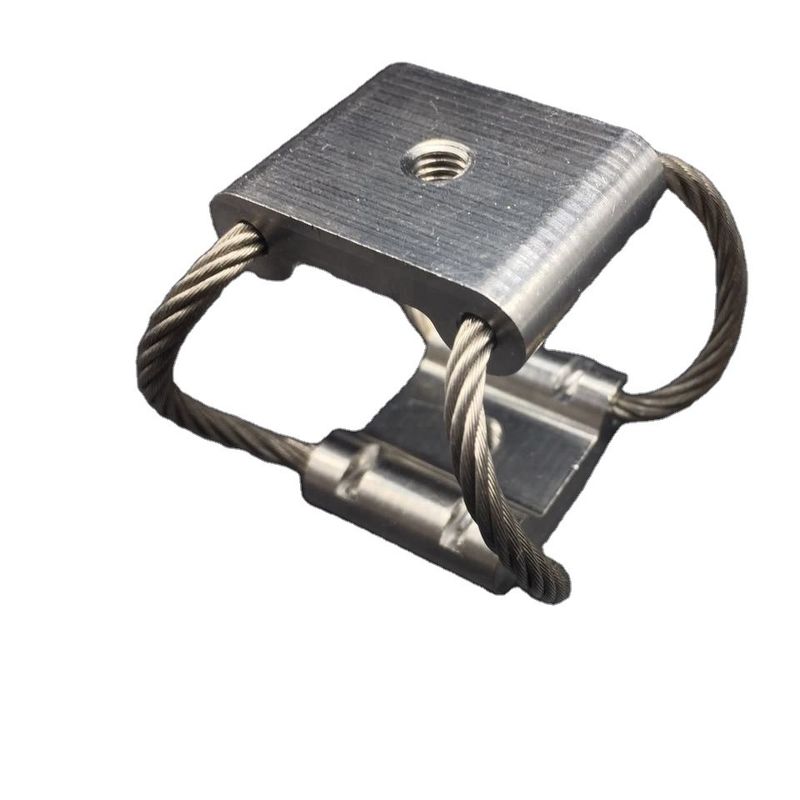

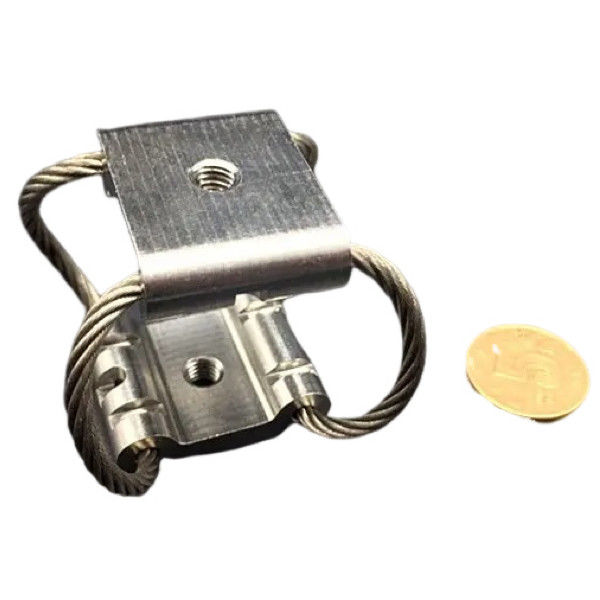

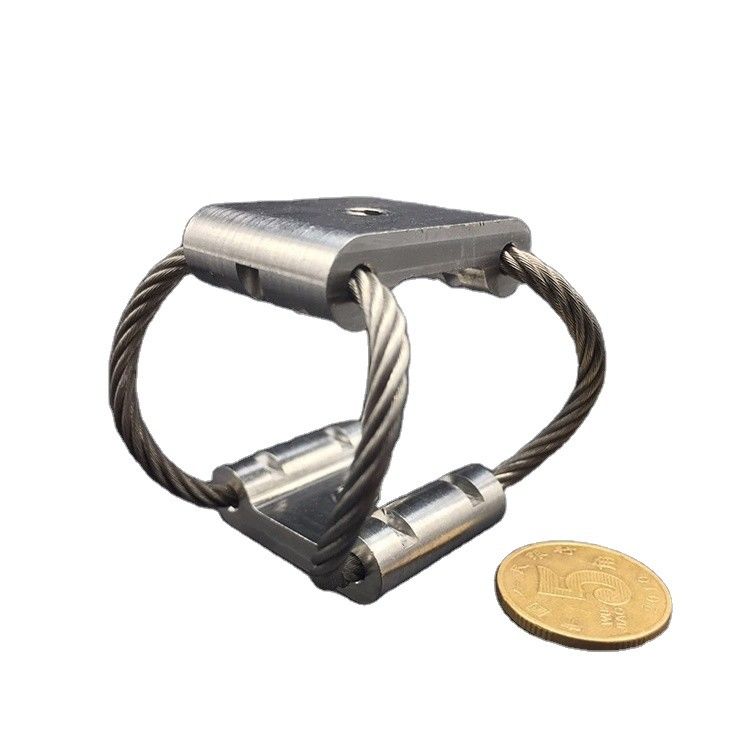

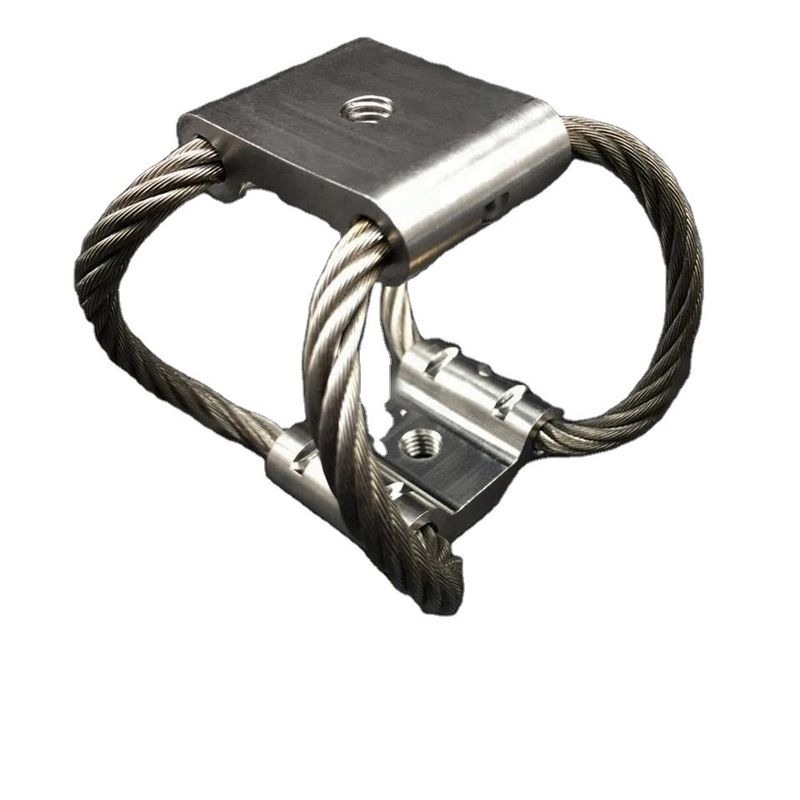

Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control

Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control

  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
  • Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Hoan
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 4 pieces
Price: $11.50/pieces 4-99 pieces
Contact Now
Detailed Product Description
Material: Stainless Steel Or Aluminum Application: Helicopter, Drone, UAV Camera, Photography,

Product Description

By building your own Camera Gimbal & using for your Helicopter Drone Cameras, the GR Series camera vibration isolators is your best choice!



The GR2-4.9D-A camera vibration isolator is one type camera vibration isolators from the GR2 family, which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.



The GR2-4.9D-A is made by the 1.6mm diameter wire rope winded in the two mounting bars, with maximum static load of 4.9N (0.50kg).



The GR2-4.9D-A helicopter drone camera vibration isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce. With stainless steel material, the GR2-4.9D-A model has perfect performance of water-proof, anticorrosion as well as durability.



Nowadays, the GR series isolators are used widely in the field of photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.



Technical Parameter
  • Model Number Code Ordering of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 0
  • Structural Diagram of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 1
  • Dimension of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 2
  • Mounting Options of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 3
  • Compression of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 4
  • 45° Compression of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 5
  • Shear/Roll of GR2-4.9D-A:Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

 Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 7



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 8



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 9



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 10



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 11



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 12



Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 13

Company Information

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.



Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.



Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.



Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!

Certifications

Aluminum Handmade Aerial Photography Helicopter Drone UAV Camera Gimbal Shock Control 14
