Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock

Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Model Number:

GR3

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
After-sale Service:
Online Technical Support
Project Solution Capability:
Total Solution For Projects
Application:
Outdoor, Aerial, Photography, RC Car, UAV Camera, Survey, Drone
Design Style:
Industrial
Material:
Stainless Steel Or Allimum
Certificate:
ISO 9001:2015
Payment & Shipping Terms
Minimum Order Quantity
4 pieces
Product Description
Product Description



By building your own Camera Gimbal & using for your Helicopter Drone with Cameras, the GR3 Series is your best choice!

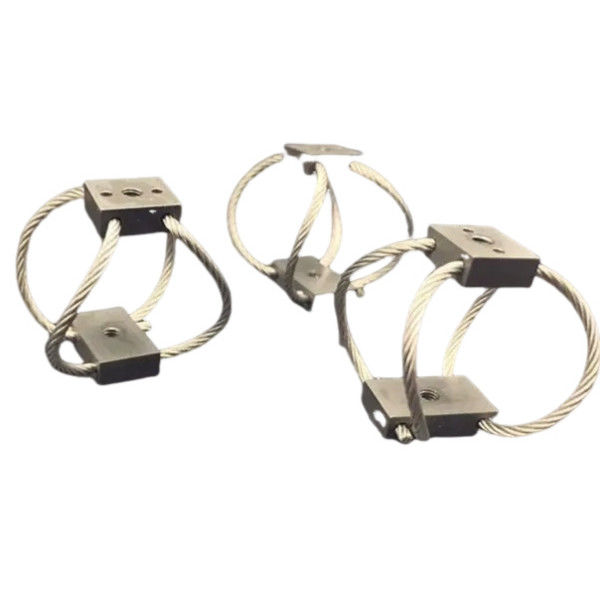

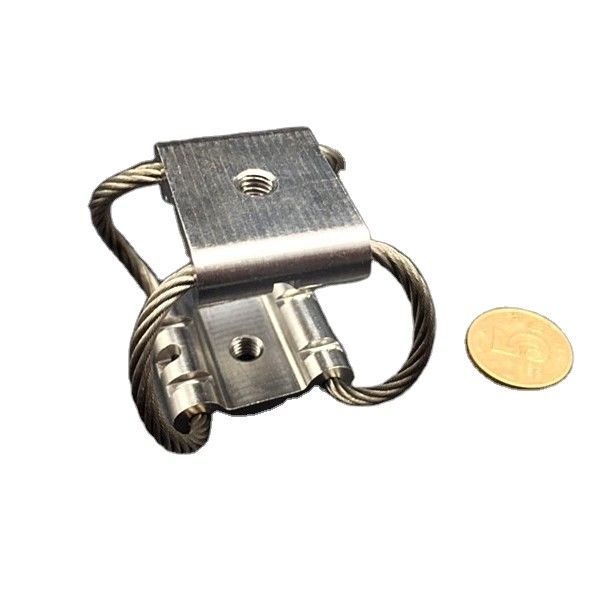

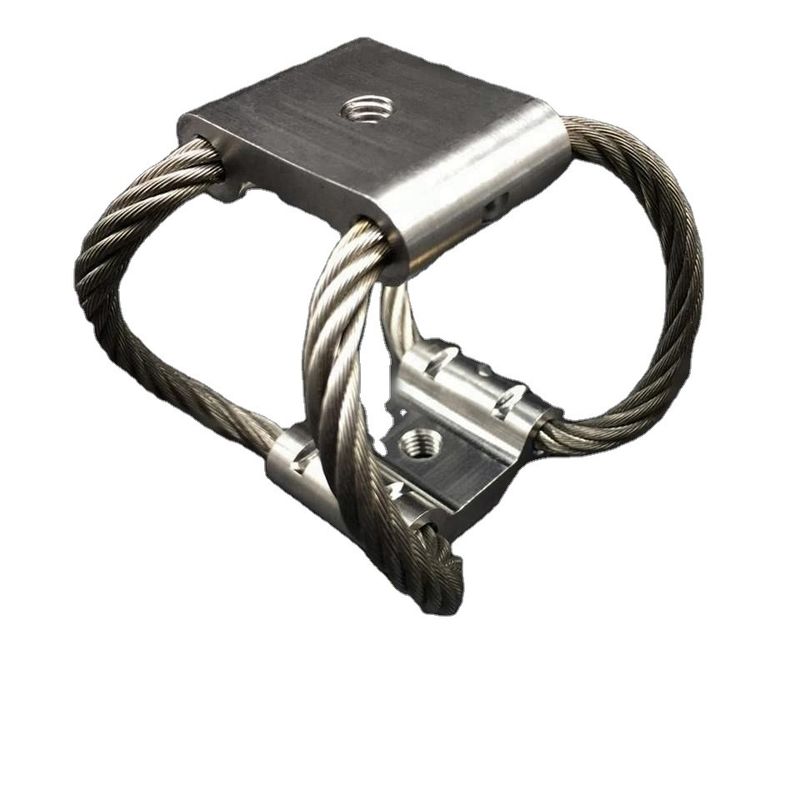

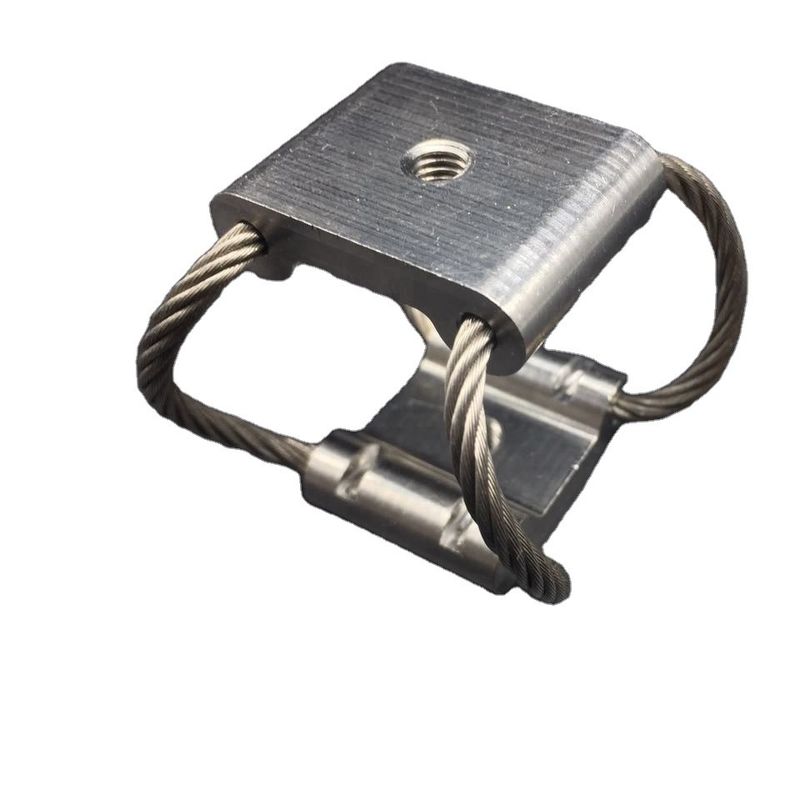

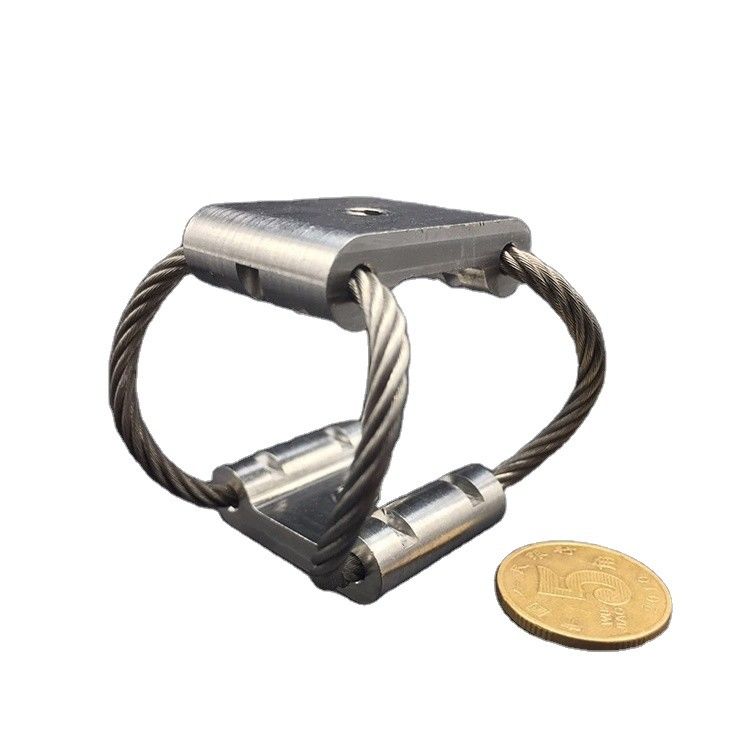

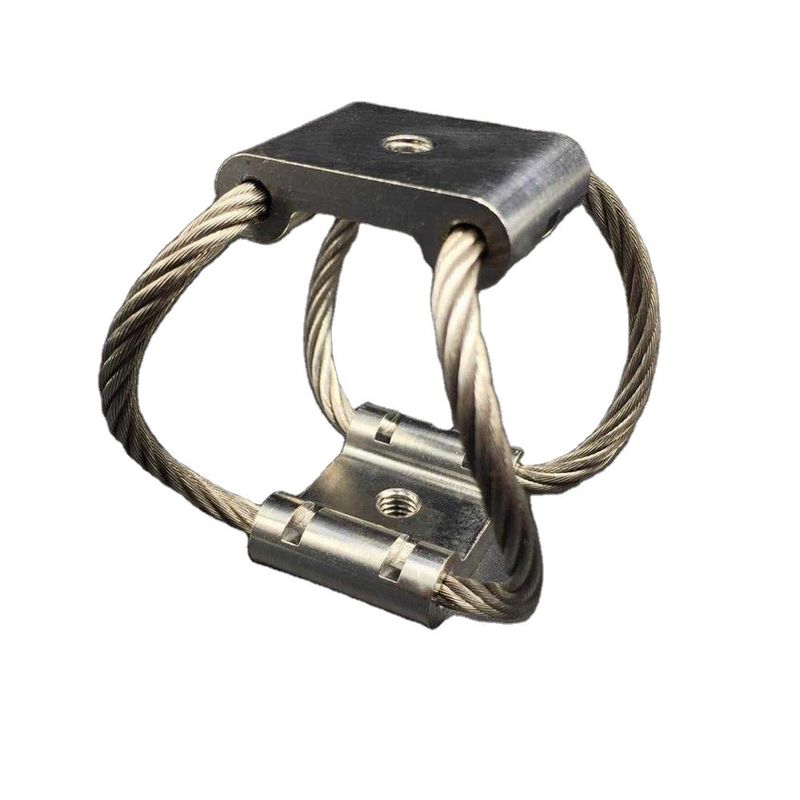

Xi'an Hoan's GR3 Series compact wire rope isolators is one type camera vibration isolators , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.



There are 4 models included in the GR3 series, which are made by the 2.4mm diameter wire rope winded in the two mounting bars. And the max static load of the GR3 series isolatore are from 11N (1.12kg) to 30N (3.06kg).



With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability. Specially used for building your camera gimbal as well as your helicopter drone wtih cameras.



The GR3 Series compact wire rope isolators can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.



Nowadays, the GR series isolators are used widely in the field of RC car aerial drone systems stabilizer, helicopter drone gimbal stabilizer, video project stabilizer, drone shooting stabilizer, UAV camera and camera stabilizer, etc.



Technical Parameter
  • Model Number Code Ordering of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 0
  • Structural Diagram of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 1
  • Dimension of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 2
  • Mounting Options of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 3
  • Compression of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 4
  • 45° Compression of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 5
  • Shear/Roll of GR3 Series:Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 6
Mounting Bars

Material of Mounting Bars *
   Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

  • White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
  • Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
Characteristics

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

  • No creep or ageing.
  • High internal damping.
  • Very wide temperature range.
  • Wide variety of possible fittings.
  • Rapid and economical prototyping.
  • Extremely rugged construction and long lifespan.
  • Excellent combined shock and vibration isolation.
  • Not affected by chemical agents, seawater, ozone, UV rays,...
Applications

* Main Applications of Compact Wire Rope Isolators *



Applications

Typical Equipment

Protection From

Operational Advantages

Shipboard

Electronics, Computers,
Machinery

Explosive blast,
Inherent vibration, Storms

Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection

Rough Terrain Vehicles

Instrumentation, Generators,
Electronics

Rough terrain,
Poor road conditions,
Collision

Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation

Aircraft

Electronics, Computers

High-G maneuvering,
Hard landings, Turbulent air

Temperature and altitude extremes, Lightweight

Shipping Containers

Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit

Maintenance-free, Temperature extremes, Nearby blast

Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock

Maintenance-free, No out gassing, Can be sterilized

Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments



Aerial Photography Camera Gimbal Applications Show*



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 7



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 8



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 9



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 10



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 11



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 12



Allimum Components for Aerial Photography RC Car and UAV Camera in Vibration Shock 13
