Rc Car Aerial Photography Uav Camera Gimbal Stabilizer Shock Vibration Isolator Gr3-30d-a

By building your own Camera Gimbal Drone or using for your Helicopter Drone Aerial Cameras, our GR1 Series is your best choice!

Xi'an Hoan's GR1 Series aerial camera vibration isolators is one type camera vibration isolators , which is designed especially for single use or building camera gimbals to absorb tensional force against the vehicles movement with the camera.

There are 4 models included in the GR1 series, which has the max static load from 1.3N (0.13kg) to 3.3N (0.34kg). With stainless steel material, the GR series isolators have perfect performance of water-proof, anticorrosion as well as durability.

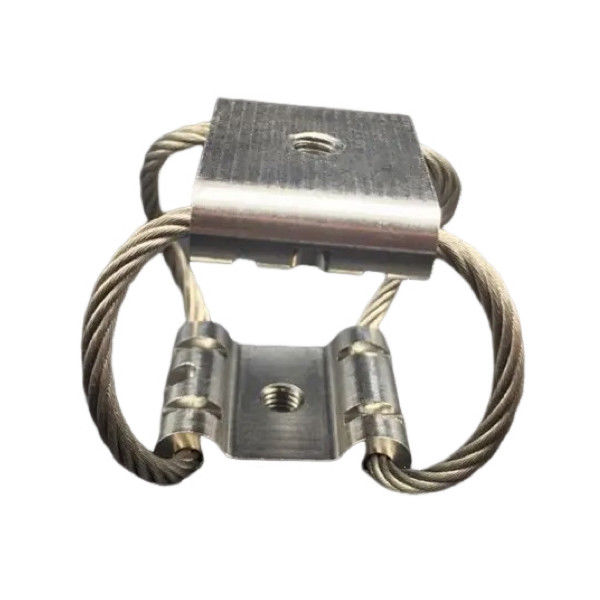

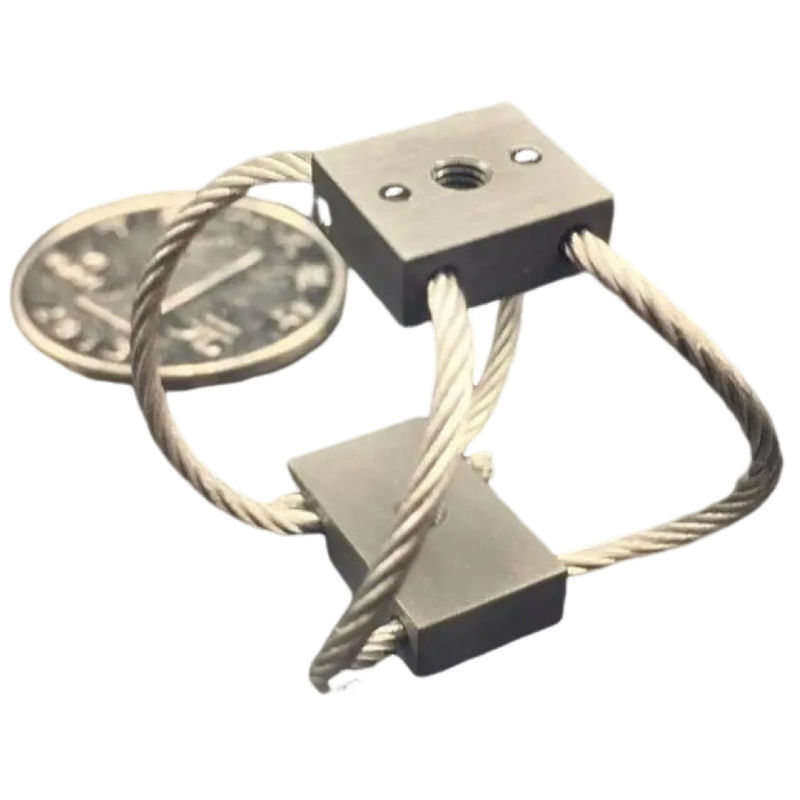

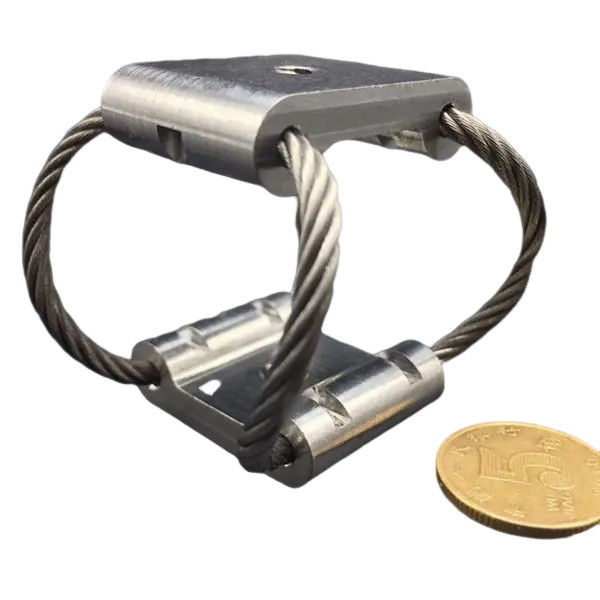

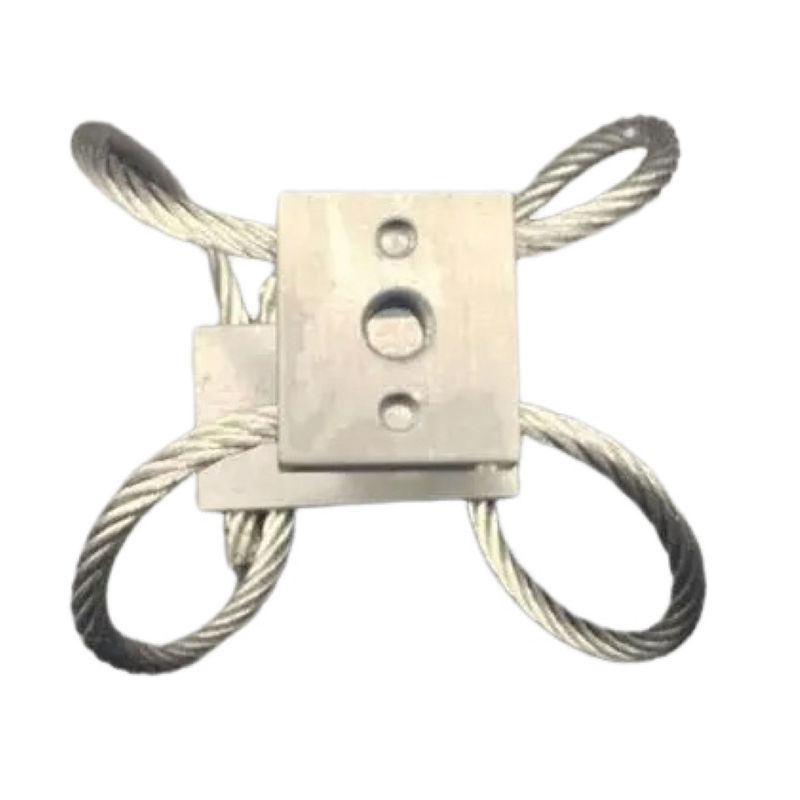

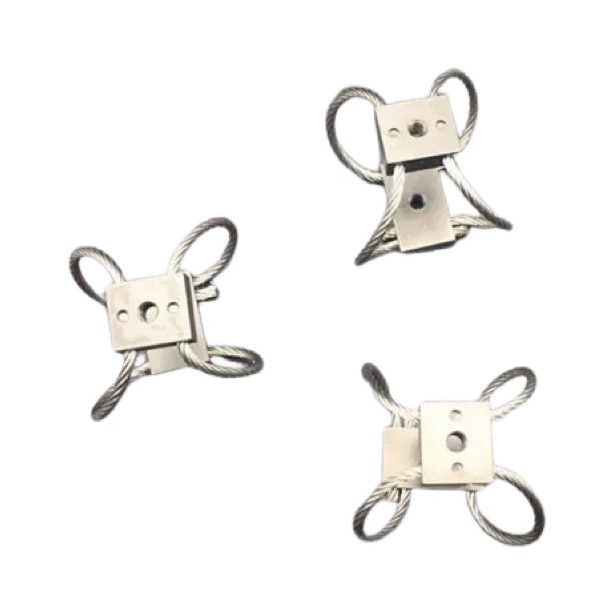

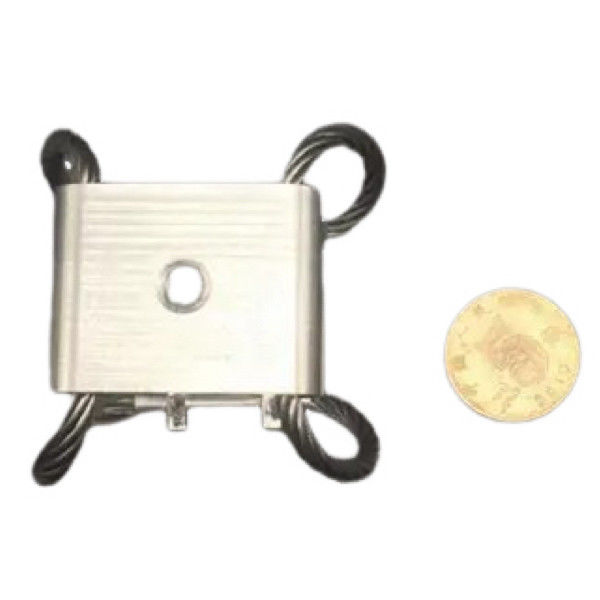

The GR1 Series aerial camera isolators is made by the 1.2mm diameter wire rope winded in the two mounting bars, which can smooth out the small rhythmic vibrations of a traveling shot as well as dampening those sudden, unexpected jolts that a stone or a pothole can produce.

Nowadays, the GR1 series isolators are used widely in the field of camra drone, aerial photographic equipment, helicopter drone, UAV camera, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, etc.

• Model Number Code Ordering of GR1 Series:
• Structural Diagram of GR1 Series:
• Dimension of GR1 Series:
• Mounting Options of GR1 Series:
• Compression of GR1 Series:
• 45° Compression of GR1 Series:

• Shear/Roll of GR1 Series:
•

* Material of Mounting Bars *
Stainless Steel or Aluminum can be selected

* Surface Treatment Selection of Aluminum Mounting Bars *

• White Anodizing: The color of the white anodized aluminum mounting bars keep the same as the color of aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
• Hard Anodizing: The color of the hard anodized aluminum mounting bars is a little darker than the color of aluminum itself, much more harder than the white anodizing way. Special use for complex or special requirements of the wokring conditions of the using of wire rope isolators.

* Unique Characteristics of Xi'an Hoan's Vibration Isolators *

• No creep or ageing.
• High internal damping.
• Very wide temperature range.
• Wide variety of possible fittings.
• Rapid and economical prototyping.
• Extremely rugged construction and long lifespan.
• Excellent combined shock and vibration isolation.
• Not affected by chemical agents, seawater, ozone, UV rays,...

* Main Applications of Wire Rope Isolators *

*Aerial Camera Gimbal Applications Show*

Xi’an Hoan Mirowave Co. Ltd., the professional manufacture of vibration isolators and mounts, provides top quality energy absorption and vibration isolation solutions to a variety filed of military, defense, commercial and heavy industry.

Our products cover a wide range, which are not only vibration isolators, vibration mounts, friction dampers and also shock absorbers as well as LC filters. Established in 2005, with the fast development of decades, we have been grew with more than 500 employees including more than 100 experts.

Now, we are the best seller for more than 31 provinces in China and almost 25 oversea countries for areas of motor, fans, punch machine, elevator, compressor, chemical equipment, subway train, bridge, mechanical equipment, large scaled construction, studios, theaters, vehicles, vessels, and machines.

Contact us today to see how our products can benefit your specific equipment application needs or alternatively you may find one of our many representatives to help you meet your product requirements!
