Effective Wire Rope Vibration Isolator for Aerial Equipment and Communication Apparatus JGX-0400-22A

JGX-0400-22A

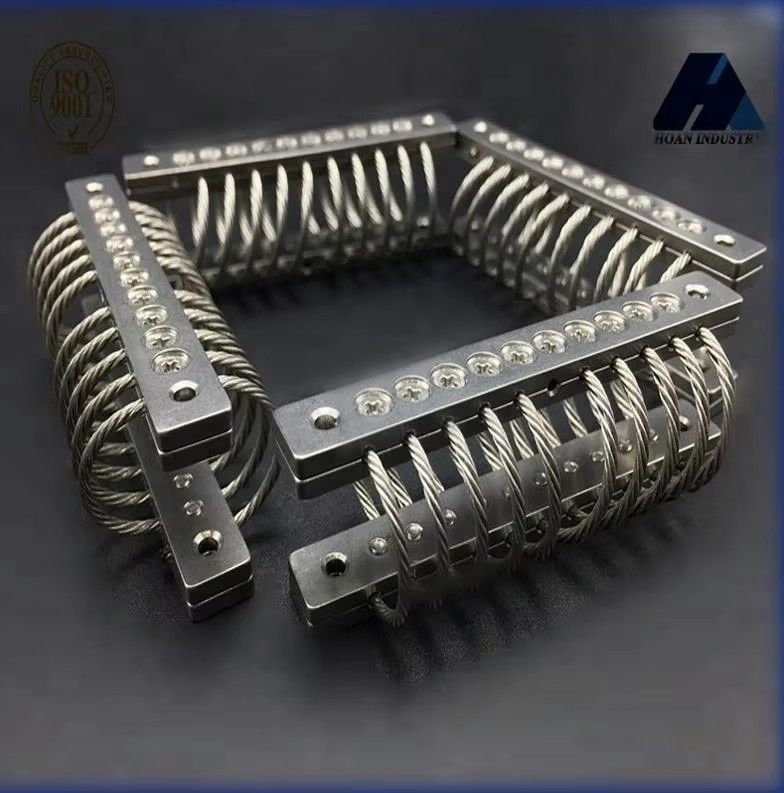

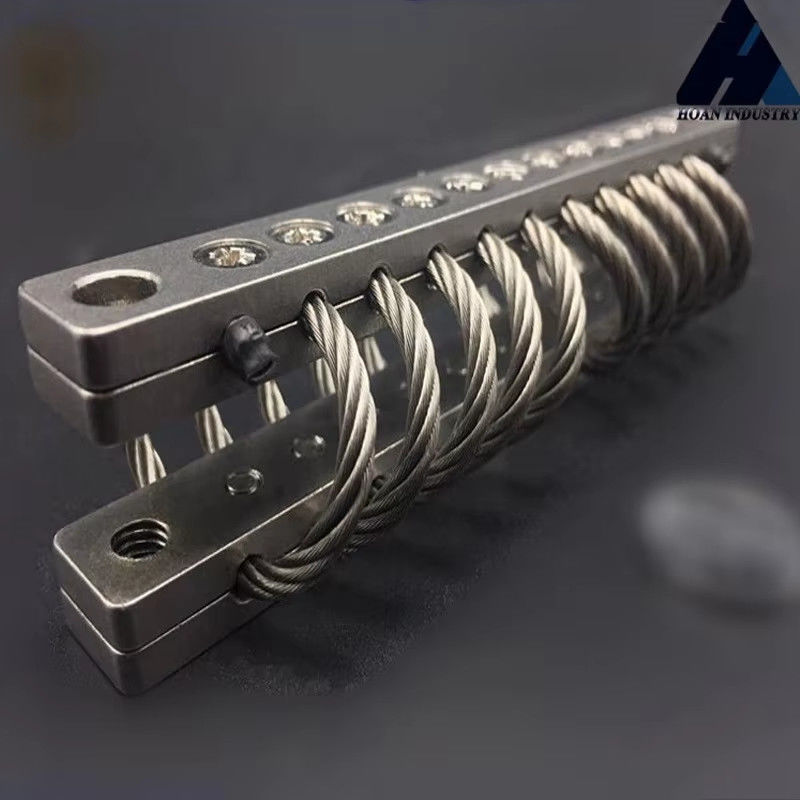

Wire rope isolators are comprised of stainless steel stranded cable threaded through aluminum retaining bars that are mounted for effective shock and vibration isolation.

With their corrosion resistant, all-metal construction, Xi’an Hoan’s wire rope isolators are environmentally stable,
high-performance shock and vibration isolators that are unaffected by temperature extremes, chemicals, oils, ozone and abrasives.

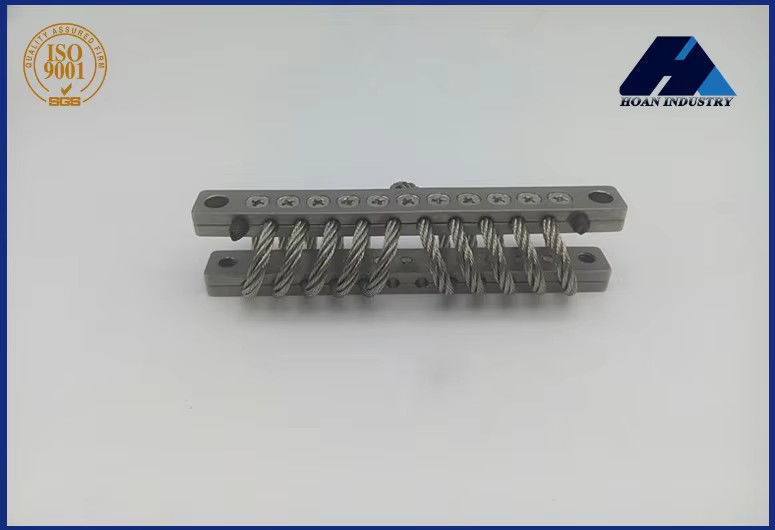

JGX-0400D-22A is the new designed 10 loops 4mm diameter model with max static load of 22kg, especially used in the precise instruments for the noise attenuation. With stainless steel material, this model has perfect performance of water-proof,anticorrosion as well as durability.

The wire rope isolators are now widely used in the field of vehicles, armored cars, launcher, highway transportation,marine, shipbuilding, navy, energy, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices,mobile electronic devices, cameras or any other needed working conditions.

Specification

* The material of the mounting splint *

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy plywood *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.

Product Applications

Company Profile

Xi'an Hoan Microwave Co., Ltd. was established in 2005. The company is located in the High-tech Zone of Xi'an. The company covers an area of ​​800 square meters, including 500 square meters of production area and 300 square meters of office area. It is a professional enterprise specializing in the development, production, sales and technical services of civilian electronic components, cable assemblies, high-precision electrical connectors, vibration isolators, microwave antennas, waterproof breathable valves and other products.Our products are widely used in electronic equipment, aviation communications, postal and telecommunications, civilian electrical appliances, instrumentation and other technical fields. The products are sold all over the country. At present, there are more than 100 civilian customers.

Hoan has obtained ISO9001:2005 quality management system certification and GJB equipment quality management system certification.Since its establishment, the company has strictly organized and implemented operations in accordance with the standard requirements of the quality management system. The product quality is stable and reliable. There have been no customer complaints about quality and leakage accidents, and no production safety accidents.

HOAN primarily develops vibration isolators, LC filters, connectors, and microwave communication antennas based on GJB standards.We also design custom products to meet specific customer requirements. Hundreds of high-demand clients have established long-term partnerships with us. In addition to independent product development, HOAN actively fosters collaboration between industry, academia, and research institutions.
