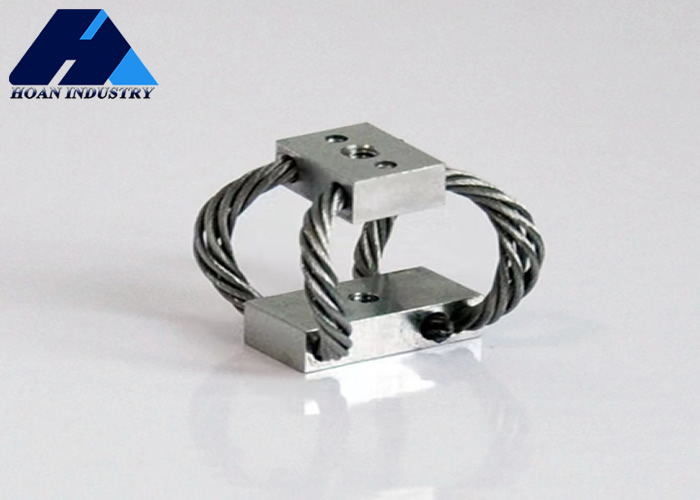

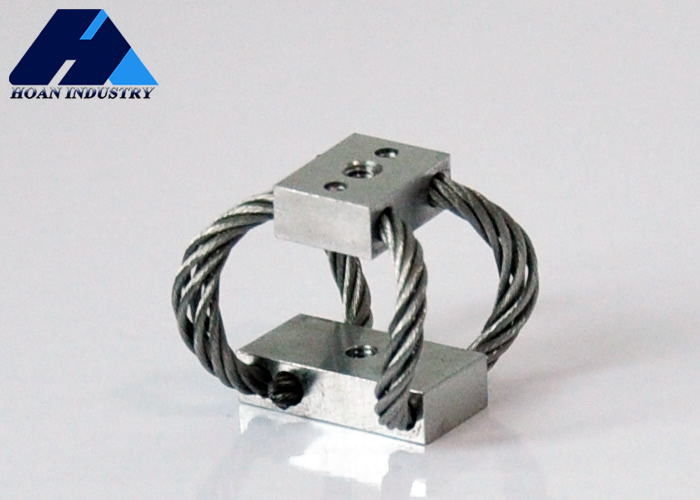

GR2 Compact Wire Rope Isolator

Drone Accessories Compact Wire Rope Isolator

Place of Origin:

china

Model Number:

GR3

Contact Us
Request A Quote
Product Details
Highlight:

GR2 Compact Wire Rope Isolator

,

Drone Accessories Compact Wire Rope Isolator

Payment & Shipping Terms
Minimum Order Quantity
10
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

summary:
Prefabricated vibration isolator (GR butterfly type) is an efficient vibration isolation device specially designed to reduce vibration transmission caused by various mechanical equipment. This type of isolator is named after its unique butterfly shape, designed to provide optimized vibration absorption performance.

Product Dimensions

Professional Helicopter UAV Camera RC Car Drone Accessories GR2 Compact Wire Rope Isolator Vibration Shock Control 0

Mounting Options

Professional Helicopter UAV Camera RC Car Drone Accessories GR2 Compact Wire Rope Isolator Vibration Shock Control 1



SIZE PARAMETER:



product model Height Weight Unit weight Mounting options Thru hole Thread C'sink
GR1-3.3D-A 19 22 0.09 A,B,C,D,E,S ∅3.3 M3×0.5 90
GR1-2.4D-A 23 24 0.10
GR1-1.8D-A 27 27 0.11
GR1-1.3D-A 33 30 0.12



Vertical load



Professional Helicopter UAV Camera RC Car Drone Accessories GR2 Compact Wire Rope Isolator Vibration Shock Control 2

Curve number Model Maximum static load(N) Maximum deformation(mm)

Vibration stiffness

KN/m)

Impact stiffness(KN/m)
1 GR3-30D-A 30 7.1 24 12
2 GR3-22D-A 22 10.4 12 6.1
3 GR3-18D-A 18 14.2 8.4 3.5
4 GR3-11D-A 11 19.3 5.8 1.9




45 ° directional load:

Professional Helicopter UAV Camera RC Car Drone Accessories GR2 Compact Wire Rope Isolator Vibration Shock Control 3



Curve number

Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 GR3-30D-A 12 9.4 14 5.3
2 GR3-22D-A 10 13.2 8.8 3.2
3 GR3-18D-A 6.7 17.3 5.8 1.8
4 GR3-11D-A 4.4 22.9 3.5 0.9






Lateral load:



Professional Helicopter UAV Camera RC Car Drone Accessories GR2 Compact Wire Rope Isolator Vibration Shock Control 4




Curve number Model Maximum static load(N) Maximum deformation(mm) Vibration stiffness(KN/m) Impact stiffness(KN/m)
1 GR3-30D-A 12 8.4 6.1 6.1
2 GR3-22D-A 8.5 11.9 3.5 3.5
3 GR3-18D-A 6.2 15.5 1.8 1.8
4 GR3-11D-A 4.4 20.6 1.1 1.1


characteristic:
1. Innovative design: The butterfly shaped design enhances the structural strength of the isolator while maintaining sufficient flexibility to adapt to different vibration frequencies and amplitudes.
2. Efficient vibration isolation: It can effectively isolate and absorb vibrations from mechanical equipment, reducing impact and noise on building structures or surrounding equipment.
3. Durability and reliability: The use of high-quality materials and advanced manufacturing technology ensures its durability and long-term stability in various environments.
4. Easy to install and maintain: The modular design makes the installation process quick and easy, while the maintenance work is relatively easy, which helps to reduce operating costs.
Application:
1. Photography and videography
2. Aerial surveying and mapping
3. Airborne communication
