Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications

Name: Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JGX-0160
Availability: InStock

Model Number:	JGX-0160
MOQ:	10
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Highlight:

Industrial Applications Wire Rope Isolator

Compact Wire Rope Isolator JGX-0160

Vibration Shock Control Wire Rope Isolator

Product Description

summary:

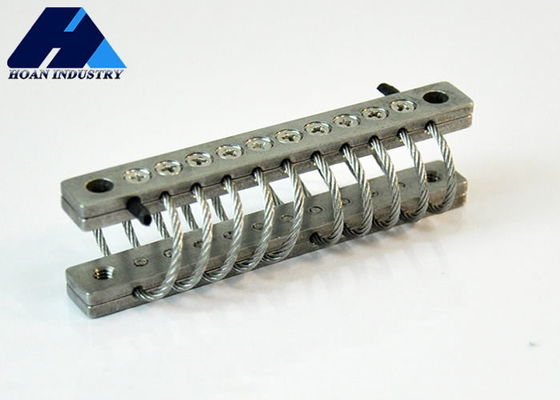

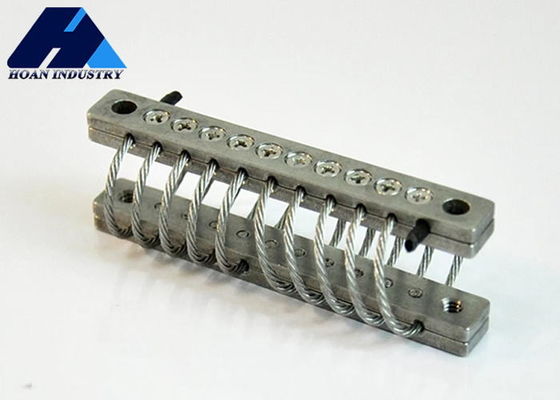

Wire rope isolator (JGX) is a common isolation device, usually composed of multiple stranded wire ropes and fixed support components at both ends. Its main function is to reduce or eliminate the vibration and impact force transmitted to buildings or mechanical equipment through the flexibility and elasticity of the steel wire rope, thereby protecting the equipment and improving the stability of the working environment.

Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications 0

Mounting Options

Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications 1

Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications 2

SIZE PARAMETER:

product model	“H”±1.5	“W”	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	C'sink(°)
JGX-0160D-4.8A	18	25	0.05	B,D,E	∅4.7±0.13	M4×0.7	90
JGX-0160D-3.6A	20	28	0.05	A,B,C,D,E,S
JGX-0160D-3.2A	25	30	0.075
JGX-0160D-2.7A	28	33	0.075
JGX-0160D-2.2A	30	36	0.075
JGX-0160D-2A	33	38	0.075

Vertical load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness KN/m)	Impact stiffness(KN/m)
1	JGX-0160D-4.8A	4.8	8.6	36	22
2	JGX-0160D-3.6A	3.6	9.7	25	16
3	JGX-0160D-3.2A	3.2	14.7	17	8.8
4	JGX-0160D-2.7A	2.7	17.8	12	6.1
5	JGX-0160D-2.2A	2.2	18.8	11	5.3
6	JGX-0160D-2A	2.0	21.8	7.9	3.9

45 ° directional load:

Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications 4

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0160D-4.8A	3.4	11.7	20	11.4
2	JGX-0160D-3.6A	2.4	14.7	14	7.0
3	JGX-0160D-3.2A	2.4	20.8	11	4.7
4	JGX-0160D-2.7A	1.8	24.9	7.0	3.0
5	JGX-0160D-2.2A	1.8	26.9	6.1	2.6
6	JGX-0160D-2A	1.6	31.0	5.3	1.9

Lateral load:

Compact JGX-0160 Wire Rope Isolator For Vibration Shock Control In Industrial Applications 5

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Vibration stiffness(KN/m)
1	JGX-0160D-4.8A	2.2	8.6	14	14
2	JGX-0160D-3.6A	1.8	10.7	8.8	8.8
3	JGX-0160D-3.2A	1.6	15.7	5.3	5.3
4	JGX-0160D-2.7A	1.3	18.8	3.9	3.9
5	JGX-0160D-2.2A	1.3	19.8	3.2	3.2
6	JGX-0160D-2A	1.1	22.8	2.3	2.3

characteristic:
1. Efficient vibration isolation performance: Steel wire rope isolators can effectively absorb and reduce vibration transmission, effectively isolating vibration sources.
2. Strong durability: The steel wire rope isolator is made of durable steel wire rope, which has a long service life and can operate stably in harsh environments.
3. Adjustable: Steel wire rope isolators can usually be adjusted according to actual needs to meet the isolation requirements of different occasions.
4. Easy installation: Installing wire rope isolators is relatively simple and can be customized according to specific installation scenarios and requirements.
Application:
1. Building structure
2. Industrial equipment
3. Bridges
4. Pipeline
