JGX-1276A Series
Product Description

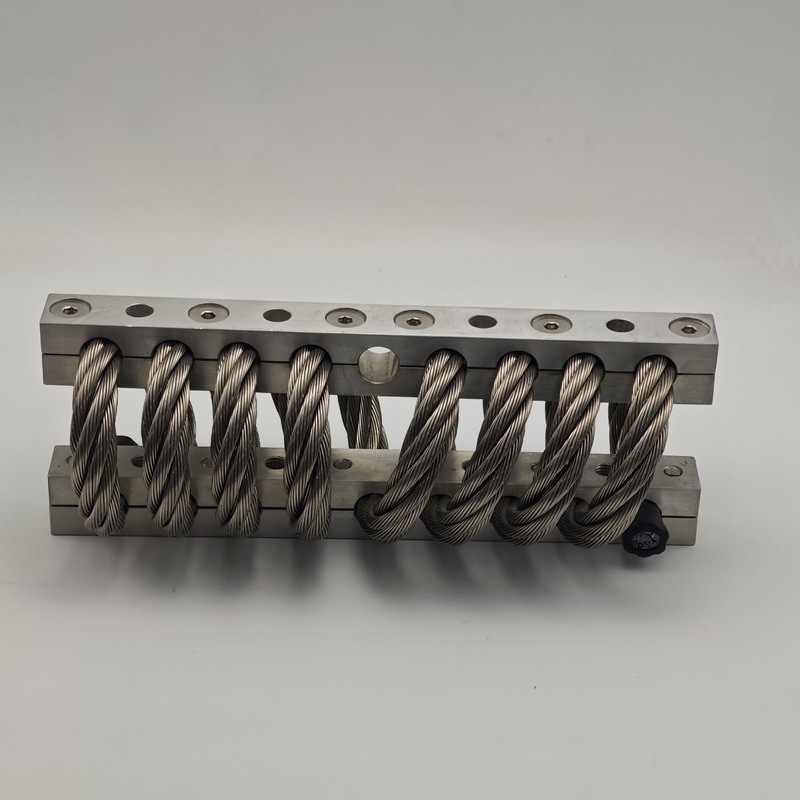

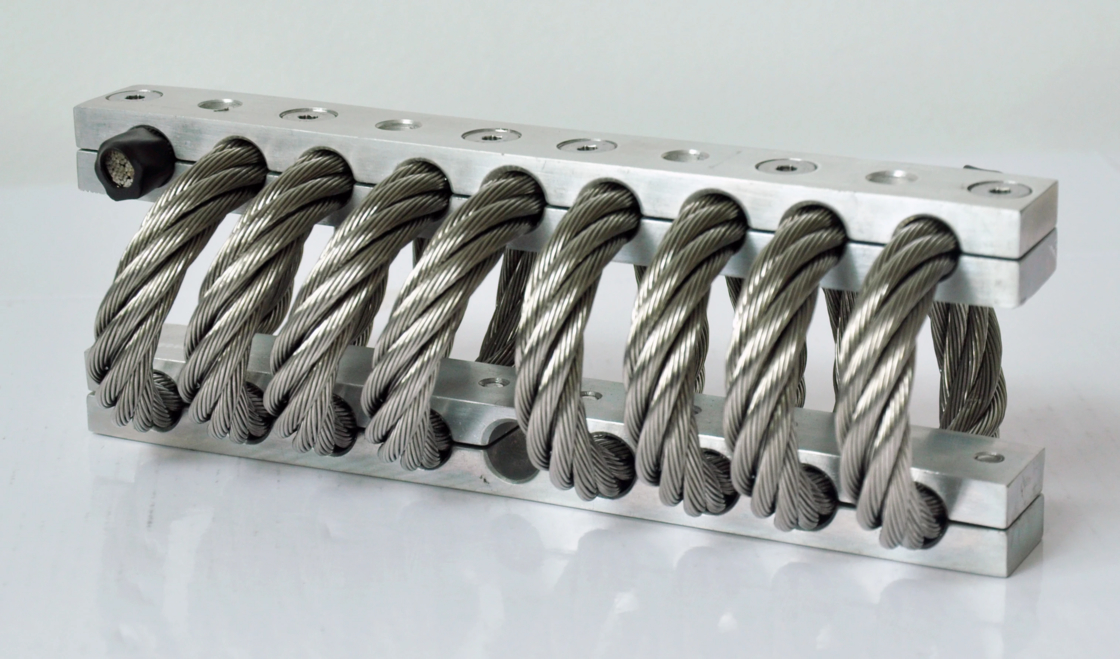

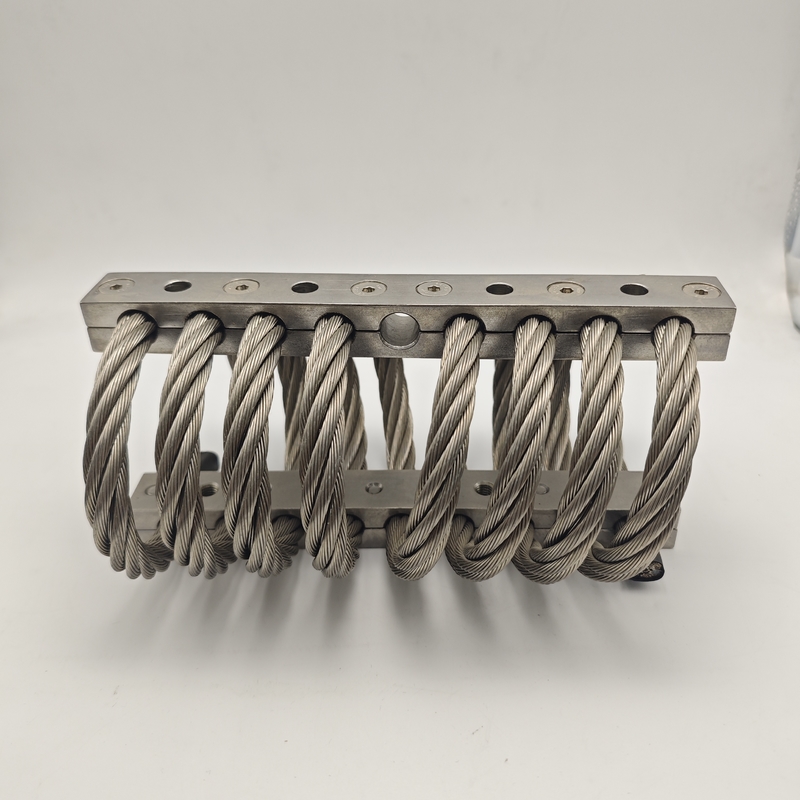

The JGX-1276A series steel wire rope vibration isolators, developed and manufactured by Xi'an Hoan Microwave Co., Ltd., are non-linear vibration isolation elements meticulously designed based on high-performance special stainless steel wire ropes. The core structure of this series adopts stainless steel wire ropes of specific diameters, formed by winding through special processes to create a unique multi-strand spiral structure. This design endows the isolators with excellent multi-directional vibration isolation performance, effectively attenuating broadband vibration and impact energy from multiple directions.
The JGX-1276A series performs particularly outstandingly in harsh environments. The high-quality stainless steel materials used possess excellent corrosion resistance, enabling long-term stable operation in harsh environments such as high humidity and salt fog, thus ensuring the safety of core components of equipment. This series of isolators has wide environmental adaptability and can maintain stable vibration isolation effects within a relatively wide temperature range.
For complex working conditions, the JGX-1276A series demonstrates excellent impact resistance and good load adaptability, which can effectively protect precision instruments, electronic equipment, and airborne/vehicle-mounted devices from severe vibration and impact damage caused by transportation, operation, or external environments. Meanwhile, its structural design avoids the drawbacks of traditional vibration isolation elements, such as easy aging and loosening, and has the advantages of long service life and maintenance-free operation, significantly reducing users' later maintenance costs.
Static Load Curve
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/M)
|
Ks(Shock)
(KN/m)
|
|
1
|
JGX-1276A-278A |
278 |
32.0 |
716 |
352 |
| 2 |
JGX-1276A-233A |
233 |
38.1 |
531 |
249 |
| 3 |
JGX-1276A-220A |
220 |
43.2 |
461 |
208 |
| 4 |
JGX-1276A-176A |
176 |
48.8 |
343 |
147 |
| 5 |
JGX-1276A-149A |
149 |
59.9 |
256 |
103 |
| 6 |
JGX-1276A-130A |
130 |
74.7 |
196 |
72 |
| 7 |
JGX-1276A-115A |
115 |
85.9 |
154 |
54 |
| 8 |
JGX-1276A-92A |
92 |
102.6 |
111 |
37 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/M)
|
Ks(Shock)
(KN/m)
|
|
1
|
JGX-1276A-278A |
197.4 |
44.7 |
405 |
177 |
| 2 |
JGX-1276A-233A |
165.7 |
52.8 |
298 |
126 |
| 3 |
JGX-1276A-220A |
156.6 |
61.0 |
263 |
105 |
| 4 |
JGX-1276A-176A |
124.8 |
68.6 |
194 |
74 |
| 5 |
JGX-1276A-149A |
106.6 |
84.8 |
144 |
51 |
| 6 |
JGX-1276A-130A |
93.1 |
105.7 |
110 |
37 |
| 7 |
JGX-1276A-115A |
81.7 |
121.9 |
88 |
28 |
| 8 |
JGX-1276A-92A |
63.6 |
144.8 |
62 |
19 |
| No. |
Model |
Max Static Load
(kg)
|
Max Deflection
(mm)
|
Kv(Vibration)
(KN/M)
|
Ks(Shock)
(KN/m)
|
|
1
|
JGX-1276A-278A |
152.0 |
33.0 |
221 |
221 |
| 2 |
JGX-1276A-233A |
124.8 |
40.1 |
156 |
156 |
| 3 |
JGX-1276A-220A |
115.7 |
45.2 |
130 |
130 |
| 4 |
JGX-1276A-176A |
93.1 |
50.8 |
91 |
91 |
| 5 |
JGX-1276A-149A |
61.3 |
56.9 |
60 |
60 |
| 6 |
JGX-1276A-130A |
45.4 |
77.7 |
46 |
46 |
| 7 |
JGX-1276A-115A |
34.1 |
90.9 |
33 |
33 |
| 8 |
JGX-1276A-92A |
22.7 |
107.7 |
23 |
23 |
Product material
* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
