Galvanized Steel Wire Rope Vibration Isolator with 5Hz to 100Hz Isolation Frequency for Multi-Directional Vibration Protection

Get Best Price

Video

JGX-0956A-104A Wire Rope Vibration Isolator All Metal Open Structure For Outdoor Scenarios

Get Best Price

Video

JGX-1598A-557A Wide-Frequency "Silencing" Capability for High-End Optical Platforms and Semiconductor Manufacturing Equipment

Get Best Price

Video

JGX-1276 Series Wire Rope Vibration Isolator For Industrial Overall Width 50mm Design Style Industrial

Get Best Price

Contact Now

Product Description

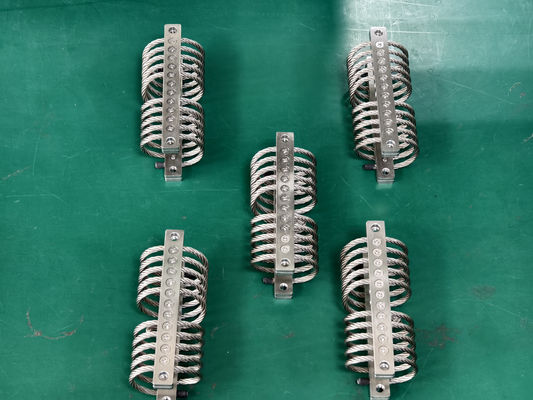

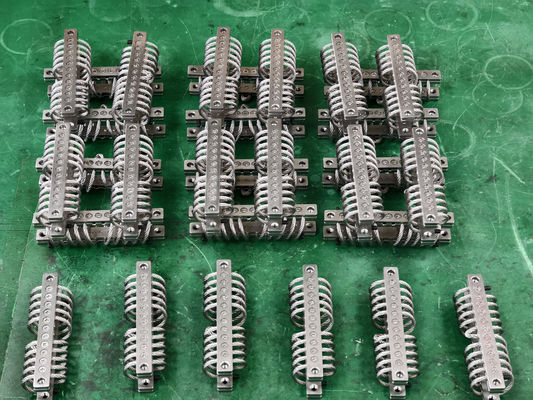

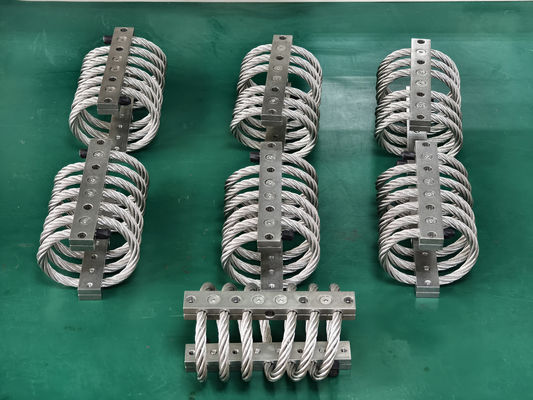

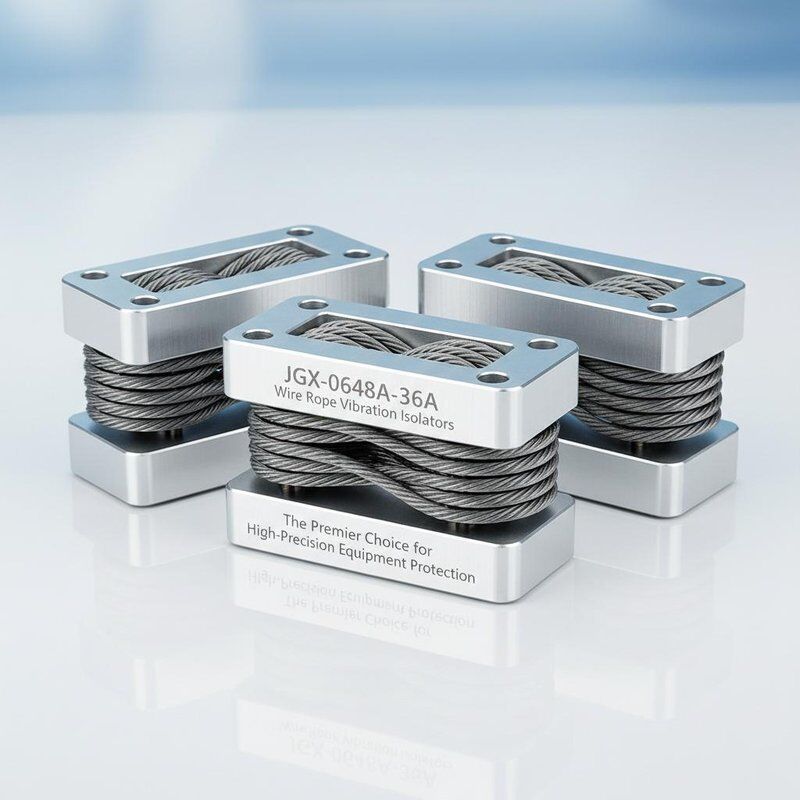

JGX-0648A-36A Wire Rope Vibration Isolators

The Premier Choice for High-Precision Equipment Protection

JGX-0648A Series Overview

The JGX-0648A series wire rope vibration isolators from Xi'an Hoan Microwave Co., Ltd. have emerged as the premier choice for vibration protection of high-precision equipment, thanks to their military-grade quality. Through a specially designed helical wire rope structure, these isolators achieve multi-directional vibration isolation, effectively reducing the impact of vibrations and shocks during equipment transportation and operation.

Their core advantage lies in high damping characteristics, which rapidly dissipate vibration energy to avoid resonance and ensure equipment stability. The JGX-0648A series also features a wide load range, flexibly meeting the vibration isolation needs of equipment with varying weights. Rigorously tested for fatigue resistance and environmental adaptability, the products maintain exceptional performance even under extreme conditions.

Whether for radar systems, electronic countermeasure equipment, or precision laboratory instruments, the JGX-0648A series provides reliable vibration isolation support, showcasing Xi'an Hoan Microwave's technical prowess in the high-end vibration isolation field.

Mounting Options

Size Parameters

Model	"H"±3.30	"W"	Unit weight	Mounting options	Thru hole(mm)	Thread(mm)	Csink(℃)
JGX-0648D-79A	48	56	0.456	A,B,C,D,E,S	∅6.9±0.13	M6×1.0	90
JGX-0648D-68A	54	64	0.492
JGX-0648D-56A	59	71	0.516
JGX-0648D-45A	64	80	0.564
JGX-0648D-39A	64	89	0.832
JGX-0648D-36A	67	95	0.864
JGX-0648D-33A	67	100	0.684
JGX-0648D-30A	83	108	0.708

Technical Data Sheet

Vertical Load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness (KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	79	17.8	382	182
2	JGX-0648D-68A	68	23.9	266	116
3	JGX-0648D-56A	56	29.0	196	79
4	JGX-0648D-45A	45	32.0	151	60
5	JGX-0648D-39A	39	32.0	127	51
6	JGX-0648D-36A	36	35.6	109	42
7	JGX-0648D-33A	33	35.6	100	39
8	JGX-0648D-30A	30	50.8	74	25

45° Directional Load

Curve number	Model	Maximum static load(N)	Maximum deformation(mm)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	56.7	25.9	215	89
2	JGX-0648D-68A	47.7	34.0	151	58
3	JGX-0648D-56A	39.8	39.6	109	40
4	JGX-0648D-45A	32.8	45.7	86	30
5	JGX-0648D-39A	27.9	45.7	72	25
6	JGX-0648D-36A	25.3	50.8	61	21
7	JGX-0648D-33A	23.4	50.8	56	19
8	JGX-0648D-30A	21.3	71.6	41	12

Lateral Load

Curve number	Model	Maximum static load(N)	Maximum static load(N)	Vibration stiffness(KN/m)	Impact stiffness(KN/m)
1	JGX-0648D-79A	43.2	18.8	110	110
2	JGX-0648D-68A	36.3	24.9	72	72
3	JGX-0648D-56A	31.7	30.0	49	49
4	JGX-0648D-45A	25.0	34.0	37	37
5	JGX-0648D-39A	22.7	34.0	32	32
6	JGX-0648D-36A	20.4	38.1	25	25
7	JGX-0648D-33A	18.2	38.1	23	23
8	JGX-0648D-30A	15.9	52.8	16	16
