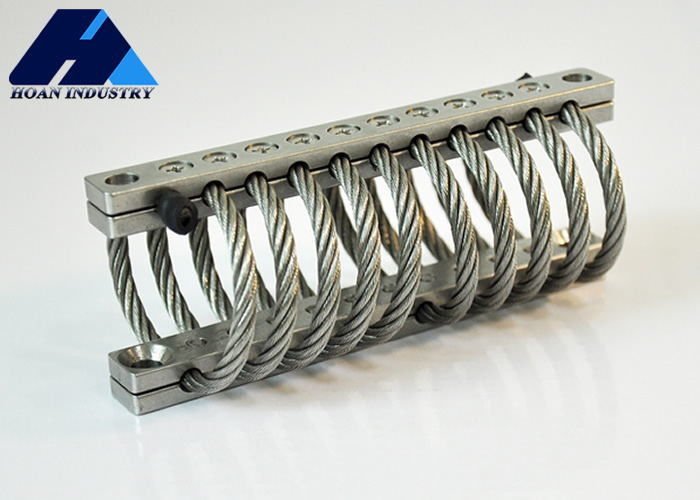

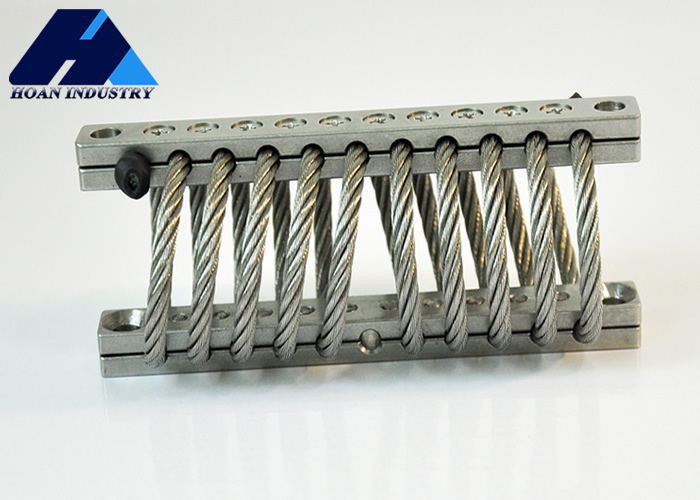

Customizable Vibration Shock Control JGX-0480 Compact Wire Rope Isolator

The JGX wire rope isolator is a versatile vibration control device constructed from multiple stranded wire ropes with fixed support components at both ends. It effectively reduces or eliminates vibration and shock transmission to buildings and mechanical equipment through the inherent flexibility and elasticity of steel wire rope, protecting equipment and enhancing operational stability.

Mounting Options

Size Parameters

Model	"H"±3.30	"W"	Unit Weight	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
JGX-0480D-75A	30	36	0.304	D	∅6.9±0.13	M6×1.0	90
JGX-0480D-72A	33	38	0.32
JGX-0480D-61A	36	41	0.336	B,D,E
JGX-0480D-59A	38	43	0.336	A,B,C,D,E,S
JGX-0480D-52A	41	46	0.352
JGX-0480D-50A	43	48	0.4
JGX-0480D-37A	51	58	0.416
JGX-0480D-24A	54	75	0.432
JGX-0480D-18A	62	88	0.448
JGX-0480D-12A	81	107	0.464

Technical Data - Vertical Load

Curve No.	Model	Max Static Load (N)	Max Deformation (mm)	Vibration Stiffness (KN/m)	Impact Stiffness (KN/m)
1	JGX-0480D-75A	75	8.6	578	363
2	JGX-0480D-72A	72	11.7	455	252
3	JGX-0480D-61A	61	13.7	347	189
4	JGX-0480D-59A	59	15.7	301	152
5	JGX-0480D-52A	52	18.8	244	117
6	JGX-0480D-50A	50	20.8	212	96
7	JGX-0480D-37A	37	26.9	136	58
8	JGX-0480D-24A	24	29.5	82	33
9	JGX-0480D-18A	18	36.6	54	21
10	JGX-0480D-12A	12	52.8	29	10

Technical Data - 45° Directional Load

Curve No.	Model	Max Static Load (N)	Max Deformation (mm)	Vibration Stiffness (KN/m)	Impact Stiffness (KN/m)
1	JGX-0480D-75A	54.5	12.7	341	179
2	JGX-0480D-72A	52.2	16.8	258	126
3	JGX-0480D-61A	44.1	19.8	197	93
4	JGX-0480D-59A	41.7	22.9	172	75
5	JGX-0480D-52A	38.1	26.9	141	58
6	JGX-0480D-50A	35.7	29	123	49
7	JGX-0480D-37A	26.5	38.1	77	28
8	JGX-0480D-24A	18.1	41.7	49	18
9	JGX-0480D-18A	13.9	51.3	33	11
10	JGX-0480D-12A	9.3	74.7	18	5.3

Technical Data - Lateral Load

Curve No.	Model	Max Static Load (N)	Max Deformation (mm)	Vibration Stiffness (KN/m)	Impact Stiffness (KN/m)
1	JGX-0480D-75A	36.3	8.6	224	224
2	JGX-0480D-72A	36.3	11.7	156	156
3	JGX-0480D-61A	34.1	14.7	112	112
4	JGX-0480D-59A	31.7	16.8	93	93
5	JGX-0480D-52A	29.5	19.8	70	70
6	JGX-0480D-50A	27.2	21.8	60	60
7	JGX-0480D-37A	20.4	27.9	35	35
8	JGX-0480D-24A	5.9	31.0	11	11
9	JGX-0480D-18A	4.1	38.1	5.3	5.3
10	JGX-0480D-12A	2.2	55.9	2.3	2.3

Product Characteristics

Efficient vibration isolation performance: Effectively absorbs and reduces vibration transmission, isolating vibration sources
Strong durability: Constructed from durable steel wire rope for long service life and stable operation in harsh environments
Adjustable design: Can be customized to meet isolation requirements for different applications
Easy installation: Simple mounting process with customization options for specific installation scenarios

Applications

Building structures
Industrial equipment
Bridges
Pipeline systems
