GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Stable Wire Rope Vibration Isolator

Durable Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR1-1.8D-A

Contact Us
Request A Quote
Product Details
Accessories:
Net
Design Style:
Industrial
Maximum Load Capacity:
149kg
Axial Stiffness:
50N/mm
Number Of Strands:
7
Port:
Xi'an Or Specified
Wire Rope Diameter:
3mm
Usage:
Industrial Machinery
Shock Absorption:
Yes
Temperature Range:
-40℃ To 80℃
Shock Rsistance:
30g/11ms
High:
216mm
Showroom Location:
None
Isolation Efficiency:
95%
Weight:
0.5kg
Highlight:

Stable Wire Rope Vibration Isolator

,

Durable Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
4,pience,7
Product Description

GR1 Series

Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorbers are designed to meet this need. Not only is it able to absorb all kinds of vibrations that the camera encounters during drone flight, but it also provides excellent stability, allowing photographers to focus on their creations without worrying about blurry images caused by vibrations.


The GR1 series shock absorbers are designed to be simple and efficient. It uses high-strength stainless steel material, which not only ensures the durability of the shock absorber, but also has good waterproof and anti-corrosion properties, allowing it to work stably under various harsh environmental conditions. The core of the shock absorber is made of a 1.2 mm diameter steel wire rope wound around two mounting rods, which ensures stability in all vibration situations.



The four models of the GR1 series shock absorbers are designed for different camera weights, with a maximum static load range of 1.3 N (0.13 kg) to 3.3 N (0.34 kg), which allows photographers to choose the most suitable shock absorber according to their equipment to ensure the best stability. Whether it's a lightweight mirrorless camera or a heavy-duty professional-grade SLR camera, the GR1 series provides stable support.



Xi'an Hoan Microwave Co., Ltd.'s GR1 series aerial camera shock absorber is a high-performance stabilizer designed for drone photography. It combines advanced materials science with precision engineering to provide photographers with a stable, reliable platform to ensure high-quality footage, no matter how complex the shooting environment. As drone technology continues to evolve, the GR1 series of shock absorbers will continue to play an important role in the field of aerial photography, providing photographers with more innovative possibilities.

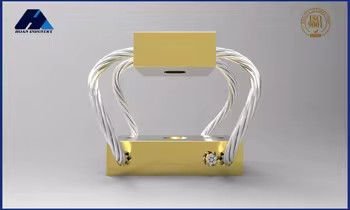

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support 0

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR1-3.3D-A 3.3 6.4 3.9 1.9
2 GR1-2.4D-A 2.4 8.4 2.8 1.2
3 GR1-1.8D-A 1.8 11.9 1.8 0.6
4 GR1-1.3D-A 1.3 15 1.3 0.4

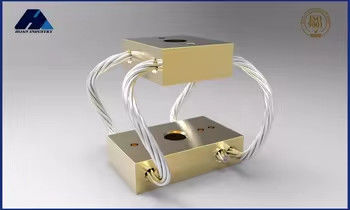

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support 1



No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR1-3.3D-A 1.6 8.6 2.1 0.8
2 GR1-2.4D-A 1.1 10.9 1.5 0.4
3 GR1-1.8D-A 0.8 14.7 0.9 0.3
4 GR1-1.3D-A 0.5 18.3 0.5 0.1



GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support 2

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR1-3.3D-A 1.1 7.9 0.7 0.7
2 GR1-2.4D-A 0.9 9.9 0.4 0.4
3 GR1-1.8D-A 0.7 13.2 0.3 0.3
4 GR1-1.3D-A 0.5 16.3 0.1 0.1
