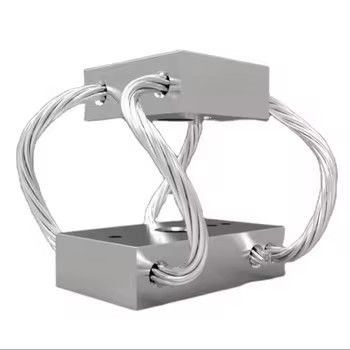

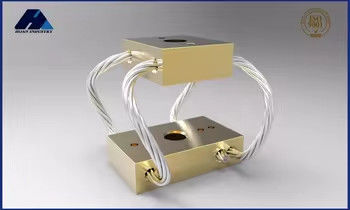

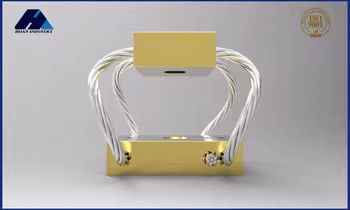

GR2-9.3D-A High-Performance Wire Rope Vibration Isolator for Professional Photographers

GR2-9.3D-A High-Performance Wire Rope Vibration Isolator for Professional Photographers

Brand Name: Hoan
Model Number: GR2-9.3D-A
MOQ: 4 piences
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4,pience,7
Detail Information
Place of Origin:
Shaanxi, China
Certification:
ISO9001:2015
Resonant Frequency:
5-10HZ
Temperature Range:
-40℃ To 80℃
Installation:
Wall Mounted
Core Components:
Dimension & Outlooking
Load Capacity:
Depends On Size And Material
Type:
Noise And Attenuation
Usage:
Vacuum Pump
Overall Width:
50mm
Port:
Xi'an
Wire Rope Length:
79.5mm
Size:
Customizable
Applications:
Marine And Industrial Engine Mounts
Machinery Test Report:
Not Available
Mounting Type:
Single Or Multiple Mounts
Wire Rope Material:
Galvanized Steel
Supply Ability:
4,pience,7
Highlight:

High Performance Wire Rope Vibration Isolator

,

GR2-9.3D-A Wire Rope Vibration Isolator

,

Professional Photographers Wire Rope Vibration Isolator

Product Description

GR2 Series
The GR2-9.3D-A has been designed with the challenges of a variety of shooting environments in mind. It is made of high-quality stainless steel material, which not only guarantees the structural strength and durability of the shock absorber, but also has good waterproof and anti-corrosion properties. The GR2-9.3D-A retains its performance even in harsh weather conditions, such as rain, snow or humidity, ensuring that photographers can get stable results in any environment.
In addition to its excellent physical properties, the GR2-9.3D-A is designed with a focus on user experience. Its installation and adjustment process is simple and convenient, and photographers can quickly mount it on the camera or stabilizer and adjust the angle and position of the shock absorber as needed. This flexibility allows photographers to easily cope with different shooting scenarios, whether they are handheld or fixed, to get the best results.
The GR2-9.3D-A also features an adjustable damping system, which allows photographers to adjust the damping force according to the shooting environment and camera weight to suit different shooting needs. This customized setup allows the GR2-9.3D-A to provide optimal stabilization in a wide range of shooting conditions.

Overall, the GR2-9.3D-A Cinema Shock Absorber is a high-quality stabilizer designed for professional photographers. It combines advanced vibration isolation technology, strong load-bearing capacity, superior durability, and user-friendly design to provide photographers with a stable and reliable shooting platform. Whether you're shooting on the ground or from the air, the GR2-9.3D-A helps photographers capture the best moments and create stunning cinematic work.
GR2-9.3D-A High-Performance Wire Rope Vibration Isolator for Professional Photographers 0

No.Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1GR2-12D-A125.8116.1
2GR2-9.3D-A9.38.48.84.0
3GR2-6.7D-A6.711.75.31.9
4GR2-4.9D-A4.915.73.51.2


GR2-9.3D-A High-Performance Wire Rope Vibration Isolator for Professional Photographers 1

No.Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1GR2-12D-A5.88.16.12.8
2GR2-9.3D-A4.910.95.31.9
3GR2-6.7D-A3.314.53.21.0
4GR2-4.9D-A2.219.11.90.5


GR2-9.3D-A High-Performance Wire Rope Vibration Isolator for Professional Photographers 2


No.Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1GR2-12D-A5.67.43.03.0
2GR2-9.3D-A4.09.91.81.8
3GR2-6.7D-A2.913.01.11.1
4GR2-4.9D-A2.017.30.50.5


* Unique Characteristics of Xi'an Hoan's Vibration Isolators *
* No creep or ageing.
* High internal damping.
* Very wide temperature range.
* Wide variety of possible fittings.
* Rapid and economical prototyping.
* Extremely rugged construction and long lifespan.
* Excellent combined shock and vibration isolation.
* Not affected by chemical agents, seawater, ozone, UV rays
