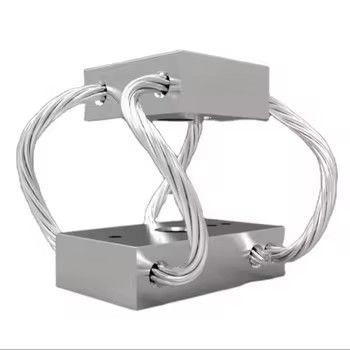

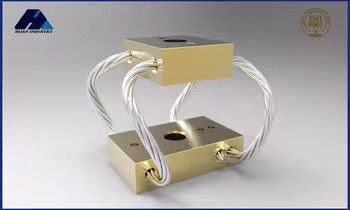

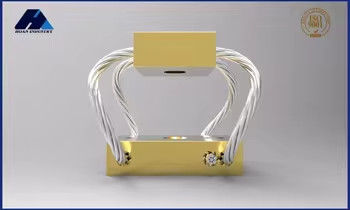

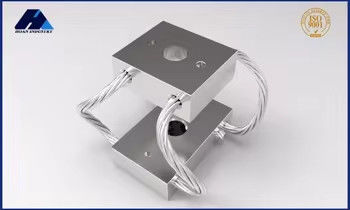

Name: GR2-4.9D-A Stainless Steel Wire Rope Vibration Isolator for Drones
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR2-4.9D-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR2-4.9D-A Stainless Steel Wire Rope Vibration Isolator for Drones

Helicopter Drones Wire Rope Vibration Isolator

Cameras Wire Rope Vibration Isolator

GR2 Series Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR2-4.9D-A

Request A Quote

Product Details

Condition:

New

Material:

Stainless Steel

Isolation Frequency:

5-50 Hz

Usage:

Industrial Machinery

Wire Rope Diameter:

3mm

Isolation Efficiency:

Up To 90%

Compression Ratio:

1:2

Width:

30mm

Working Temperatu:

: -55 ~ +120

Feature:

Vibration Isolation

Certifications:

ISO 9001

Shock Absorption:

Excellent

Shock Rsistance:

30g/11ms

Highlight:

Helicopter Drones Wire Rope Vibration Isolator

Cameras Wire Rope Vibration Isolator

GR2 Series Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

GR2-4.9D-A The Top-Notch Wire Rope Vibration Isolator for Helicopter Drones with Cameras GR2 Series

Product Specifications

Attribute	Value
Condition	New
Material	Stainless Steel
Isolation Frequency	5-50 Hz
Usage	Industrial Machinery
Wire Rope Diameter	3mm
Isolation Efficiency	Up to 90%
Compression Ratio	1:2
Width	30mm
Working Temperature	-55°C to +120°C
Feature	Vibration isolation
Certifications	ISO 9001
Shock Absorption	Excellent
Shock Resistance	30g/11ms

Product Description

GR2 Series

When building your own Camera Gimbal for Helicopter Drone Cameras, the GR Series cinema vibration isolators are the optimal choice for professional results.

The GR2-4.9D-A cinema vibration isolator is part of the GR2 family, specifically engineered for single use or constructing camera gimbals to absorb tensional forces caused by vehicle movement while stabilizing the camera.

With a maximum static load of 4.9N, this model is specially designed for helicopter drones equipped with cameras.

The GR2-4.9D-A effectively smooths out small rhythmic vibrations during motion while dampening sudden jolts from obstacles like stones or potholes. Constructed from stainless steel, this model offers superior waterproofing, corrosion resistance, and long-term durability.

GR2 series isolators are widely used in photographic equipment, aerial devices, communication apparatus, electronic sensing devices, mobile electronics, and camera stabilization systems.

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR2-12D-A	12	5.8	11	6.1
2	GR2-9.3D-A	9.3	8.4	8.8	4.0
3	GR2-6.7D-A	6.7	11.7	5.3	1.9
4	GR2-4.9D-A	4.9	15.7	3.5	1.2

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR2-12D-A	5.8	8.1	6.1	2.8
2	GR2-9.3D-A	4.9	10.9	5.3	1.9
3	GR2-6.7D-A	3.3	14.5	3.2	1.0
4	GR2-4.9D-A	2.2	19.1	1.9	0.5

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR2-12D-A	5.6	7.4	3.0	3.0
2	GR2-9.3D-A	4.0	9.9	1.8	1.8
3	GR2-6.7D-A	2.9	13.0	1.1	1.1
4	GR2-4.9D-A	2.0	17.3	0.5	0.5

Unique Characteristics

No creep or ageing
High internal damping
Very wide temperature range
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Resistant to chemical agents, seawater, ozone, and UV rays
