GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper

GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper

GR3-30D-A Wire Rope Vibration Isolator

Anti Interference Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR3-30D-A

Contact Us
Request A Quote

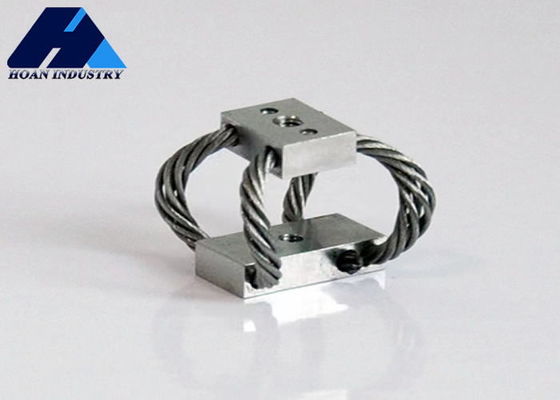

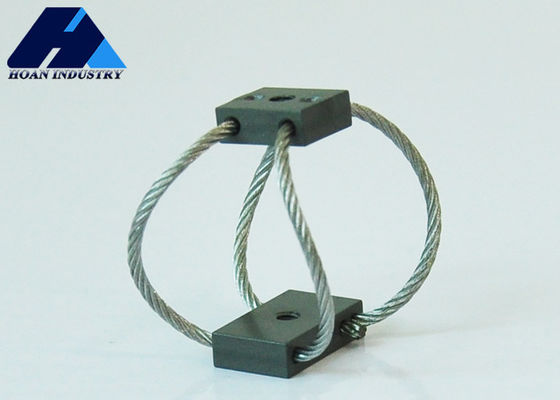

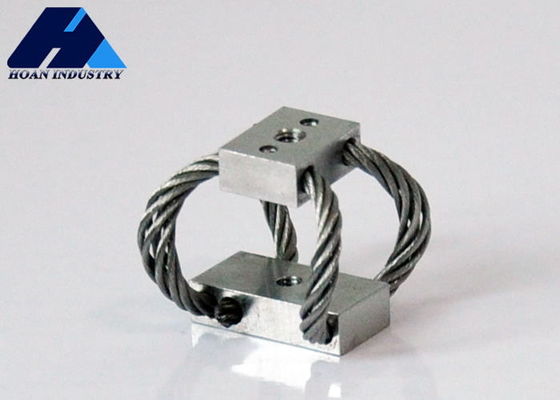

GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper
Product Details
Color:
Silver
Shock Absorption:
Up To 90%
Application:
Industrial, Aerospace, Automotive
Compression Ratio:
1.2:1
Mounting Orientation:
Vertical
Machinery Test Report:
Provided
Weight:
0.5kg
Temperature Range:
-40°F To 200°F
Product Keywords:
Wire Vibration Damper
Working Temperature:
-55 ~ +120
Material:
Stainless Steel
Structure:
Helical
Installation:
Wall Mounted
Highlight:

GR3-30D-A Wire Rope Vibration Isolator

,

Anti Interference Wire Rope Vibration Isolator

Payment & Shipping Terms
Minimum Order Quantity
4 piences
Delivery Time
7
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability
4，pience，7
RELATED PRODUCTS
Good price GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG online

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price
Good price GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support online

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price
Good price Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator online

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price
Good price Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator online

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description
GR3-30D-A Wire Rope Vibration Isolator
Advanced Anti-Interference Technology for Precise Angle Measurement
Product Specifications
Attribute Value
Color Silver
Shock Absorption Up to 90%
Application Industrial, Aerospace, Automotive
Compression Ratio 1.2:1
Mounting Orientation Vertical
Machinery Test Report Provided
Weight 0.5kg
Temperature Range -40°F to 200°F
Working Temperature -55°C to +120°C
Material Stainless Steel
Structure Helical
Installation Wall Mounted
Product Description
GR3 Series High-Precision Angle Sensors

The GR3-30D-A represents the pinnacle of the GR3 series, designed for demanding high-precision angle measurement applications across industrial automation, scientific research, and aerospace sectors.

Key Features
  • Advanced anti-interference technology filters vibration and environmental noise
  • High-strength aluminum alloy housing with special surface treatment
  • Excellent corrosion and wear resistance for harsh environments
  • Maintains measurement accuracy in complex motion states
  • Extended service life in demanding conditions
Performance Data
GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper 0
No. Model Max Static (N) Max Deflection (mm) Kv(Vibration) (KNm) Ks(shock) (KNm)
1 GR3-30D-A 30 7.1 24 12
2 GR3-22D-A 22 10.4 12 6.1
3 GR3-18D-A 18 14.2 8.4 3.5
4 GR3-11D-A 11 19.3 5.8 1.9
GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper 1
No. Model Max Static (N) Max Deflection (mm) Kv(Vibration) (KNm) Ks(shock) (KNm)
1 GR3-30D-A 12 9.4 14 5.3
2 GR3-22D-A 10 13.2 8.8 3.2
3 GR3-18D-A 6.7 17.3 5.8 1.8
4 GR3-11D-A 4.4 22.9 3.5 0.9
GR3-30D-A Wire Rope Vibration Isolator Stainless Steel Industrial Damper 2
No. Model Max Static (N) Max Deflection (mm) Kv(Vibration) (KNm) Ks(shock) (KNm)
1 GR3-30D-A 12 8.4 6.1 6.1
2 GR3-22D-A 8.5 11.9 3.5 3.5
3 GR3-18D-A 6.2 15.5 1.8 1.8
4 GR3-11D-A 4.4 20.6 1.1 1.1
Mounting Options

Mounting splint material: Stainless Steel or Aluminum

Surface Treatment Options for Aluminum Alloy Mounting Cleats
  • White Anodizing: Standard surface treatment that hardens aluminum while maintaining its natural color
  • Hard Anodizing: Enhanced surface treatment providing superior hardness with a darker finish, ideal for demanding applications

The GR3-30D-A high-precision angle sensor delivers reliable performance in challenging environments, from industrial settings to aerospace applications, ensuring accurate measurements where precision matters most.
