GR3-18D-A Camera Vibration Isolator 18N Static Load 10Hz Frequency

Name: GR3-18D-A Camera Vibration Isolator 18N Static Load 10Hz Frequency
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR3-18D-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR3-18D-A
MOQ:	4 piences
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Product Certification:

ISO 9001

Design Style:

Industrial

Working Temperatu:

: -55 ~ +120

Shape:

Cylindrical

Resonant Frequency:

10Hz

Width:

165mm

Natural Frequency:

10-100 Hz

Vibration Isolation:

Up To 90%

Function:

Return Air

Drawing Format:

DWG And PDF

Relative Product:

Backdraft Damper

Installation:

Wall Mounted

Supply Ability:

4，pience，7

Highlight:

GR3-18D-A Wire Rope Vibration Isolator

DWG PDF Wire Rope Vibration Isolator

Product Description

GR3-18D-A Wire Rope Vibration Isolator for Complex Filming Environments

Product Specifications

Attribute	Value
Product Certification	ISO 9001
Design Style	Industrial
Working Temperature	-55°C to +120°C
Shape	Cylindrical
Resonant Frequency	10Hz
Width	165mm
Natural Frequency	10-100 Hz
Vibration Isolation	Up to 90%
Function	Return Air
Drawing Format	DWG and PDF
Relative Product	Backdraft Damper
Installation	Wall Mounted

Product Description

GR3 Series
In today's era of high-quality imaging, stable equipment is essential for filmmaking, documentaries, and advertising. The GR series precision spring shock absorbers provide exceptional performance for building various Filming support systems.

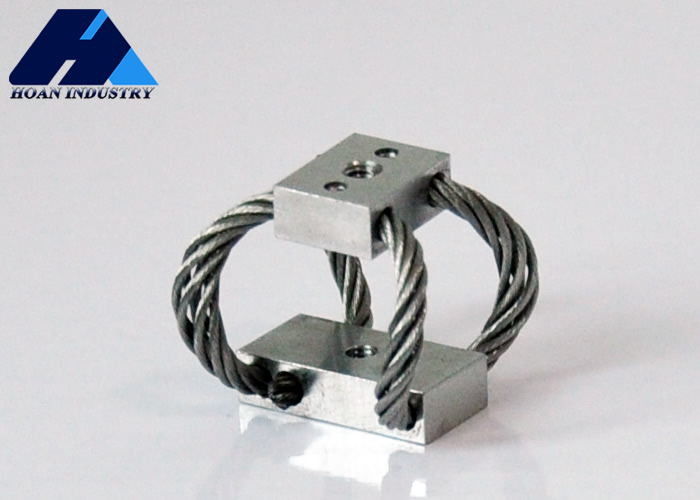

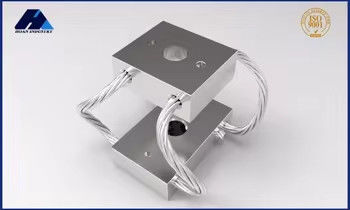

The GR3-18D-A precision spring shock absorber is specifically designed for camera stabilization platforms and hangers. It performs exceptionally well in complex filming environments, including moving vehicles and rough terrain.

With a maximum static load of 18N, this shock absorber effectively absorbs vibrations during motion, acting as a reliable stabilizer for camera equipment in challenging Filming conditions.

No.	Model	Max Static (N)	Max Deflection (mm)	Kv (Vibration) (KNm)	Ks (Shock) (KNm)
1	GR3-30D-A	30	7.1	24	12
2	GR3-22D-A	22	10.4	12	6.1
3	GR3-18D-A	18	14.2	8.4	3.5
4	GR3-11D-A	11	19.3	5.8	1.9

Material Options

Mounting splint material: Stainless Steel or Aluminum
Surface treatment options for aluminum alloy mounting cleats:
- White Anodizing: Standard surface treatment that maintains aluminum's natural color while increasing hardness
- Hard Anodizing: Enhanced surface treatment for extreme conditions, resulting in darker color and superior hardness

The GR3 series continues to evolve to meet increasing demands for Filming stability, adapting to more complex environments and higher performance requirements in the imaging industry.
