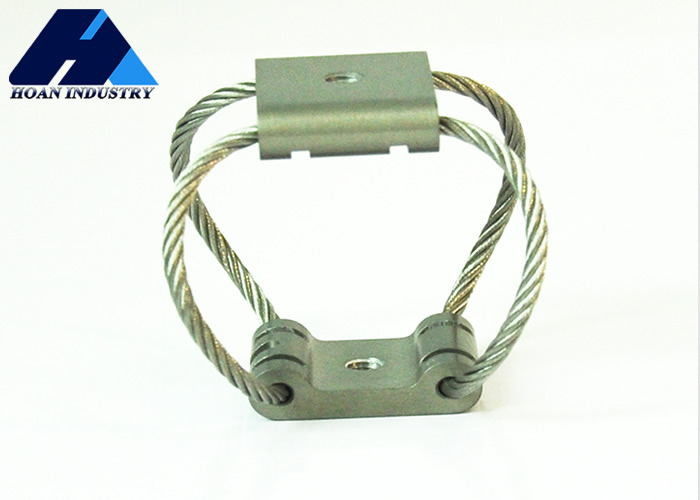

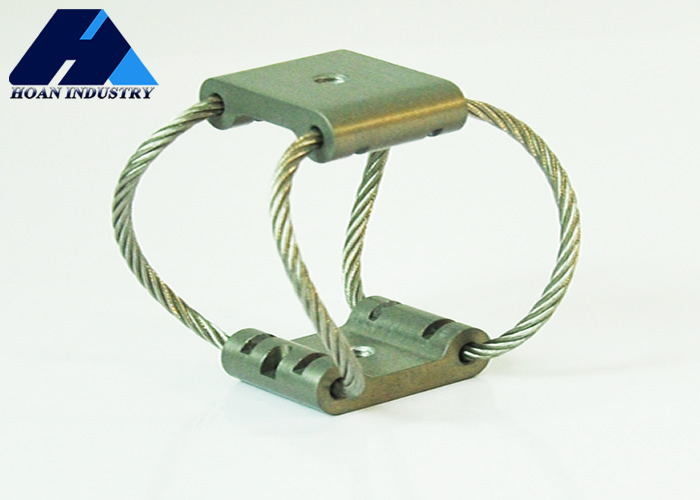

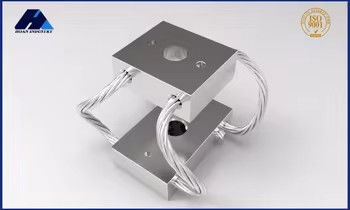

GR4-6.7D-A Wire Rope Vibration Isolator
Essential for equipment stability in industrial production, particularly in the metal industry and other demanding applications.
Product Specifications
| Attribute |
Value |
| Color |
Black |
| Installation Type |
Horizontal/Vertical |
| Drawing Format |
DWG and PDF |
| Model |
GR SERIES |
| Axial Stiffness |
50N/mm |
| Maintenance |
Low |
| Product Certification |
ISO 9001 |
| Shock Resistance |
30g/11ms |
| Damping Ratio |
0.5 |
| Mounting Orientation |
Vertical |
| Port |
Xi'an or Specified |
| Diameter |
Customized |
| Applicable Industries |
Building Material Shops, Energy & Mining |
| Length |
Customized |
| Accessories |
Net |
GR4 Series Vibration Isolators
In industrial production, vibrations from mechanical operation, electrical equipment, and fluid flow can cause serious damage to production equipment if left unchecked. GR4 series isolators absorb and isolate vibration when installed in key parts of equipment such as:
- Motor supports
- Pipe connections
- Machine bases
This vibration reduction extends equipment service life while maintaining production efficiency and product quality.
Industry Applications
Aerospace: Used in avionics and navigation systems to ensure reliability under extreme vibration conditions during take-off, flight, and landing.
Telecommunications: Installed in base station antennas and feeders to reduce vibration from wind and earthquakes, ensuring stable signal transmission.
Power Industry: Applied to generators and transformers to minimize vibration-induced displacement and damage, maintaining power grid stability.
Metallurgy: Used in furnace bodies and conveyor systems to absorb vibration and reduce thermal stress in high-temperature, heavy-duty environments.
Construction: Incorporated into seismic support systems for high-rise buildings and bridges to improve structural safety against wind and earthquake forces.
Technical Specifications
| No. |
Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 |
GR4-24D-A |
24 |
19.6 |
12 |
5.8 |
| 2 |
GR4-18D-A |
18 |
29.7 |
6 |
2.5 |
| 3 |
GR4-13D-A |
13 |
35.8 |
4.4 |
1.6 |
| 4 |
GR4-6.7D-A |
6.7 |
49.3 |
2.2 |
0.7 |
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a manufacturer, producing our products in our own facilities to ensure quality control and offer competitive pricing with customized solutions.
Can you customize products for us?
Yes, we can customize products to meet your specific requirements. Contact us with your needs for a tailored solution.
What is the lead time?
Samples typically take 2-5 days. Mass production takes 7-20 days, with faster delivery when we have stock available.
Can I get samples before placing an order?
Yes, sample orders are accepted.
How is your shipping?
Worldwide shipping service is available. Please contact us before ordering as shipping costs vary.
Do you offer discounts for bulk orders?
Yes, we offer quantity discounts. The percentage varies based on order volume.
