Wire Rope Vibration Isolator GR5-80D-A Line Dampers for Camera Heads and Crane Stabilizers Made of Stainless Steel Flexible Design for Complex Filming Environments Xi an Hoan

Name: Wire Rope Vibration Isolator GR5-80D-A Line Dampers for Camera Heads and Crane Stabilizers Made of Stainless Steel Flexible Design for Complex Filming Environments Xi an Hoan
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR5-80D-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR5-80D-A
MOQ:	4 piences
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Structure:

Helical

Wire Rope Diameter:

1/4 Inch

Material:

Stainless Steel

Wire Rope Construction:

7x19

Marketing Type:

New Product 2020

Condition:

New

Maximum Deflection:

10mm

Vibration Frequency:

5Hz To 100Hz

Applications:

Industrial Engine Mounts

Compression Ratio:

1.2:1

Installation Method:

Screw Mounting

Isolation Frequency Range:

5Hz To 100Hz

Length:

100-1000mm

Port:

Xi'an

Number Of Strands:

Supply Ability:

4，pience，7

Highlight:

Flexible Design Wire Rope Vibration Isolator

Stainless Steel Wire Rope Vibration Isolator

Camera Heads Wire Rope Vibration Isolator

Product Description

GR5 Series

Xi'an Hoan's GR5 series line dampers are a high-performance stabilizer that is becoming the go-to choice for professional photographers and videographers to build their own camera heads and crane stabilizers.

Xi'an Hoan's GR5 series line dampers stand out for their unique design and superior performance. The series is made of high-quality stainless steel materials, which ensures the durability and reliability of the products. Each line damper is carefully wound from a wire rope with a diameter of 4.0mm, a design that not only gives the product enough strength to bear the weight of the camera, but also provides the necessary flexibility to work stably in a variety of complex Filming environments

The GR5 series line dampers are designed to be flexible and can be easily combined with various types of camera pans and crane stabilizers. Whether it's a single-axis stabilizer, a three-axis stabilizer or a professional-grade crane stabilizer, the GR5 series provides stable support to meet the needs of photographers in different Filming situations.

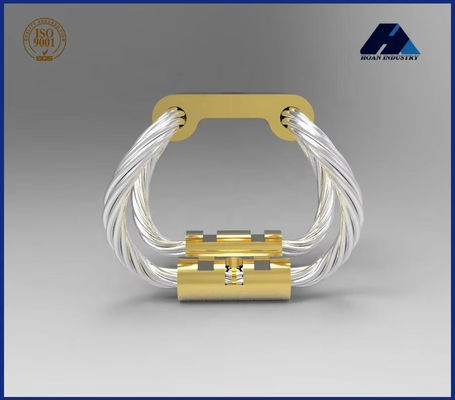

Wire Rope Vibration Isolator GR5-80D-A Line Dampers for Camera Heads and Crane Stabilizers Made of Stainless Steel Flexible Design for Complex Filming Environments Xi an Hoan 0

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	80	19.6	22	11
2	GR5-38D-A	38	28.7	11	4.4
3	GR5-27D-A	27	34.8	7.9	3.2
4	GR5-16D-A	16	49.3	4.4	1.4

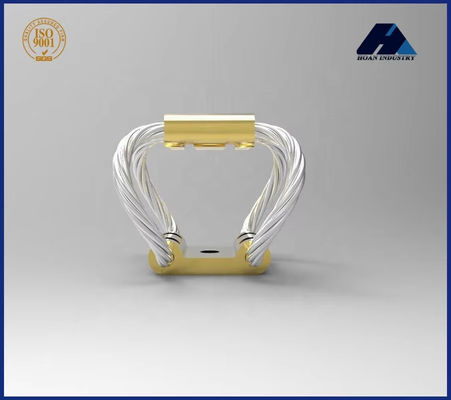

Wire Rope Vibration Isolator GR5-80D-A Line Dampers for Camera Heads and Crane Stabilizers Made of Stainless Steel Flexible Design for Complex Filming Environments Xi an Hoan 1

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	24	18.3	12	6.1
2	GR5-38D-A	13	28.4	5.3	2.3
3	GR5-27D-A	11	36.1	3.6	1.4
4	GR5-16D-A	6.7	53.8	1.9	0.7

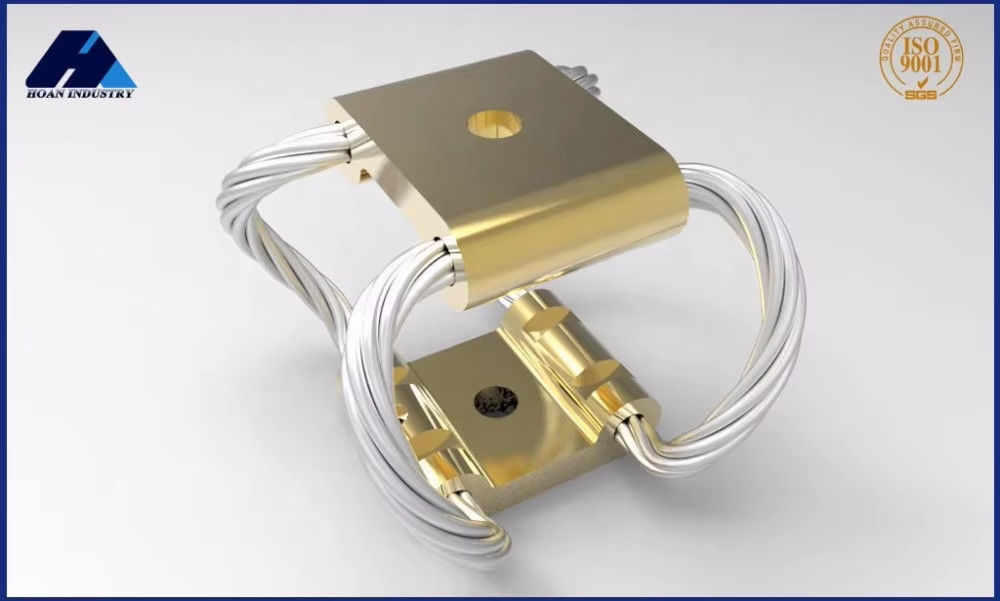

Wire Rope Vibration Isolator GR5-80D-A Line Dampers for Camera Heads and Crane Stabilizers Made of Stainless Steel Flexible Design for Complex Filming Environments Xi an Hoan 2

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR5-80D-A	20	16.5	4.4	4.4
2	GR5-38D-A	13	25.7	2.1	2.1
3	GR5-27D-A	11	32.5	1.4	1.4
4	GR5-16D-A	6.7	48.5	0.7	0.7

* The material of the mounting splint*

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy mounting cleats *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
