Camera Vibration Isolator
Created with Pixso.

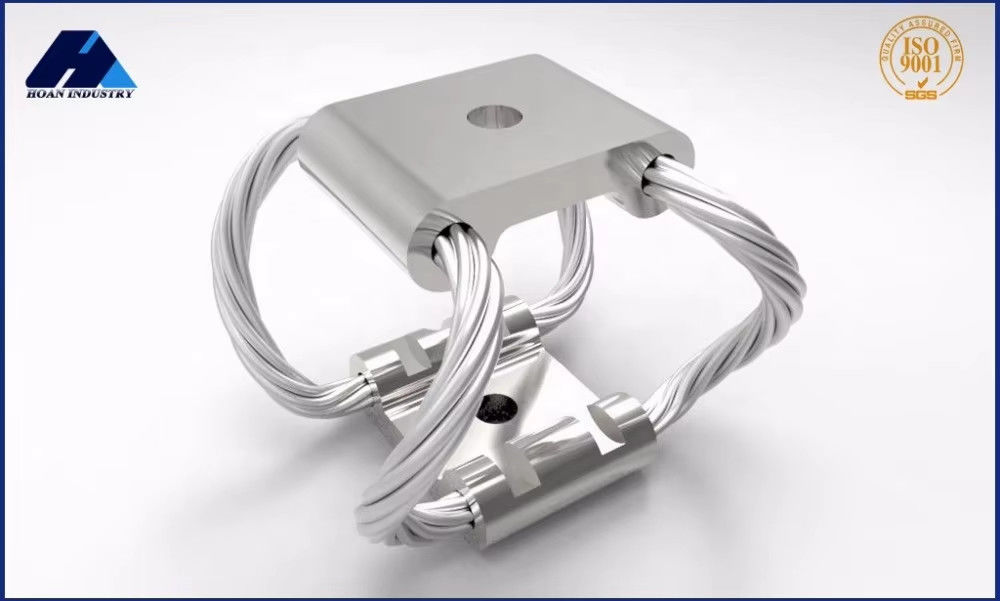

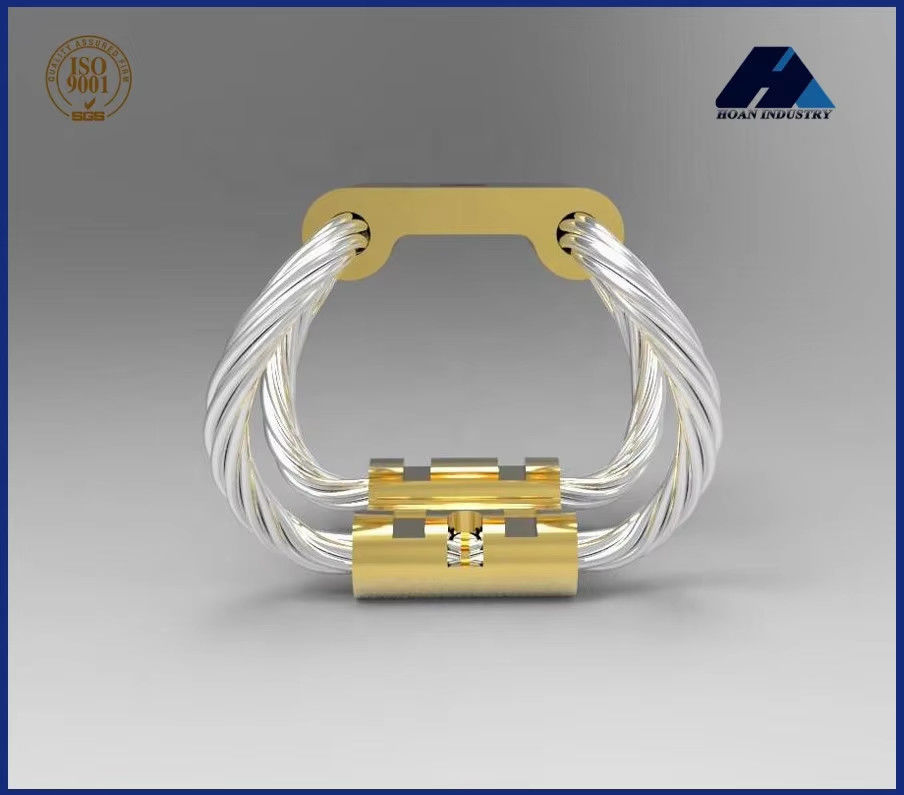

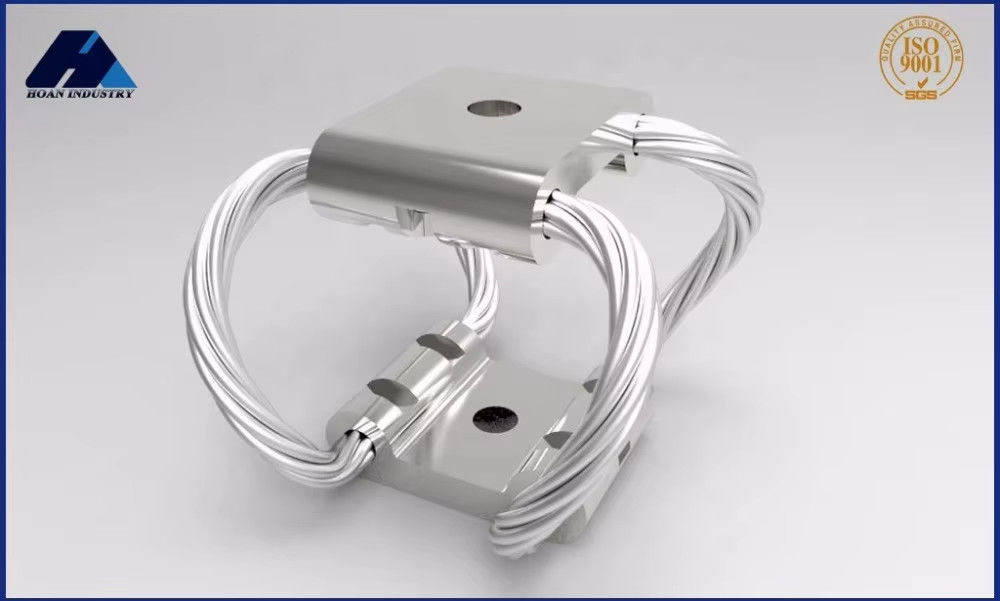

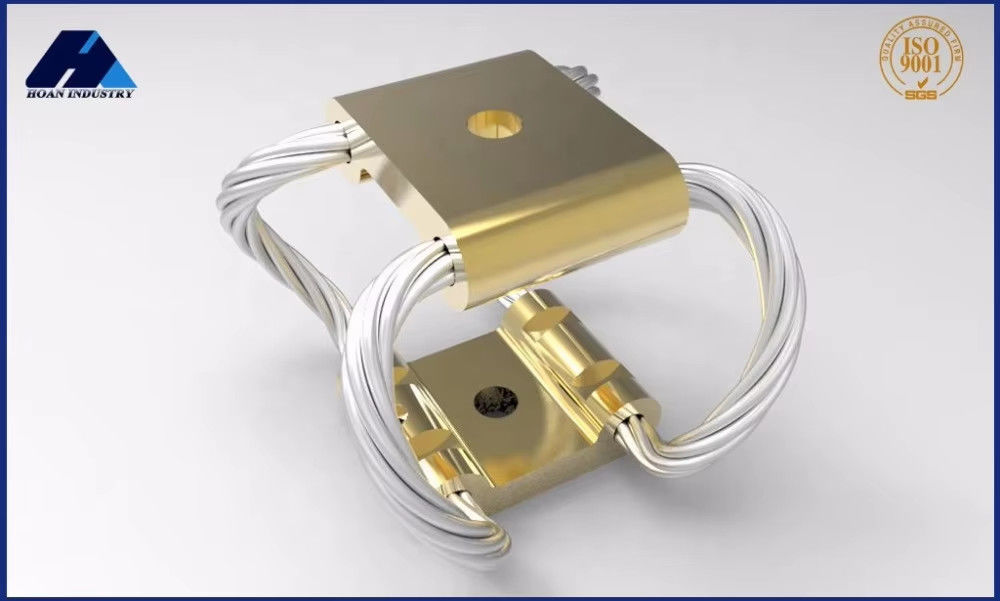

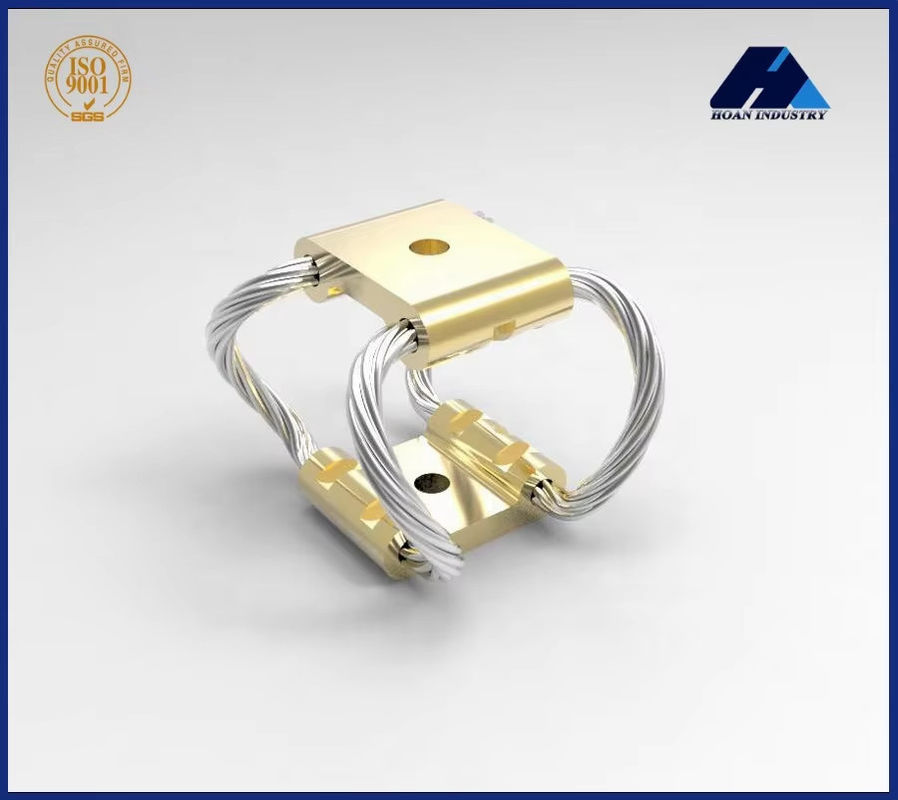

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Brand Name: Hoan
Model Number: GR5-27D-A
MOQ: 4 piences
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4,pience,7
Detail Information
Place of Origin:
Shaanxi, China
Certification:
ISO9001:2015
Machinery Test Report:
Not Available
Size:
Custom Size
Resonant Frequency:
10Hz
Vibration Isolation:
Up To 90%
Shock Rsistance:
20g/11ms
Vibration Frequency:
10-100Hz
Strand Construction:
7 X 19
Characteristic:
Wide Working Frequency, Long Life Span
Mounting Orientation:
Vertical
Port:
Xi'an
After Warranty Service:
Online Support
Shock Resistance:
30g/11ms
Isolator Type:
Helical
Showroom Location:
None
Supply Ability:
4,pience,7
Highlight:

GR5-27D-A Wire Rope Vibration Isolator

,

GR5-27D-A Vibration Isolator

,

Wire Rope Vibration Isolator

Product Description

GR5 Series

Xi'an Hoan's GR5 series line dampers are a high-performance stabilizer that is becoming the go-to choice for professional photographers and videographers to build their own camera heads and crane stabilizers.



The GR5 series line dampers are equipped with a sophisticated damping system that automatically adjusts the damping force according to different shooting conditions, ensuring that the camera remains stable in all conditions. Whether you're driving on bumpy roads or shooting in fast-moving scenes, the GR5 Series delivers a smooth picture that dramatically reduces image blur caused by vibration.



Xi'an Hoan's GR5 series line dampers have become an essential part of professional photographers and videographers building stable shooting systems due to their superior performance, flexible adjustability, and wide applicability. With the continuous development of technology, we have reason to believe that the GR5 series will play an even more important role in the field of photography and videography in the future.

Upgrade Your Photography and Videography with  GR5-27D-A Wire Rope Vibration Isolator 0

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR5-80D-A 80 19.6 22 11
2 GR5-38D-A 38 28.7 11 4.4
3 GR5-27D-A 27 34.8 7.9 3.2
4 GR5-16D-A 16 49.3 4.4 1.4



Upgrade Your Photography and Videography with  GR5-27D-A Wire Rope Vibration Isolator 1

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR5-80D-A 24 18.3 12 6.1
2 GR5-38D-A 13 28.4 5.3 2.3
3 GR5-27D-A 11 36.1 3.6 1.4
4 GR5-16D-A 6.7 53.8 1.9 0.7





Upgrade Your Photography and Videography with  GR5-27D-A Wire Rope Vibration Isolator 2

No. Model

Max Static Load

(N)

Max Deflection

(mm)

Kv(Vibration)

(KNm)

Ks(shock)

(KNm)

1 GR5-80D-A 20 16.5 4.4 4.4
2 GR5-38D-A 13 25.7 2.1 2.1
3 GR5-27D-A 11 32.5 1.4 1.4
4 GR5-16D-A 6.7 48.5 0.7 0.7



* The material of the mounting splint*

Stainless Steel or Aluminum can be selected

* Surface treatment options for aluminum alloy mounting cleats *

* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
