Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR6-142D-A
GR6 Series

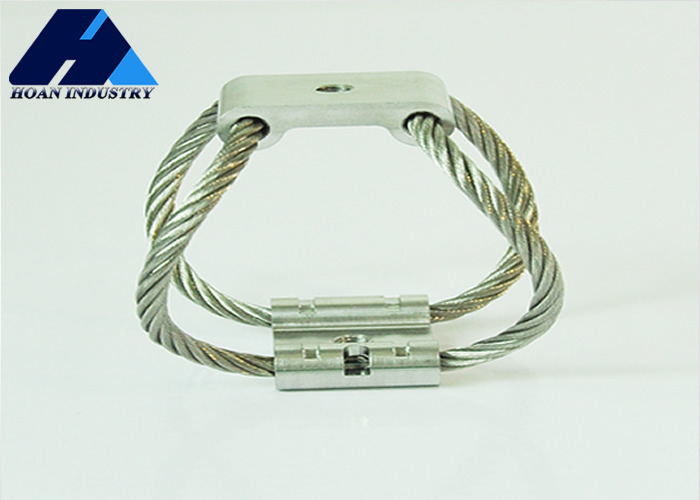

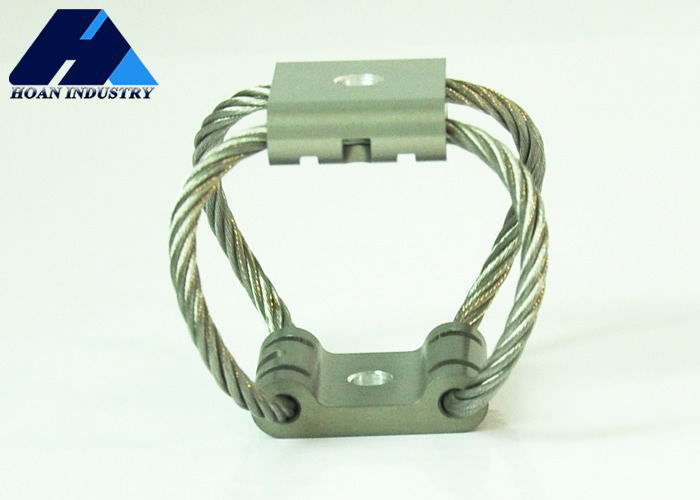

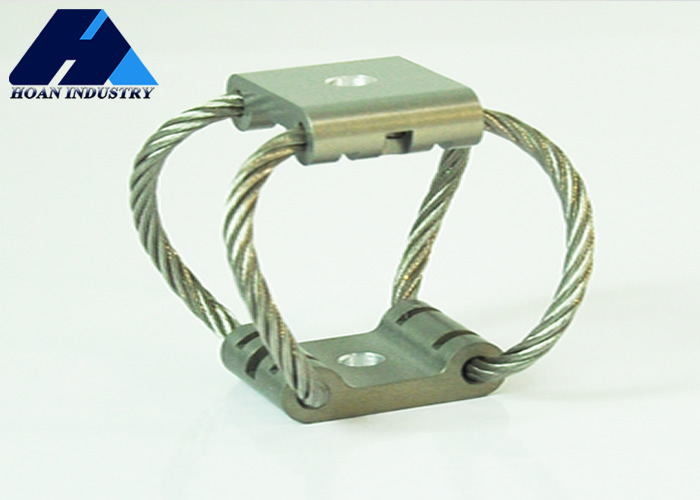

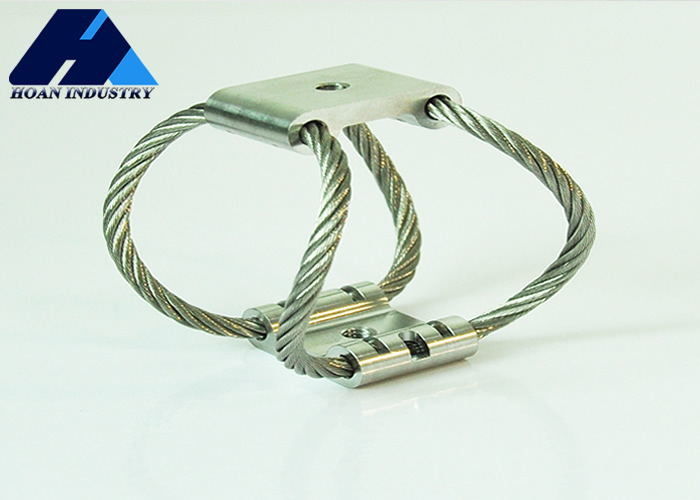

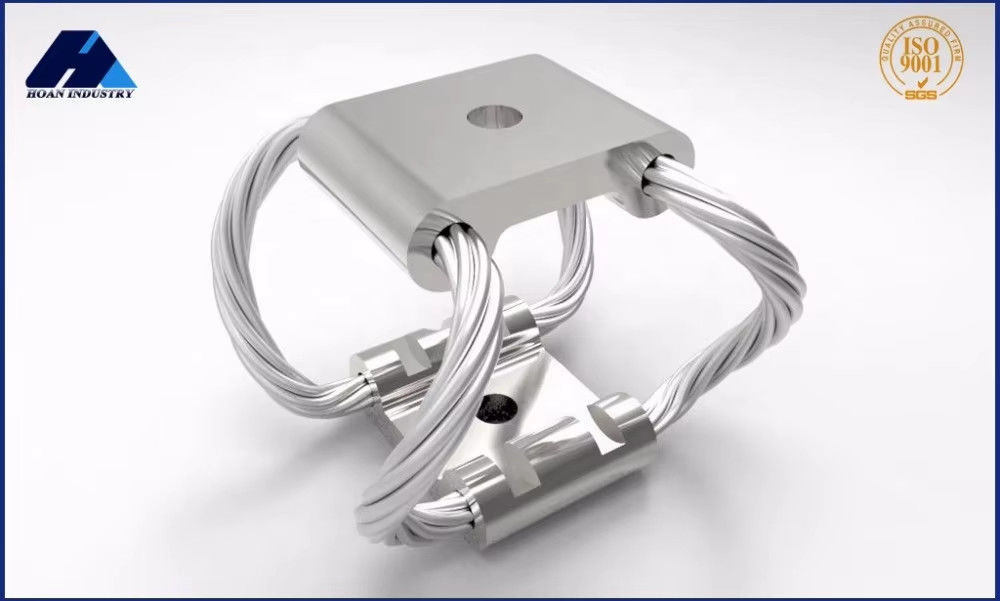

The GR Series Isolator's wire rope is the core component, with a diameter of 4.8 mm that has been carefully calculated and designed to withstand static loads of up to 142N. This design not only ensures the stability of the vibration isolator when subjected to heavy loads, but also effectively absorbs and reduces the interference caused by vibration, thereby improving the quality of shooting.
The stainless steel material of the vibration isolator ensures its durability in all climatic conditions. Whether it's a humid environment or extreme temperature changes, the GR Series isolators maintain their performance and are not prone to rust, which is especially important for outdoor shooting.
GR Series Isolators are designed with the user experience in mind, and the installation process is quick and easy, without the need for specialized tools or complex setup. In addition, its modular design facilitates later maintenance and replacement of components.
Xi'an Hoan's GR Series Wire Rope Isolators have become the stabilizing device of choice for professional photographers and videographers in a variety of shooting environments due to their superior stability, durability and adaptability. With the continuous expansion of application fields, the GR series vibration isolators will continue to play their leading role in the field of stabilized image technology to provide users with a better shooting experience.
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 142 | 22.1 | 32 | 16 |
| 2 | GR6-93D-A | 93 | 29.5 | 20 | 9.6 |
| 3 | GR6-67D-A | 67 | 37.6 | 15 | 5.3 |
| 4 | GR6-36D-A | 36 | 51.6 | 7.9 | 2.6 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 22.9 | 16 | 7.9 |
| 2 | GR6-93D-A | 33 | 30.5 | 9.6 | 5.3 |
| 3 | GR6-67D-A | 22 | 38.1 | 7.9 | 2.8 |
| 4 | GR6-36D-A | 13 | 53.3 | 3.5 | 1.2 |
| No. | Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KNm) |
Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 20.6 | 7.9 | 7.9 |
| 2 | GR6-93D-A | 31 | 27.4 | 4.4 | 4.4 |
| 3 | GR6-67D-A | 22 | 34.3 | 2.6 | 2.6 |
| 4 | GR6-36D-A | 16 | 48.0 | 1.6 | 1.6 |
