Name: GR6-142D-A Wire Rope Vibration Isolator 142N Load Wall Mounted
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-142D-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR6-142D-A Wire Rope Vibration Isolator 142N Load Wall Mounted

Modular Wire Rope Vibration Isolator

Easy Maintenance Wire Rope Vibration Isolator

Replacement Wire Rope Vibration Isolator

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR6-142D-A

Request A Quote

Product Details

Number Of Strands:

Working Temperatu:

: -55 ~ +120

Usage:

Vacuum Pump

Showroom Location:

None

Isolation Efficiency:

90%

Shock Absorption:

Yes

Axial Stiffness:

50N/mm

Machinery Test Report:

Not Available

Strand Construction:

7 X 19

Color:

Silver

Wire Rope Material:

Galvanized Steel

Certifications:

ISO 9001:2015

Marketing Type:

New Product 2024

Product Load Capacity:

Customizable

Installation:

Wall Mounted

Highlight:

Modular Wire Rope Vibration Isolator

Easy Maintenance Wire Rope Vibration Isolator

Replacement Wire Rope Vibration Isolator

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

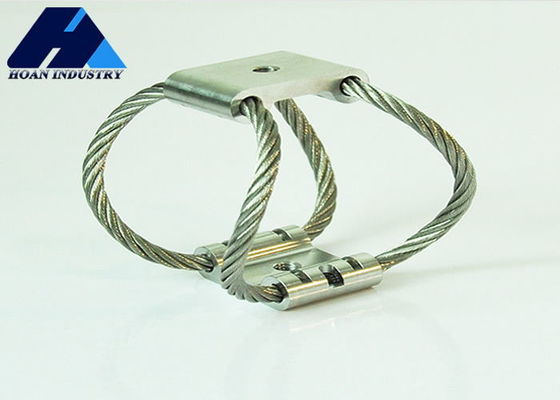

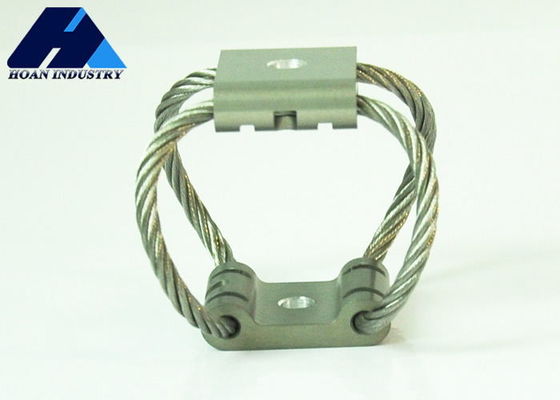

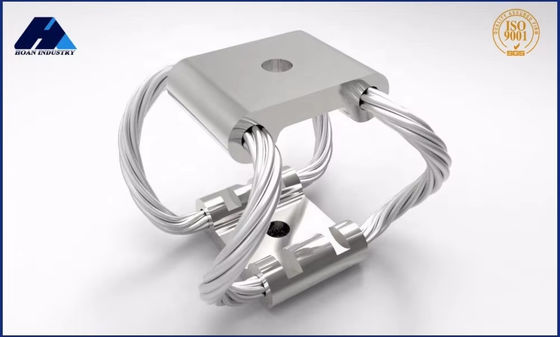

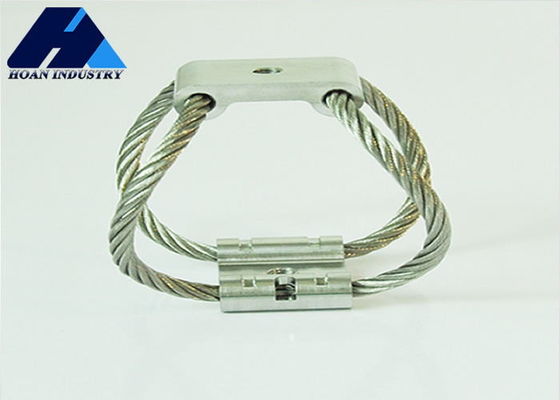

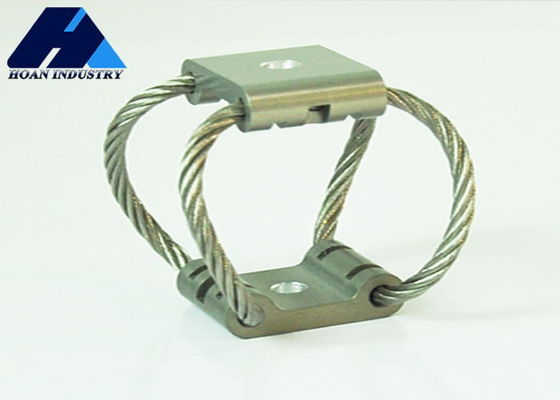

GR6-142D-A Modular Wire Rope Vibration Isolator for Easy Maintenance and Replacement

Product Specifications

Attribute	Value
Number Of Strands	7
Working Temperature	-55°C to +120°C
Usage	Vacuum pump
Isolation Efficiency	90%
Shock Absorption	Yes
Axial Stiffness	50N/mm
Strand Construction	7 x 19
Color	Silver
Wire Rope Material	Galvanized Steel
Certifications	ISO 9001:2015
Product Load Capacity	Customizable
Installation	Wall Mounted

Product Description

GR6 Series

The GR Series Isolator features a 4.8mm diameter wire rope core, engineered to withstand static loads up to 142N. This robust design ensures stability under heavy loads while effectively absorbing and reducing vibration interference.

Constructed from stainless steel, these isolators maintain performance in all climatic conditions, from humid environments to extreme temperature variations, with excellent resistance to rust.

The modular design enables quick installation without specialized tools and simplifies maintenance and component replacement. These features make the GR Series ideal for professional applications requiring superior stability and durability.

Technical Specifications

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR6-142D-A	142	22.1	32	16
2	GR6-93D-A	93	29.5	20	9.6
3	GR6-67D-A	67	37.6	15	5.3
4	GR6-36D-A	36	51.6	7.9	2.6

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR6-142D-A	40	22.9	16	7.9
2	GR6-93D-A	33	30.5	9.6	5.3
3	GR6-67D-A	22	38.1	7.9	2.8
4	GR6-36D-A	13	53.3	3.5	1.2

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KNm)	Ks(shock) (KNm)
1	GR6-142D-A	40	20.6	7.9	7.9
2	GR6-93D-A	31	27.4	4.4	4.4
3	GR6-67D-A	22	34.3	2.6	2.6
4	GR6-36D-A	16	48.0	1.6	1.6

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer with our own production facilities, ensuring full quality control and competitive pricing for customized solutions.

Q: Can you customize products for us?

A: Yes, we can customize products to meet your specific requirements. Contact us with your needs for a tailored solution.

Q: What is the lead time?

A: Samples typically take 2-5 days. Mass production usually requires 7-20 days, with faster delivery when stock is available.

Q: Can I get samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping is available. Please contact us before ordering as shipping costs vary.

Q: Do you offer discounts for bulk orders?

A: Yes, we offer quantity discounts. The percentage varies based on order volume.
