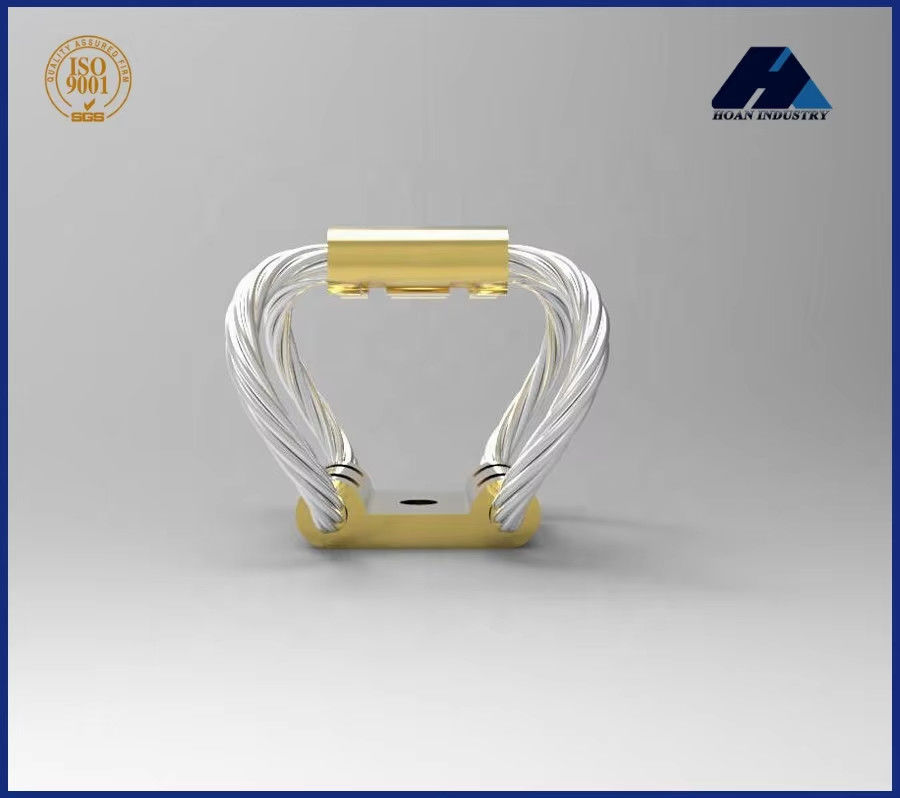

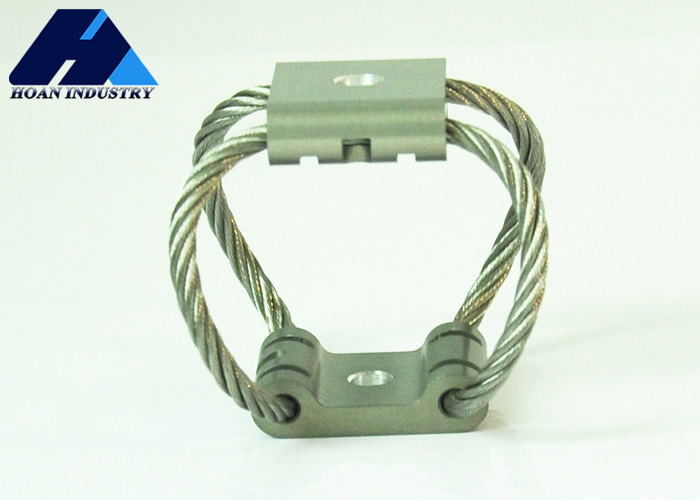

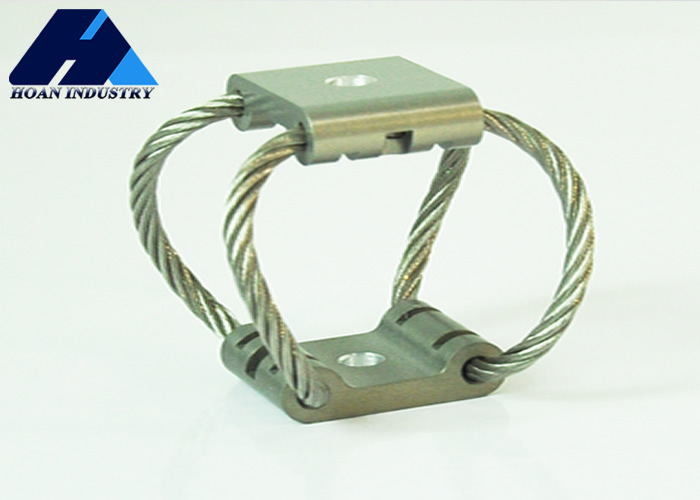

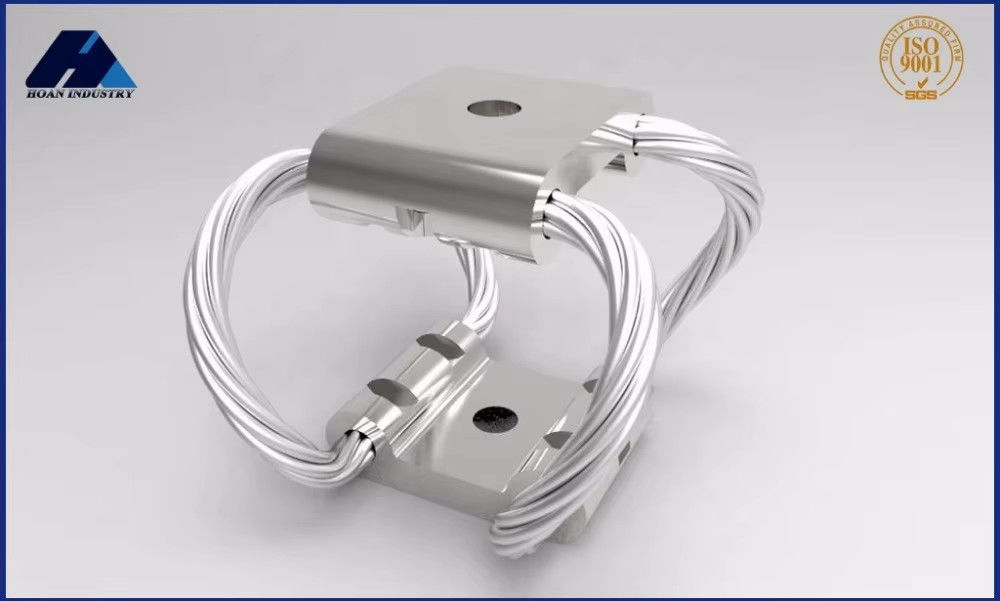

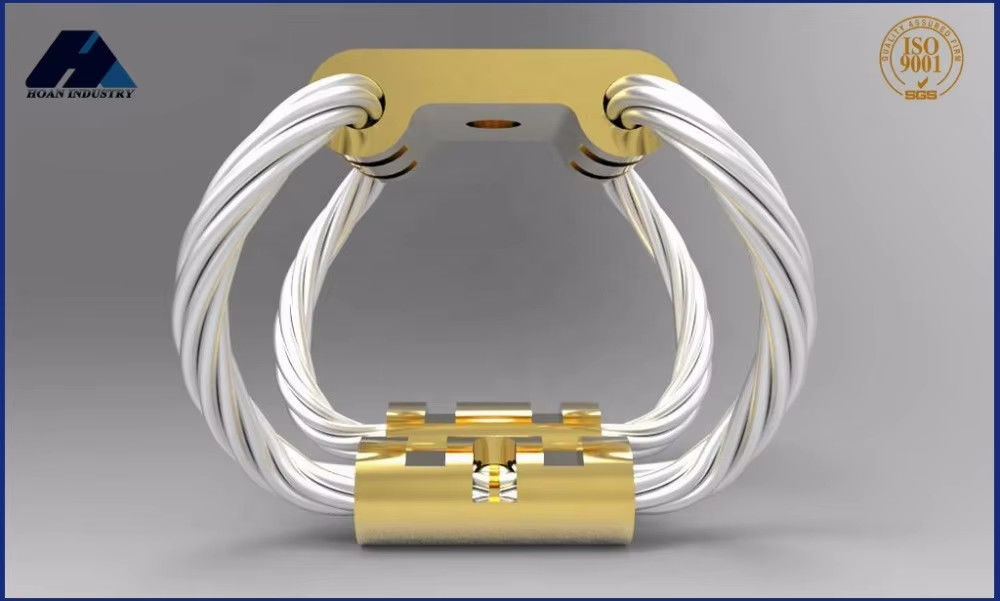

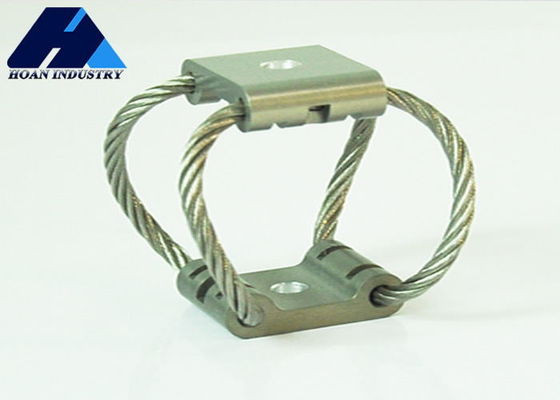

GR6-93D-A Wire Rope Vibration Isolator for Industrial Machinery

Name: GR6-93D-A Wire Rope Vibration Isolator for Industrial Machinery
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-93D-A
Availability: InStock

Brand Name:	Hoan
Model Number:	GR6-93D-A
MOQ:	4 piences
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	4，pience，7

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi, China

Certification:

ISO9001:2015

Weight:

0.2kg

Operating Temperature:

-40°C To 100°C

Temperature Range:

-40°F To 200°F

Model:

JGX

Installation Type:

Vertical

Wire Rope Material:

Galvanized Steel

Compression Ratio:

1:2

Isolation Frequency:

10Hz

Condition:

New

Strand Construction:

7 X 19

Resonant Frequency:

5-10HZ

Usage:

Industrial Machinery

Noise Reduction:

Yes

Port:

Xi'an

Type:

Cable Mount

Supply Ability:

4，pience，7

Highlight:

Filming Wire Rope Vibration Isolator

GR6-93D-A Wire Rope Vibration Isolator

Photography Wire Rope Vibration Isolator

Product Description

GR6-93D-A The Ultimate Wire Rope Vibration Isolator for Photography and Filming

Product Specifications

Weight	0.2kg
Operating Temperature	-40°C to 100°C
Temperature Range	-40°F to 200°F
Model	JGX
Installation Type	Vertical
Wire Rope Material	Galvanized Steel
Compression Ratio	1:2
Isolation Frequency	10Hz
Condition	New
Strand Construction	7 x 19
Resonant Frequency	5-10HZ
Usage	Industrial Machinery
Noise Reduction	Yes
Port	Xi'an
Type	Cable Mount

Product Description

GR6 Series

GR Series isolators effectively cancel small vibrations, whether rhythmic vibrations during travel shoots or sudden shocks from rough terrain. This stability is essential for photographers requiring high clarity and smooth images.

In film production, GR Series isolators enable smooth camera movement and reduce shake, crucial for immersive viewing experiences during action sequences. For drone aerial photography, they stabilize images during high-speed flight or complex environments.

Industrial applications include factory line monitoring and equipment inspection, where isolators provide stable image acquisition for accurate fault diagnosis.

No.	Model	Max Static Load(N)	Max Deflection(mm)	Kv(Vibration)(KNm)	Ks(shock)(KNm)
1	GR6-142D-A	142	22.1	32	16
2	GR6-93D-A	93	29.5	20	9.6
3	GR6-67D-A	67	37.6	15	5.3
4	GR6-36D-A	36	51.6	7.9	2.6

Mounting Splint Options

Material options: Stainless Steel or Aluminum

Aluminum alloy surface treatments:

White Anodizing: Standard treatment that hardens the aluminum surface while maintaining its natural color
Hard Anodizing: Creates a darker, significantly harder surface for demanding applications
