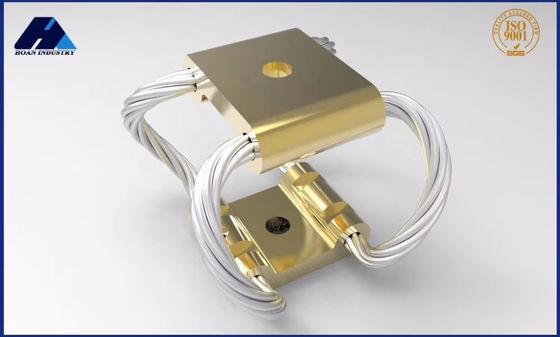

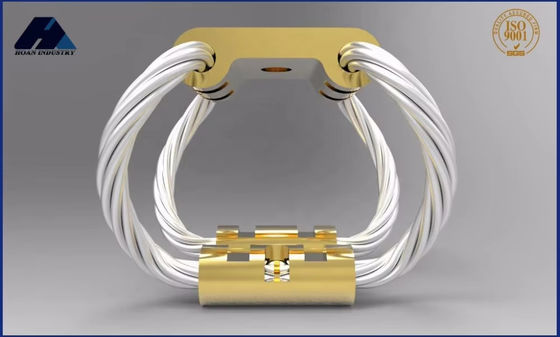

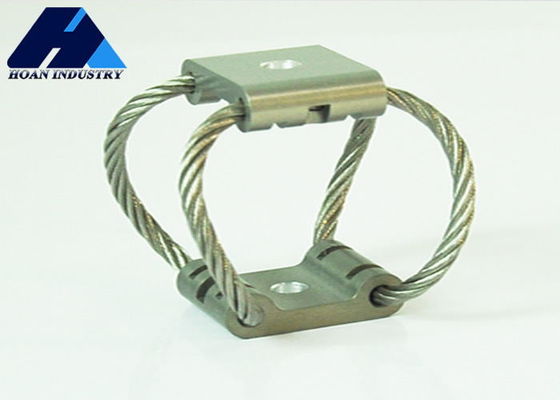

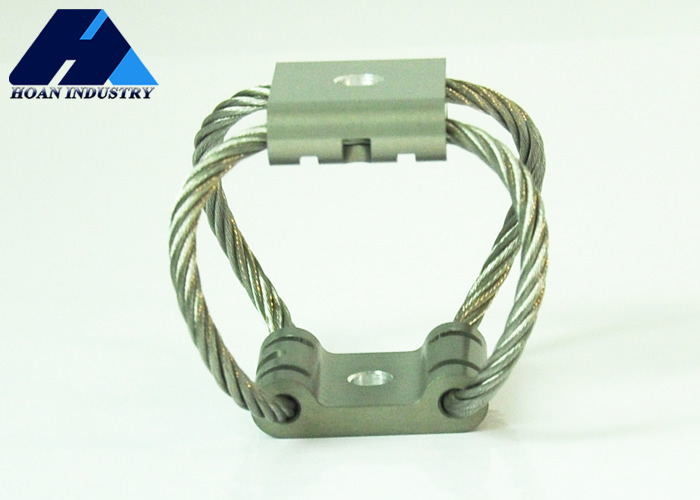

Name: GR6-36D-A Wire Rope Vibration Isolator 100kg Load Capacity
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR6-36D-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR6-36D-A Wire Rope Vibration Isolator 100kg Load Capacity

Green Materials Wire Rope Vibration Isolators

GR6-36D-A Wire Rope Vibration Isolators

Environmental Awareness Wire Rope Vibration Isolators

Place of Origin:

Shaanxi, China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR6-36D-A

Request A Quote

Product Details

Overall Width:

50mm

Port:

Xi'an Or Specified

Axial Stiffness:

50N/mm

Wire Rope Diameter:

3-10 Mm

Design Style:

Industrial

Relative Product:

Backdraft Damper

Operating Temperature:

-40°C To 80°C

Mounting Holes:

Mounting Type:

Threaded

Load Range:

5，6KG

Load Capacity:

100kg

Function:

Return Air

Shape:

Circular

Vibration Frequency:

10-100Hz

Highlight:

Green Materials Wire Rope Vibration Isolators

GR6-36D-A Wire Rope Vibration Isolators

Environmental Awareness Wire Rope Vibration Isolators

Payment & Shipping Terms

Minimum Order Quantity

4 piences

Delivery Time

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

4，pience，7

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

GR6-36D-A Wire Rope Vibration Isolators

Green Materials and Manufacturing Processes for Environmental Awareness

Product Specifications

Attribute	Value
Overall Width	50mm
Port	Xi'an or Specified
Axial Stiffness	50N/mm
Wire Rope Diameter	3-10 mm
Design Style	Industrial
Related Product	Backdraft Damper
Operating Temperature	-40°C to 80°C
Mounting Holes	M8
Mounting Type	Threaded
Load Range	5-6KG
Load Capacity	100kg
Function	Return Air
Shape	Circular
Vibration Frequency	10-100Hz

Product Description

GR6 Series isolators excel at canceling out small vibrations, providing essential stability for applications requiring high precision and smooth operation. These vibration isolators are ideal for professional photography, scientific research, and industrial applications where equipment stability is critical.

Key Applications

Professional photography - maintains image stability for high-quality clarity in both studio and outdoor environments
Scientific research - ensures stable, reliable data collection in geophysical exploration and environmental monitoring
Industrial equipment - protects sensitive instruments from vibration damage in harsh operating conditions

Technical Specifications

No.	Model	Max Static Load(N)	Max Deflection(mm)	Kv(Vibration)(KNm)	Ks(shock)(KNm)
1	GR6-142D-A	142	22.1	32	16
2	GR6-93D-A	93	29.5	20	9.6
3	GR6-67D-A	67	37.6	15	5.3
4	GR6-36D-A	36	51.6	7.9	2.6

No.	Model	Max Static Load(N)	Max Deflection(mm)	Kv(Vibration)(KNm)	Ks(shock)(KNm)
1	GR6-142D-A	40	22.9	16	7.9
2	GR6-93D-A	33	30.5	9.6	5.3
3	GR6-67D-A	22	38.1	7.9	2.8
4	GR6-36D-A	13	53.3	3.5	1.2

No.	Model	Max Static Load(N)	Max Deflection(mm)	Kv(Vibration)(KNm)	Ks(shock)(KNm)
1	GR6-142D-A	40	20.6	7.9	7.9
2	GR6-93D-A	31	27.4	4.4	4.4
3	GR6-67D-A	22	34.3	2.6	2.6
4	GR6-36D-A	16	48.0	1.6	1.6

Mounting Splint Material Options

Stainless Steel or Aluminum can be selected

Surface Treatment Options for Aluminum Alloy Mounting Cleats

White Anodizing: Standard surface treatment that hardens the aluminum while maintaining its natural color
Hard Anodizing: Provides significantly increased hardness with a darker finish, recommended for demanding operating conditions
