Place of Origin:
Shaanxi, China
Brand Name:
Hoan
Certification:
ISO9001:2015
Model Number:
GR6-36D-A

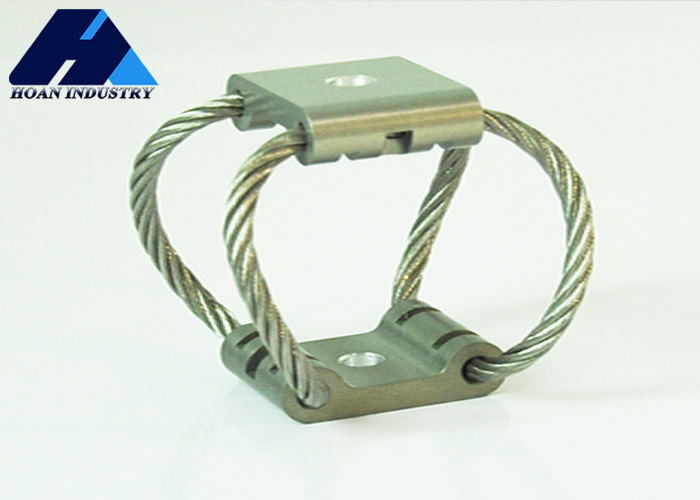

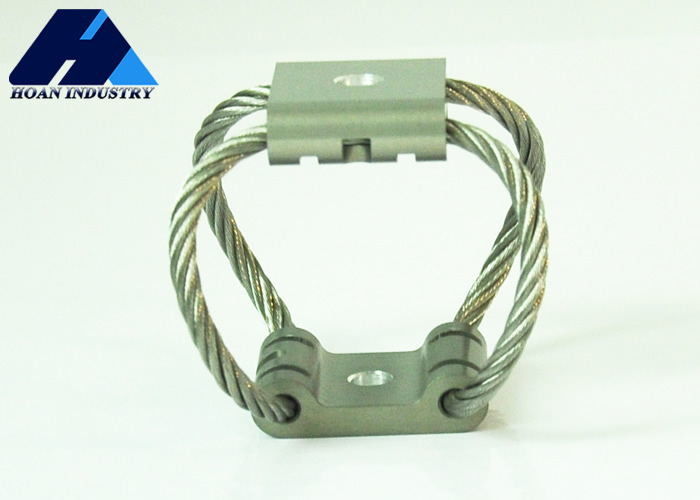

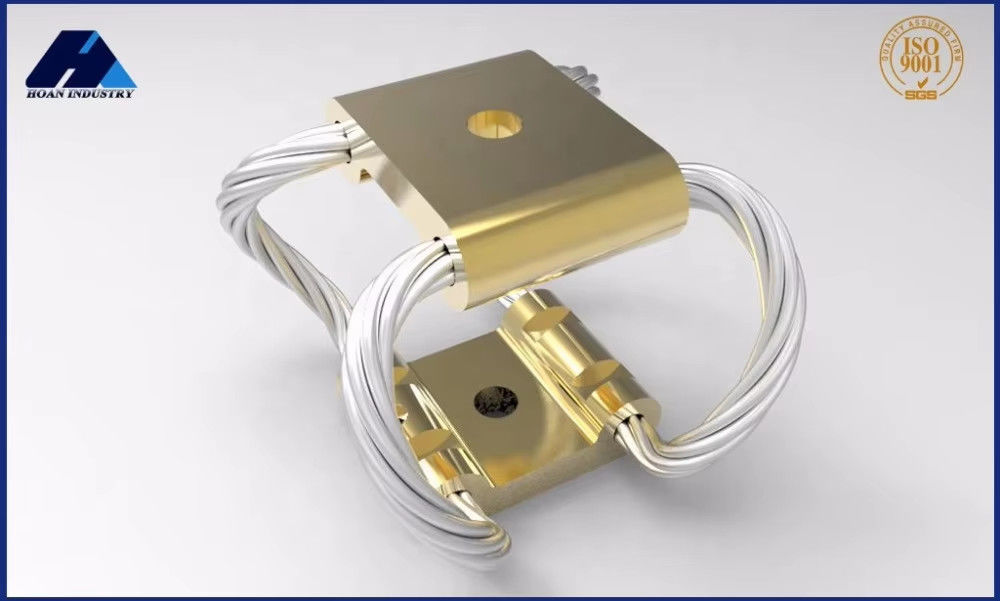

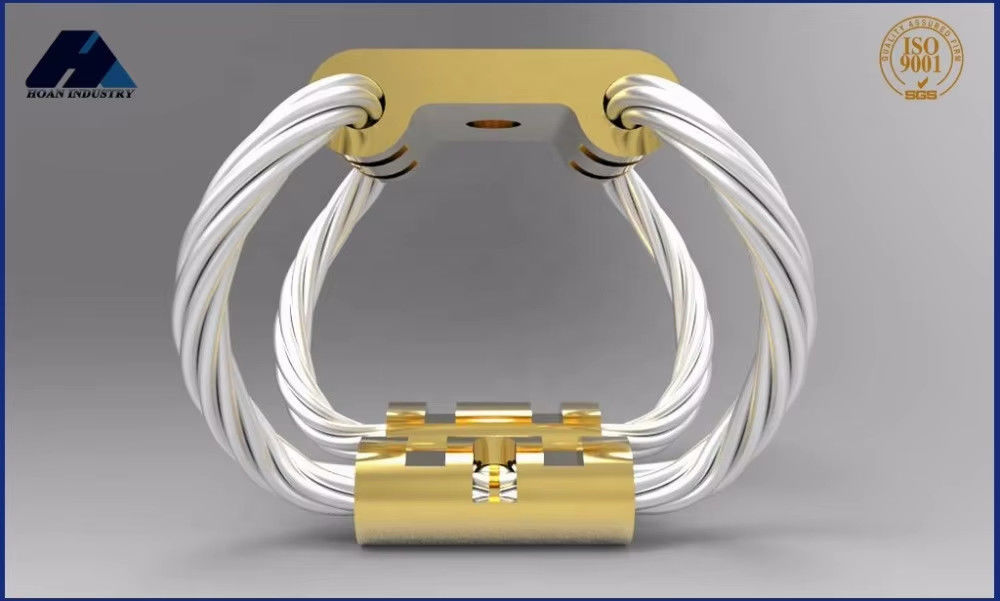

GR6 Series
GR Series isolators excel at canceling out small vibrations, whether it's small rhythmic vibrations during travel shoots or sudden, unexpected vibrations from rocks or potholes. This stability is essential for photographers who are looking for high clarity and smooth images.
For professional photographers, the GR Series isolators are a key tool for maintaining image stability in a variety of shooting environments. Whether you're doing product photography in an indoor studio or landscape or wildlife photography outdoors, isolators provide the necessary stabilization support to ensure high-quality clarity and smoothness in your photos or videos.
In scientific research, such as geophysical exploration, environmental monitoring, etc., GR series vibration isolators can help researchers obtain stable and reliable data. Under harsh environmental conditions, the vibration isolator can ensure the normal operation of the instrument and equipment, and improve the accuracy of data acquisition.
With the continuous advancement of technology, Xi'an Hoan's GR series wire rope isolators are expected to integrate more advanced features in the future, such as intelligent control systems, to adapt to changing shooting needs. At the same time, with the improvement of environmental awareness, the materials and manufacturing processes of vibration isolators will also develop in a more environmentally friendly direction to meet the green needs of the market.
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR6-142D-A | 142 | 22.1 | 32 | 16 |
| 2 | GR6-93D-A | 93 | 29.5 | 20 | 9.6 |
| 3 | GR6-67D-A | 67 | 37.6 | 15 | 5.3 |
| 4 | GR6-36D-A | 36 | 51.6 | 7.9 | 2.6 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 22.9 | 16 | 7.9 |
| 2 | GR6-93D-A | 33 | 30.5 | 9.6 | 5.3 |
| 3 | GR6-67D-A | 22 | 38.1 | 7.9 | 2.8 |
| 4 | GR6-36D-A | 13 | 53.3 | 3.5 | 1.2 |
| No. | Model | Max Static Load (N) | Max Deflection (mm) | Kv(Vibration) (KNm) | Ks(shock) (KNm) |
| 1 | GR6-142D-A | 40 | 20.6 | 7.9 | 7.9 |
| 2 | GR6-93D-A | 31 | 27.4 | 4.4 | 4.4 |
| 3 | GR6-67D-A | 22 | 34.3 | 2.6 | 2.6 |
| 4 | GR6-36D-A | 16 | 48.0 | 1.6 | 1.6 |
* The material of the mounting splint*
Stainless Steel or Aluminum can be selected
* Surface treatment options for aluminum alloy mounting cleats *
* White Anodizing: The surface treatment to make the aluminum surface harder than itself. The color of the white anodized aluminum mounting bars keep the same color as the aluminum itself. It is the normal surface treatment of the aluminum mounting bars;
* Hard Anodizing: The surface treatment to make the aluminum mounting bars much more harder than the white anodized way. The color of the hard anodized aluminum mounting bars is more darker than the white anodizing way. Special use for complex or special requirements of the working conditions of the using of wire rope isolators.
