GR1-2.4A-A Vibration Isolator
High damping characteristics for quick suppression of amplitude and prevention of equipment damage
Product Attributes
| Attribute |
Value |
| Marketing Type |
New Product 2024 |
| Material |
Aluminum alloy |
| Core Components |
Gear |
| Warranty |
1 Year |
| Type |
Noise and Attenuation |
| Adjustable |
Yes |
| Design Style |
Industrial |
| Compatibility |
Universal |
| Application |
Helicopter Drone Camera |
| Applicable Industries |
Energy & Mining |
| Installation |
Tool-free |
| Port |
Xi'an or Specified |
Product Description

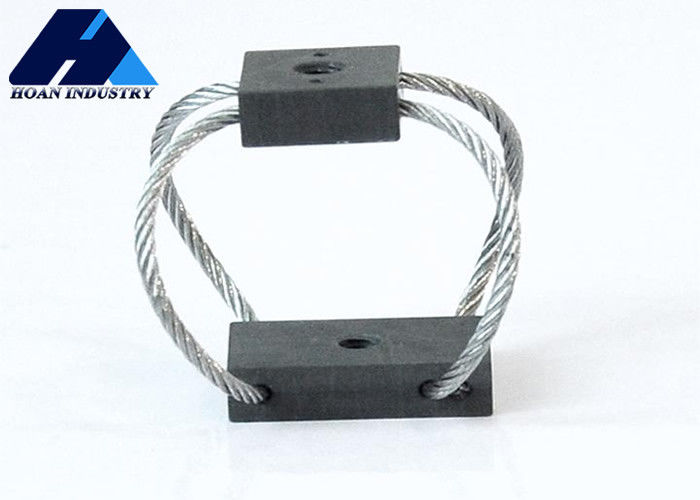

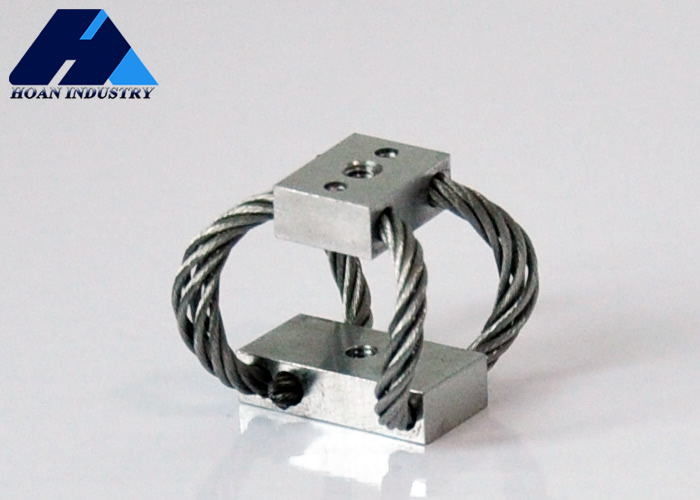

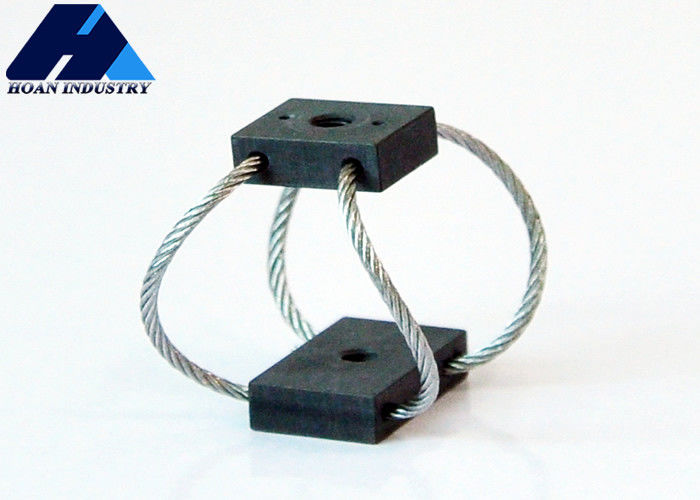

GR1 Series
Dissipating vibrations invisibly, overcoming rigidity with flexibility — the GR1 butterfly-shaped vibration isolator solves equipment "sub-health" issues caused by abnormal vibrations that lead to reduced precision, increased noise, and shortened service life.
The innovative butterfly-shaped structure breaks through the performance limitations of traditional vibration isolators, offering 3D omnidirectional vibration isolation capability for effective attenuation of vibrations regardless of their source.
High damping characteristics enable quick amplitude suppression even in the resonance zone, preventing equipment damage. Features include maintenance-free operation, long service life with excellent weather resistance, and no issues of aging or creep.
Dimension Parameters
| Model |
Height(mm) ±1.5 |
Width(mm) |
Weight(kg) |
Mounting Options |
Thru Hole(mm) |
Thread(mm) |
C'sink(°) |
| GR1-3.3A-A |
17 |
19 |
0.05 |
A,B,C,D,E,S |
∅3.3 |
M3*0.5 |
90 |
| GR1-2.4A-A |
19 |
20 |
0.05 |
|
|
|
|
| GR1-1.8A-A |
23 |
23 |
0.05 |
|
|
|
|
| GR1-1.3A-A |
26 |
26 |
0.05 |
|
|
|
|
Static-Load Curve
| No. |
Model |
Max Static Load (N) |
Max Deflection (mm) |
Kv(Vibration) (KN/m) |
Ks(Shock) (KN/m) |
| 1 |
GR1-3.3A-A |
3.3 |
6.4 |
3.9 |
1.9 |
| 2 |
GR1-2.4A-A |
2.4 |
8.4 |
2.8 |
1.2 |
| 3 |
GR1-1.8A-A |
1.8 |
11.9 |
1.8 |
0.6 |
| 4 |
GR1-1.3A-A |
1.3 |
15 |
1.3 |
0.4 |
Mounting Options
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.
How long is your delivery time?
If we have stock, we can delivery immediately. If no stock, depends on QTY, but normally no more than 20 working days.
What's the weight and measurement for the product?
Different size with different amount, please contact us for details.
Can the products be manufactured by customer's requirement?
Yes, OEM service available.
What do you need to know for fast quotation?
I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device.
Visiting company is allowed or not?
Yes, we welcome customers visiting our company. We are located in Xi'an, Shaanxi, China.
Material Options
Stainless Steel or Aluminum can be selected for mounting bars.
Surface Treatment Options
White Anodizing: Makes the aluminum surface harder while maintaining the original color. This is the standard surface treatment for aluminum mounting bars.
Hard Anodizing: Creates a much harder surface than white anodizing, with a darker color. Recommended for complex or special working conditions.
