Name: GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR2-4.9A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV

adjustable camera vibration isolator

drone camera vibration dampener

helicopter UAV vibration isolator

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR2-4.9A-A

Document:

GR series.pdf

Request A Quote

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV

Product Details

Marketing Type:

Hot Product 2024

Waterproof:

Model:

GR2-4.9A-A

Condition:

New

After Warranty Service:

Online Support

Mounting Type:

Screw-in

Design Style:

Industrial

Adjustability:

Adjustable

Warranty:

1 Year

Application:

Helicopter, Drone, UAV Camera, Gimbal

Core Components:

Gear

Vibration Dampening:

Yes

Shockproof:

Yes

Highlight:

adjustable camera vibration isolator

drone camera vibration dampener

helicopter UAV vibration isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR2-9.3A-A Adjustable Screw Mount Camera Vibration Isolator

Get Best Price

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

Get Best Price

GR2-4.9A-A Adjustable Camera Vibration Isolator for Helicopter Drone UAV

Get Best Price

GR1-3.3A-A Wire Rope Vibration Isolator for Industrial Equipment

Get Best Price

86-29-88292913

Contact Now

Product Description

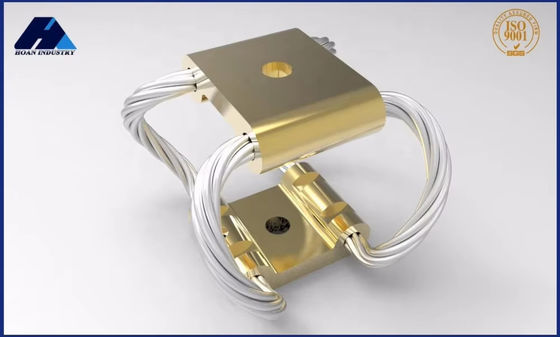

GR2-4.9A-A Camera Vibration Isolator

Non-aging metal material for stable performance in extreme conditions

Product Specifications

Attribute	Value
Marketing Type	Hot Product 2024
Waterproof	No
Model	GR2-4.9A-A
Condition	New
After Warranty Service	Online support
Mounting Type	Screw-in
Design Style	Industrial
Adjustability	Adjustable
Warranty	1 Year
Application	Helicopter, Drone, UAV Camera, Gimbal
Core Components	Gear
Vibration Dampening	Yes
Shockproof	Yes

Technical Overview

GR Series

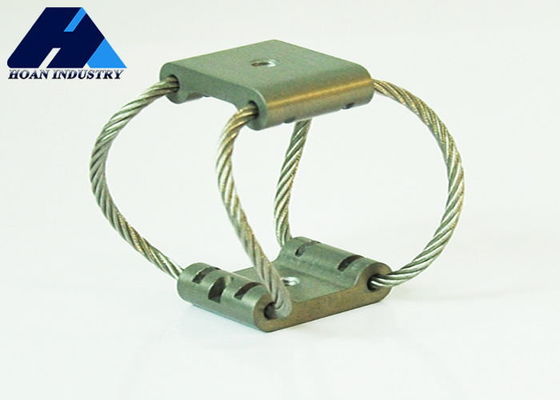

The GR series wire rope isolator (commonly known as "butterfly-shaped") developed by Xi'an Hoan Microwave Co., Ltd. is a high-performance vibration damping device based on the principle of nonlinear damping. Its core is composed of multiple strands of stainless steel wire ropes braided according to a specific topological structure, forming a unique double-axis symmetric butterfly wing shape.

This design not only endows the isolator with 360° omnidirectional impact resistance, but also converts mechanical vibration into heat energy for dissipation through the friction energy dissipation mechanism between the wire rope strands.

Compared with traditional rubber isolators, the innovation of the GR series lies in the absence of aging hazards - the metal material completely avoids the defects of rubber that is prone to oxidation and deterioration, and its service life can reach more than 20 years. At the same time, it has environmental universality, and its performance is stable in extreme temperature ranges from -55℃ to +200℃ and harsh working conditions such as salt spray and oil pollution.

Dimension Parameters

Model	Height(mm) ±1.5	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR2-12A-A	16	20	0.06	A,B,C,D,E,S	∅3.3	M3*0.5	90
GR2-9.3A-A	19	21	0.06
GR2-6.7A-A	23	24	0.07
GR2-4.9A-A	27	27	0.07

Static-Load Performance

No.	Model	Max Static Load (mm)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR2-12A-A	12	5.8	11	6.1
2	GR2-9.3A-A	9.3	8.4	8.8	4.0
3	GR2-6.7A-A	6.7	11.7	5.3	1.9
4	GR2-4.9A-A	4.9	15.7	3.5	1.2

Application Scenarios

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments
Ordnance Equipment	Computer controls, Electronics	Rough terrain, Railroad humping, Transit	Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment	Mechanical equipment necessary for patient care	Vibration from moving parts, Mobile carts-Transport shock	Maintenance-free, No out gassing, Can be sterilized
Chimneys	Chimneys, Scrubbers, Measuring devices	Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc.	Maintenance-free, Temperature extremes, Corrosive environments

Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer of industrial workshop damping vibration and micro-vibration absorbing products with many year experience in China.

Q: How long is your delivery time?

A: If we have stock, we can delivery immediately. If no stock, depends on QTY, but normally no more than 20 working days.

Q: What's the weight and measurement for the product?

A: Different size with different amount, please contact us for details.

Q: Can the products be manufactured by customer's requirement?

A: Yes, OEM service available.

Q: What do you need to know for fast quotation?

A: I need your equipment weight, volume; Shock and vibration requirements of the equipment; We would appreciate these details on the application environment of the device.

Q: Visiting company is allowed or not?

A: Yes, we welcome customers visiting our company. We are located in Xi'an, Shaanxi, China.

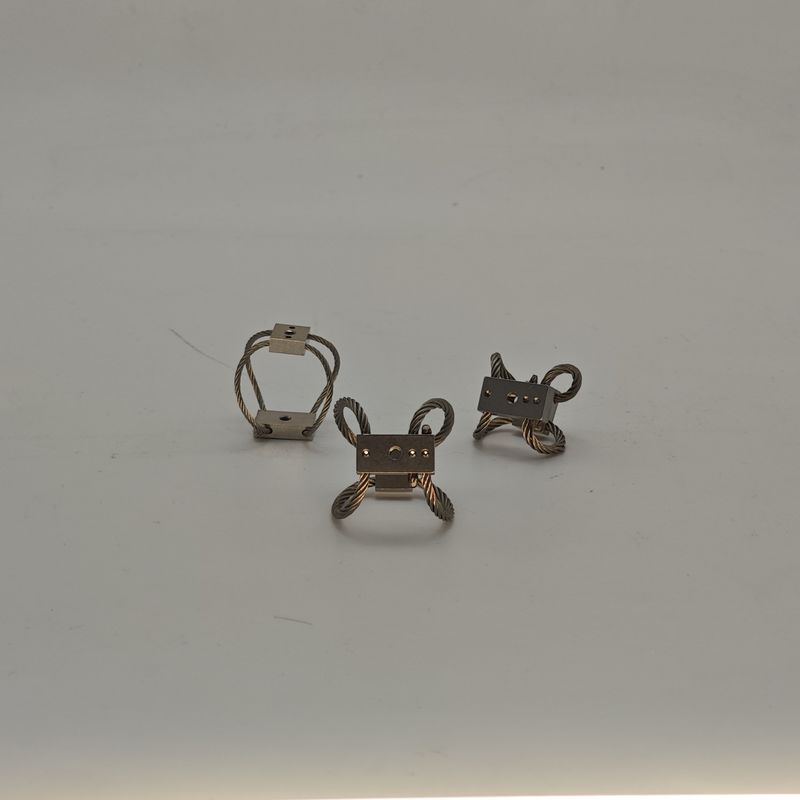

Customer Photos
