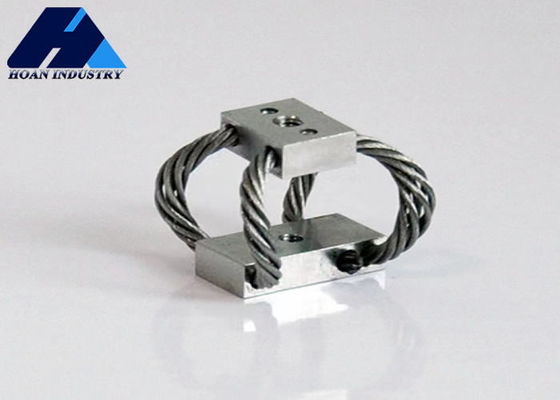

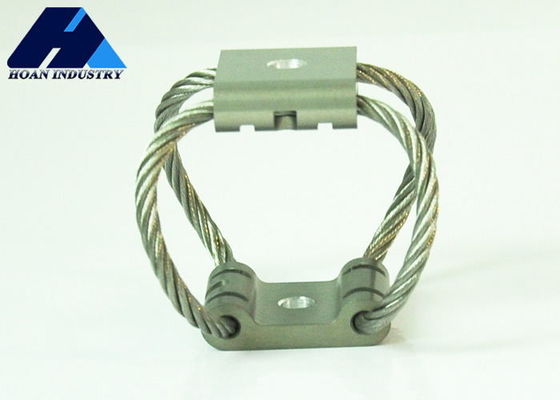

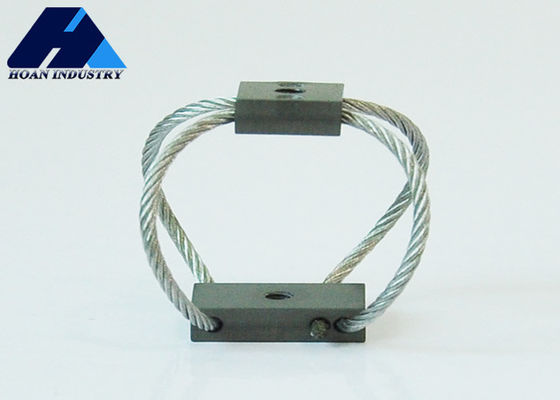

Name: GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR2-6.7A-A
Availability: InStock

Home > Products > Camera Vibration Isolator >

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

screw-in camera shock absorber

camera vibration isolator with warranty

GR2-6.7A-A vibration isolation mount

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR2-6.7A-A

Document:

GR series.pdf

Request A Quote

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

Product Details

Mounting Type:

Screw-in

Condition:

New

Core Components:

Gear

Port:

Xi'an Or Specified

Compatibility:

Universal

Maximum Load Capacity:

Not Specified

Type:

SHOCK ABSORBER

Color:

Black

Adjustable:

Yes

After Warranty Service:

Online Support

Machinery Test Report:

Not Available

Model:

GR2-6.7A-A

Highlight:

screw-in camera shock absorber

camera vibration isolator with warranty

GR2-6.7A-A vibration isolation mount

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Get Best Price

GR1-3.3D-A Adjustable Steel Wire Rope Vibration Isolator for Cameras

Get Best Price

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

Get Best Price

Compact Wire Rope Isolator for Handmade Aerial Photography Camera Gimbal GR2-6.7D-A

Get Best Price

86-29-88292913

Contact Now

Product Description

GR2-6.7A-A Neutralizing Disturbances Invisibly The Nonlinear Wisdom of Hoan Microwave s GR Series Isolators

Product Specifications

Attribute	Value
Mounting Type	Screw-in
Condition	New
Core Components	Gear
Port	Xi'an or Specified
Compatibility	Universal
Type	SHOCK ABSORBER
Color	Black
Adjustable	Yes
After Warranty Service	Online support
Model	GR2-6.7A-A

GR Series Vibration Isolators

In a world full of vibrations, protecting sensitive equipment from interference requires advanced engineering. The GR series (butterfly-shaped) wire rope isolators from Xi'an Hoan Microwave Co., Ltd. utilize nonlinear dynamics to provide superior vibration isolation.

The GR series features unique nonlinear stiffness and damping characteristics. As external vibration or shock increases, the stiffness adapts from soft to hard, providing gentle isolation for minor vibrations while effectively limiting displacement during high-energy shocks. The complex frictional sliding mechanism between wire rope layers provides speed-related damping that dissipates impact energy efficiently.

Dimension Parameters

Model	Height(mm) ±1.5	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR2-12A-A	16	20	0.06	A,B,C,D,E,S	∅3.3	M3*0.5	90
GR2-9.3A-A	19	21	0.06	Same as above
GR2-6.7A-A	23	24	0.07	Same as above
GR2-4.9A-A	27	27	0.07	Same as above

Static-Load Performance

No.	Model	Max Static Load (mm)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR2-12A-A	12	5.8	11	6.1
2	GR2-9.3A-A	9.3	8.4	8.8	4.0
3	GR2-6.7A-A	6.7	11.7	5.3	1.9
4	GR2-4.9A-A	4.9	15.7	3.5	1.2

Applications

Applications	Typical Equipment	Protection From	Operational Advantages
Shipboard	Electronics, Computers, Machinery	Explosive blast, Inherent vibration, Storms	Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection
Rough Terrain Vehicles	Instrumentation, Generators, Electronics	Rough terrain, Poor road conditions, Collision	Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation
Shipping Containers	Optics, Instruments, Missiles, Electronics	Transit, Handling drop, Loading/Unloading	Long life, Maintenance-free, Exposure to moisture, Repeated use
Aircraft	Electronics, Computers	High-G maneuvering, Hard landings, Turbulent air	Temperature and altitude extremes, Lightweight
Industrial Equipment	Centrifuge, Dryers, Pumps	Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness	Long life, Maintenance-free, Corrosive environments

Material Options

Mounting bars available in Stainless Steel or Aluminum.

Aluminum Surface Treatment Options

White Anodizing: Standard surface treatment that hardens aluminum while maintaining original color.
Hard Anodizing: Provides superior hardness with darker finish, recommended for demanding applications.

Customer Installation Example
