Name: GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR2-12A-A
Availability: InStock

Home > products > Camera Vibration Isolator >

GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal

helicopter drone camera vibration isolator

UAV gimbal vibration dampener

GR2-12A-A camera stabilizer

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR2-12A-A

Document:

GR series.pdf

Request A Quote

GR2-12A-A Camera Vibration Isolator for Helicopter Drone UAV Gimbal

Product Details

Design Style:

Industrial

Material:

Rubber

After Warranty Service:

Online Support

Machinery Test Report:

Not Available

Port:

Xi'an Or Specified

Core Components:

Gear

Waterproof:

Showroom Location:

None

Condition:

New

Mounting Type:

Screw-in

Shock Absorption:

Yes

Application:

Helicopter, Drone, UAV Camera, Gimbal

Warranty:

1 Year

Marketing Type:

New Product 2024

Package Contents:

1 X Camera Vibration Isolator

Highlight:

helicopter drone camera vibration isolator

UAV gimbal vibration dampener

GR2-12A-A camera stabilizer

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR1-3.3D-A Wire Rope Vibration Isolator Industrial Design for Dampening Unexpected Vibrations Load Range 3.5-2000KG

Get Best Price

GR1-1.8D-A Stable and Durable GR1 Series Wire Rope Vibration Isolator for Aerial Camera Support

Get Best Price

Upgrade Your Photography and Videography with GR5-27D-A Wire Rope Vibration Isolator

Get Best Price

Experience Smooth Signal Transmission with GR4-13D-A Wire Rope Vibration Isolator

Get Best Price

86-29-88292913

Contact Now

Product Description

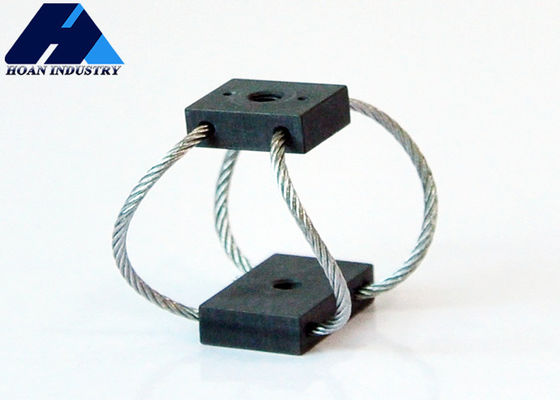

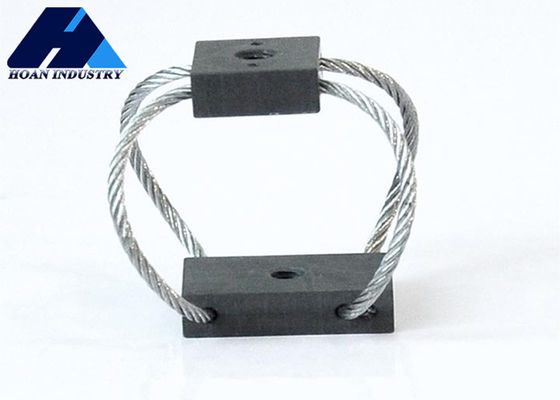

GR2-12A-A Camera Vibration Isolator

Precision Protection with Unique Butterfly Design

The GR series wire rope isolators from Xi'an Hoan Microwave Co., Ltd. provide superior vibration and shock control for precision instruments with their innovative butterfly-shaped design and exceptional performance characteristics.

Attribute	Value
Design Style	Industrial
Material	Rubber
Warranty	1 year
Mounting Type	Screw-in
Shock Absorption	Yes
Applications	Helicopter, Drone, UAV Camera, Gimbal
Package Contents	1 x Camera Vibration Isolator

Technical Advantages

Elaborately braided spiral stainless steel wire rope structure for superior damping
Nonlinear damping system converts mechanical energy into heat energy
Excellent broadband vibration isolation capability
Superior load-bearing capacity and fatigue resistance
Resistant to high/low temperatures, oil, and corrosion
Long service life with minimal maintenance requirements

Dimension Parameters

Model	Height(mm) ±1.5	Width (mm)	Weight (kg)	Mounting Options	Thru Hole (mm)	Thread (mm)	C'sink (°)
GR2-12A-A	16	20	0.06	A,B,C,D,E,S	∅3.3	M3*0.5	90

Static-Load Performance

Model	Max Static Load (mm)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
GR2-12A-A	12	5.8	11	6.1

Mounting Bar Options

Material: Stainless Steel or Aluminum

Surface Treatment for Aluminum:

White Anodizing: Standard surface hardening treatment maintaining aluminum's natural color
Hard Anodizing: Enhanced surface hardness with darker finish for demanding applications

Customer Installation Example
