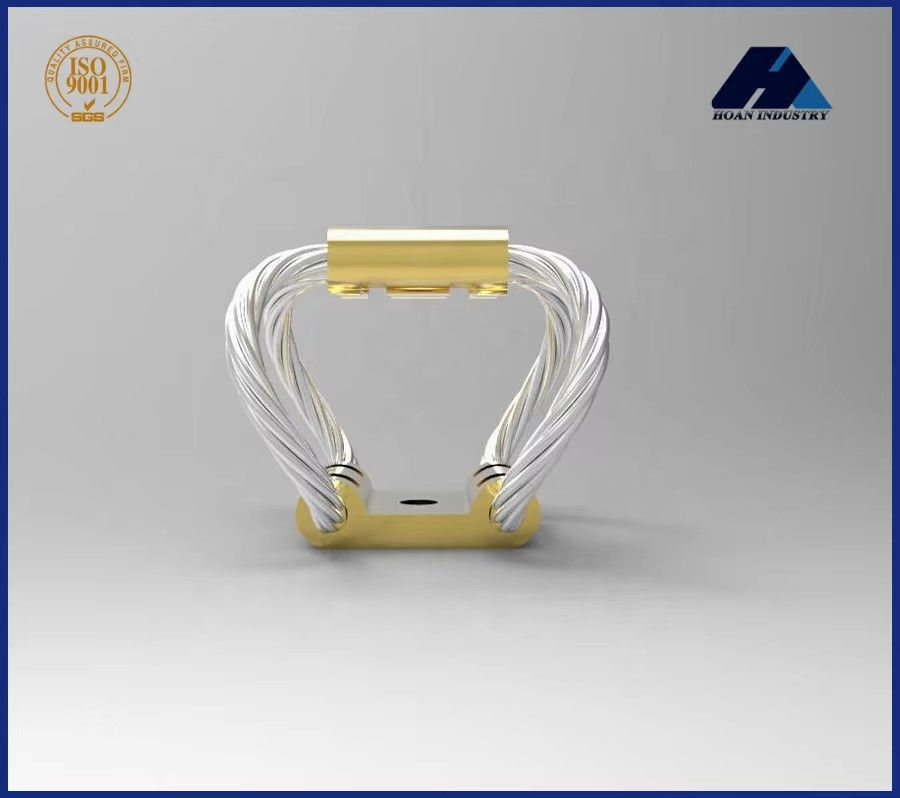

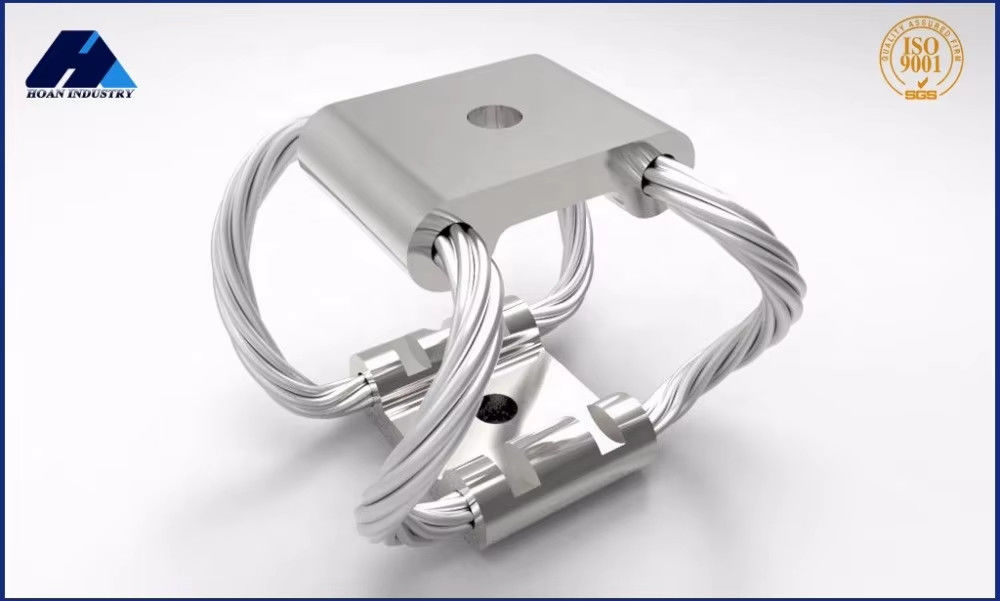

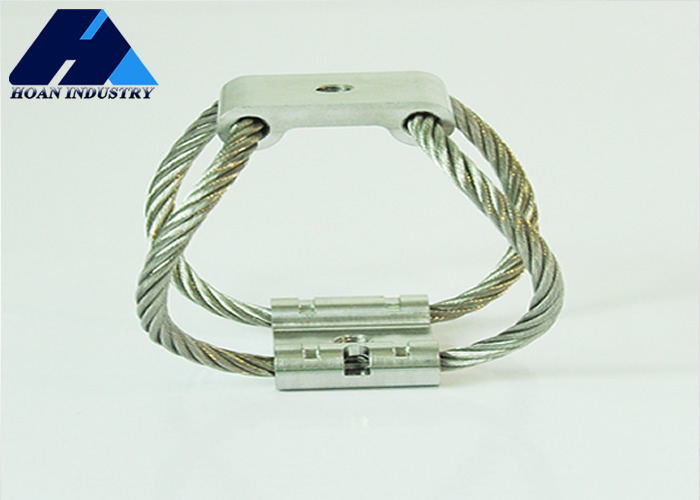

GR3-30A-A Butterfly-shaped Steel Wire Rope Vibration Isolator

Designed for precision instruments and high-end equipment stability, this vibration isolator features an innovative butterfly-shaped structure for superior vibration protection.

Product Specifications

Attribute	Value
Diameter	2.4mm
Installation Type	Vertical
Axial Stiffness	50N/mm
Color	Black
Drawing Format	DWG and PDF
Resonance Frequency	40 Hz
Isolator Type	Helical
Overall Width	22mm
Compression Ratio	1.2:1
Condition	New
Damping Ratio	0.5
Isolation Frequency	5-50 Hz
Vibration Isolation	Up to 90%

Product Description

GR3 Series Butterfly-shaped Steel Wire Rope Vibration Isolator

The GR3 series from Xi'an Hoan Microwave Co., Ltd. features an innovative butterfly-shaped structure that provides exceptional vibration isolation for precision instruments and high-end equipment.

The unique butterfly design incorporates multiple strands of special stainless steel wire rope wound in a precise spiral pattern, creating a symmetrical double-arch structure. This configuration provides multi-directional vibration isolation, effectively absorbing and dissipating vibration energy from both horizontal and vertical directions.

Key features include:

Special stainless steel construction for anti-fatigue, corrosion resistance, and long-term stability
Low stiffness with high damping characteristics
Excellent sensitivity to micro-vibrations and transient impacts
Effective isolation of medium and high-frequency vibrations
Reliable performance in complex environments including temperature variations and moderate salt spray

Model Diagram

Static-Load Curve

Technical Specifications

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR3-30A-A	30	7.1	24	12
2	GR3-22A-A	22	10.4	12	6.1
3	GR3-18A-A	18	14.2	8.4	3.5
4	GR3-11A-A	11	19.3	5.8	1.9

Mounting Options

Mounting splint material options:

Stainless Steel
Aluminum

Surface treatment options for aluminum alloy mounting cleats:

White Anodizing: Standard surface treatment that maintains the aluminum's natural color while increasing hardness
Hard Anodizing: Provides significantly increased hardness compared to white anodizing, with a darker surface finish. Recommended for complex or demanding applications
