Name: GR3-22A-A Steel Wire Rope Vibration Isolator for Energy Absorption
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR3-22A-A
Availability: InStock

Home > products > Wire Rope Vibration Isolator >

GR3-22A-A Steel Wire Rope Vibration Isolator for Energy Absorption

steel wire rope vibration isolator

camera vibration isolator with energy absorption

GR3-22A-A vibration isolator for cameras

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR3-22A-A

Document:

GR series.pdf

Request A Quote

GR3-22A-A Steel Wire Rope Vibration Isolator for Energy Absorption

Product Details

Accessories:

NEt

Installation Type:

Horizontal/Vertical

Shock Resistance:

20g/11ms

Mounting Type:

Loop End

Wire Rope Construction:

7x19

Damping Ratio:

0.5

Mounting Thread Size:

Drawing Format:

DWG And PDF

Manufacturer:

Hoan Company

Relative Product:

Backdraft Damper

Applicable Industries:

Energy & Mining

Product Certification:

ISO 9001

Weight:

2.2kg

Vibration Isolation Range:

0.5 To 10 Hz

Axial Stiffness:

50N/mm

Highlight:

steel wire rope vibration isolator

camera vibration isolator with energy absorption

GR3-22A-A vibration isolator for cameras

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR3-22A-A Steel Wire Rope Vibration Isolator for Energy Absorption

Get Best Price

GR3-30A-A Butterfly Steel Wire Rope Vibration Isolator 50N/mm Stiffness

Get Best Price

GR3-11A-A Wire Vibration Damper for Precision Equipment

Get Best Price

GR2-12A-A Camera Vibration Isolator Unique Design Concept for Precision Protection from Hong an Microwave

Get Best Price

86-29-88292913

Contact Now

Product Description

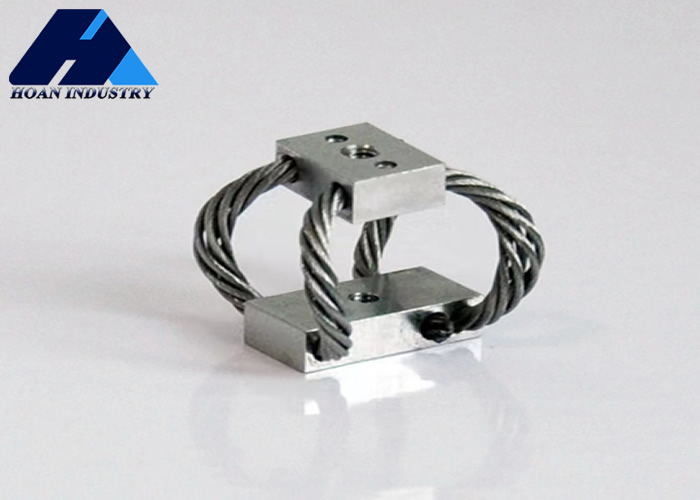

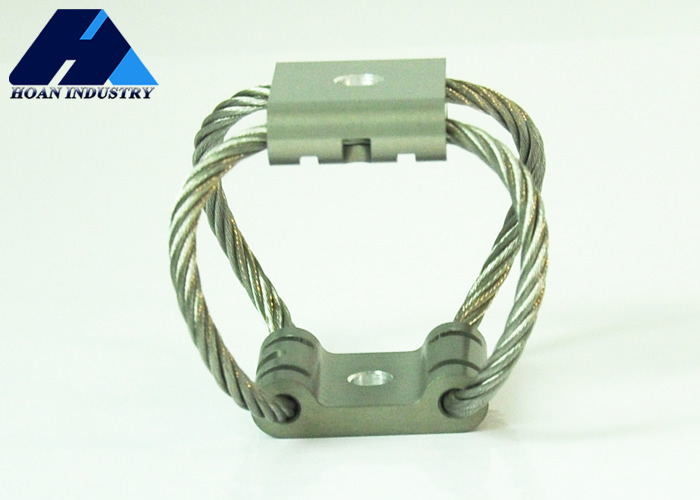

GR3-22A-A Butterfly-shaped Steel Wire Rope Vibration Isolator

Double-arch structure for energy absorption and impact resistance

Product Specifications

Attribute	Value
Accessories	NEt
Installation Type	Horizontal/Vertical
Shock Resistance	20g/11ms
Mounting Type	Loop End
Wire Rope Construction	7x19
Damping Ratio	0.5
Mounting Thread Size	M3
Drawing Format	DWG and PDF
Manufacturer	Hoan Company
Relative Product	Backdraft Damper
Applicable Industries	Energy & Mining
Product Certification	ISO 9001
Weight	2.2kg
Vibration Isolation Range	0.5 to 10 Hz
Axial Stiffness	50N/mm

Product Description

GR3 Series

Overcoming Rigidity with Flexibility - The GR3 butterfly-shaped steel wire rope vibration isolator from Xi'an Hoan Microwave Co., Ltd. is designed for harsh environments requiring impact resistance and vibration isolation.

The core protection mechanism stems from its nonlinear hysteretic damping characteristics. When equipment encounters sudden impacts, the special steel wire rope network responds rapidly, converting kinetic energy into heat energy for dissipation. This process significantly reduces peak impact acceleration transmitted to protected equipment.

The butterfly-shaped double-arch structure provides superior deformation space and energy distribution paths, effectively dispersing impact loads while preventing stress concentration. Compared with traditional rubber vibration isolation pads or metal springs, GR3 offers high damping, large deformation capacity, and anti-overload characteristics.

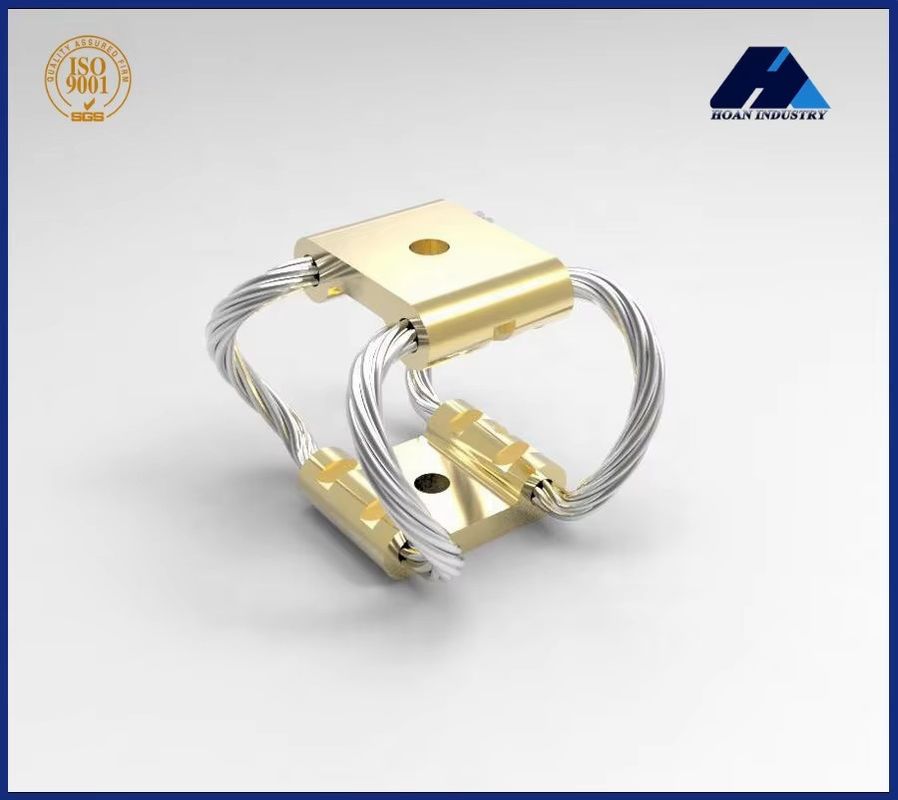

Model Diagram

Static-Load Curve

Technical Specifications

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR3-30A-A	30	7.1	24	12
2	GR3-22A-A	22	10.4	12	6.1
3	GR3-18A-A	18	14.2	8.4	3.5
4	GR3-11A-A	11	19.3	5.8	1.9

Material Options

Mounting splint material: Stainless Steel or Aluminum can be selected

Surface Treatment Options

White Anodizing: Standard surface treatment that makes the aluminum surface harder while maintaining its natural color.
Hard Anodizing: Creates a much harder surface than white anodizing, with a darker color. Recommended for complex or special working conditions.

Frequently Asked Questions
