Name: GR3-18A-A Steel Wire Rope Vibration Isolator for Air Conditioning
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: GR3-18A-A
Availability: InStock

Home > Products > Camera Vibration Isolator >

GR3-18A-A Steel Wire Rope Vibration Isolator for Air Conditioning

steel wire rope vibration isolator

air conditioning vibration isolator

camera vibration isolator with warranty

Place of Origin:

China

Brand Name:

Hoan

Certification:

ISO9001:2015

Model Number:

GR3-18A-A

Document:

GR series.pdf

Request A Quote

GR3-18A-A Steel Wire Rope Vibration Isolator for Air Conditioning

Product Details

Compression Ratio:

1:2

Weight:

0.5kg

Wire Rope Diameter:

2.4mm

Overall Width:

27mm

Installation:

Wall Mounted

Mounting Type:

Loop To Loop

Durability:

High

Certifications:

ISO 9001

Manufacturer:

Hoan Company

Function:

Damping

Usage:

Air Conditioning Terminal

Wire Rope Material:

Galvanized Steel

Isolator Type:

Helical

Spring Constant:

50N/mm

Axial Stiffness:

50N/mm

Highlight:

steel wire rope vibration isolator

air conditioning vibration isolator

camera vibration isolator with warranty

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

GR1-1.8A-A Stainless Steel Butterfly Vibration Isolator for Cameras

Get Best Price

GR1-3.3D-A Adjustable Steel Wire Rope Vibration Isolator for Cameras

Get Best Price

GR2-6.7A-A Screw-in Shock Absorber for Camera Vibration Isolation

Get Best Price

Compact Wire Rope Isolator for Handmade Aerial Photography Camera Gimbal GR2-6.7D-A

Get Best Price

86-29-88292913

Contact Now

Product Description

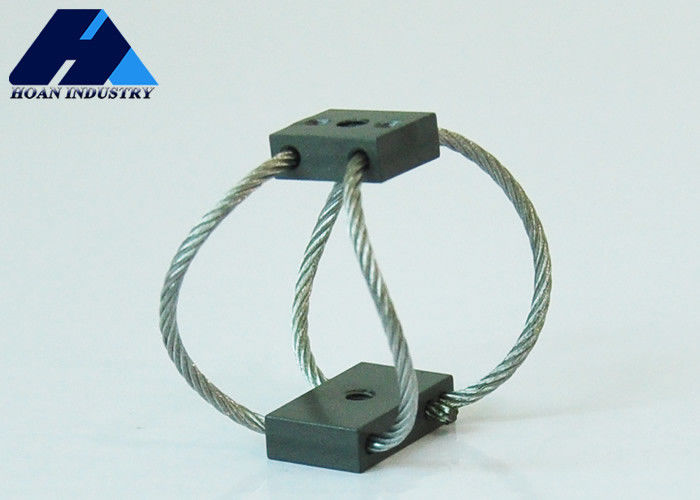

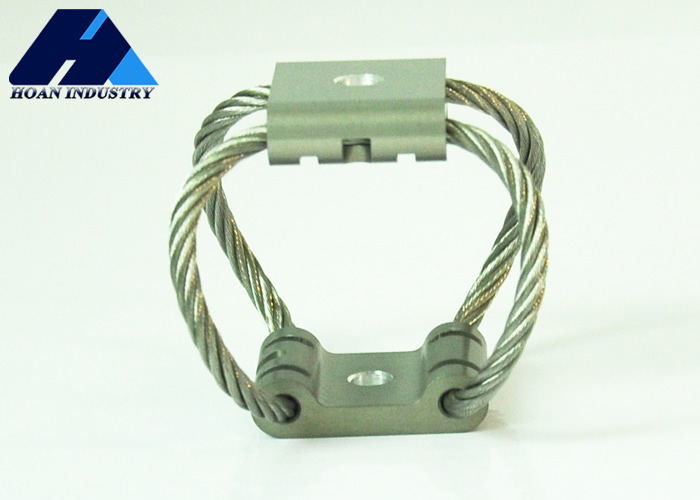

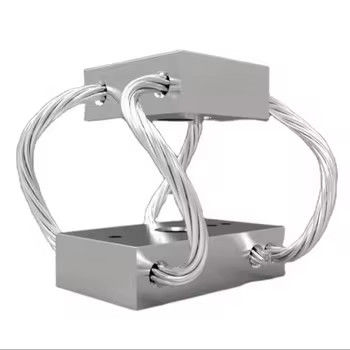

GR3-18A-A Steel Wire Rope Vibration Isolator

The Ultimate Solution for Environmental Vibration Control

Product Specifications

Attribute	Value
Compression Ratio	1:2
Weight	0.5kg
Wire Rope Diameter	2.4mm
Overall Width	27mm
Installation	Wall Mounted
Mounting Type	Loop to Loop
Durability	High
Certifications	ISO 9001
Manufacturer	Hoan Company
Function	Damping
Usage	Air Conditioning Terminal
Wire Rope Material	Galvanized Steel
Isolator Type	Helical
Spring Constant	50N/mm
Axial Stiffness	50N/mm

Product Overview

GR3 Series - Beyond Traditional Vibration Control

The GR3 butterfly-shaped steel wire rope vibration isolator from Xi'an Hoan Microwave Co., Ltd. demonstrates several breakthrough advantages compared with traditional vibration isolation components.

Key Features

Environmental Adaptability: All-metal (special stainless steel) construction avoids problems of rubber/polyurethane materials like aging, creep, and corrosion. Stable performance from -55°C to +150°C.
Long-term Reliability: Stainless steel provides excellent weather/corrosion resistance with no lubrication requirements or leakage risks.
Comprehensive Protection: Excellent vibration isolation in medium/high frequency bands with outstanding attenuation for low-frequency displacements and strong impacts.
Stable Load-bearing: Steel wire rope structure provides stable nonlinear stiffness within rated load range.

Product Images

Technical Specifications

No.	Model	Max Static Load (N)	Max Deflection (mm)	Kv(Vibration) (KN/m)	Ks(Shock) (KN/m)
1	GR3-30A-A	30	7.1	24	12
2	GR3-22A-A	22	10.4	12	6.1
3	GR3-18A-A	18	14.2	8.4	3.5
4	GR3-11A-A	11	19.3	5.8	1.9

Mounting Options

Material of the mounting splint: Stainless Steel or Aluminum can be selected

Surface Treatment Options for Aluminum Alloy Mounting Cleats

White Anodizing: Standard surface treatment that makes aluminum surface harder while maintaining original color.
Hard Anodizing: Creates much harder surface than white anodizing with darker color. Recommended for complex or special working conditions.

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process.

Q: Can you customize products for us?

A: Yes, we have the capability to customize our products to meet your specific needs.

Q: What is the lead time?

A: Samples usually take 2-5 days. Mass production typically takes 7-20 days, with faster delivery when we have stock.

Q: Can I get some samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping service is available. Please contact us before ordering as shipping costs vary.

Q: Do you offer discounts for bulk orders?

A: Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
