JMZ-1-1.5A Wire Rope Vibration Isolator 44mm for Industrial Engine Mounts

Name: JMZ-1-1.5A Wire Rope Vibration Isolator 44mm for Industrial Engine Mounts
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-1-1.5A
Availability: InStock

Brand Name:	Hoan
Model Number:	JMZ-1-1.5A
MOQ:	4
Payment Terms:	L/C,D/P,D/A,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Load Capacity:

Customizable

Overall Width:

44mm

Customization:

Available Upon Request

Condition:

New

Diameter:

Varies Depending On The Application

Product Keywords:

Friction Damping Isolators

Damping Ratio:

Depends On The Material And Configuration Of The Isolator

Construction:

Braided Wire Rope

Type:

SHOCK ABSORBER

Applicable Industries:

Energy & Mining

Applications:

Industrial Engine Mounts

Highlight:

wire rope vibration isolator 44mm

industrial engine mounts isolator

JMZ-1-1.5A vibration isolator

Product Description

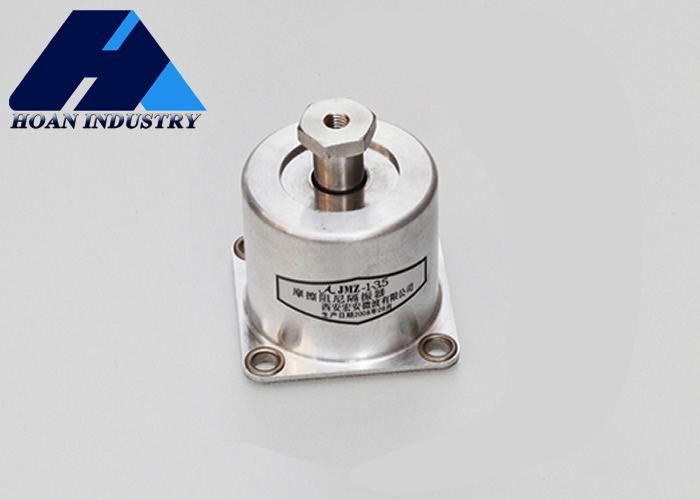

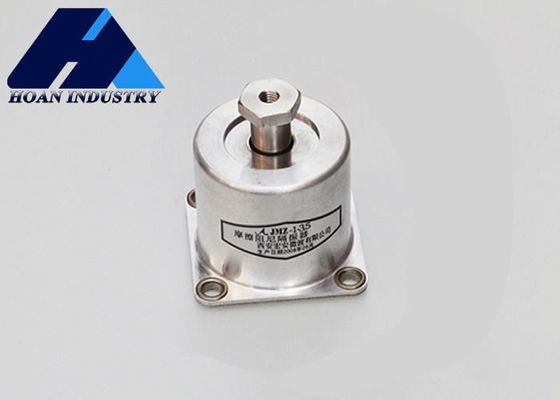

JMZ-1-1.5A Wire Rope Vibration Isolator 44mm for Industrial Engine Mounts

The JMZ-1-1.5A Wire Rope Vibration Isolator (44mm width) provides superior protection for industrial engine mounts against low-frequency vibrations. Engineered by Xi'an Hoan Microwave Co., Ltd., these isolators outperform traditional solutions in critical applications where vibration control is essential.

Key Benefits

Effectively addresses low-frequency vibration that travels long distances
High damping characteristics rapidly reduce resonant amplitude
Shortens system stabilization time compared to conventional isolators
Blocks vibration transmission paths for both heavy industrial and micro-vibrations

Ideal Applications

Acoustic laboratories
Metrology centers
Hospital MRI rooms
Industrial equipment (stamping machines, compressors)
Urban rail transit systems

Dimension Parameters

Model	Nominal Load (kg)	B	A±0.2	H	h±0.5	T	d	d1	D
JMZ-1-1.0A	1.0	44	35	50	36	SW14	M5-7H	5.1～5.4	39.5
JMZ-1-1.5A	1.5	Same as JMZ-1-1.0A
JMZ-1-2.0A	2.0	Same as JMZ-1-1.0A
JMZ-1-3.0A	3.0	Same as JMZ-1-1.0A
JMZ-1-3.5A	3.5	Same as JMZ-1-1.0A

Performance Characteristics

Technical Parameters

Model	Pz Nominal Load (KG)	Pz Max Deflection (mm)	Vibration (Kv)	Shock (Ks)	Resonant Frequency (Hz)	Working Temperature(℃)
JMZ-1-1.0A	1.0	3±1.5	≤3.5	30g/11ms	＜15	-65～+120
JMZ-1-1.5A	1.5	Same as JMZ-1-1.0A
JMZ-1-2.0A	2.0	2±1.5	Same as JMZ-1-1.0A
JMZ-1-3.0A	3.0	3±1.5	Same as JMZ-1-1.0A
JMZ-1-3.5A	3.5	Same as JMZ-1-1.0A

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, producing our products in our own facilities to ensure full quality control and offer competitive pricing with customized solutions.

Q: Can you customize products for us?

A: Yes, we can customize products to meet your specific requirements. Contact us with your needs for a tailored solution.

Q: What is the lead time?

A: Samples typically take 2-5 days. Mass production takes 7-20 days, with faster delivery when we have stock available.

Q: Can I get samples before placing an order?

A: Yes, sample orders are accepted.

Q: How is your shipping?

A: Worldwide shipping is available. Please contact us before ordering as shipping costs vary.

Q: Do you offer bulk order discounts?

A: Yes, we offer quantity discounts that vary based on order size.

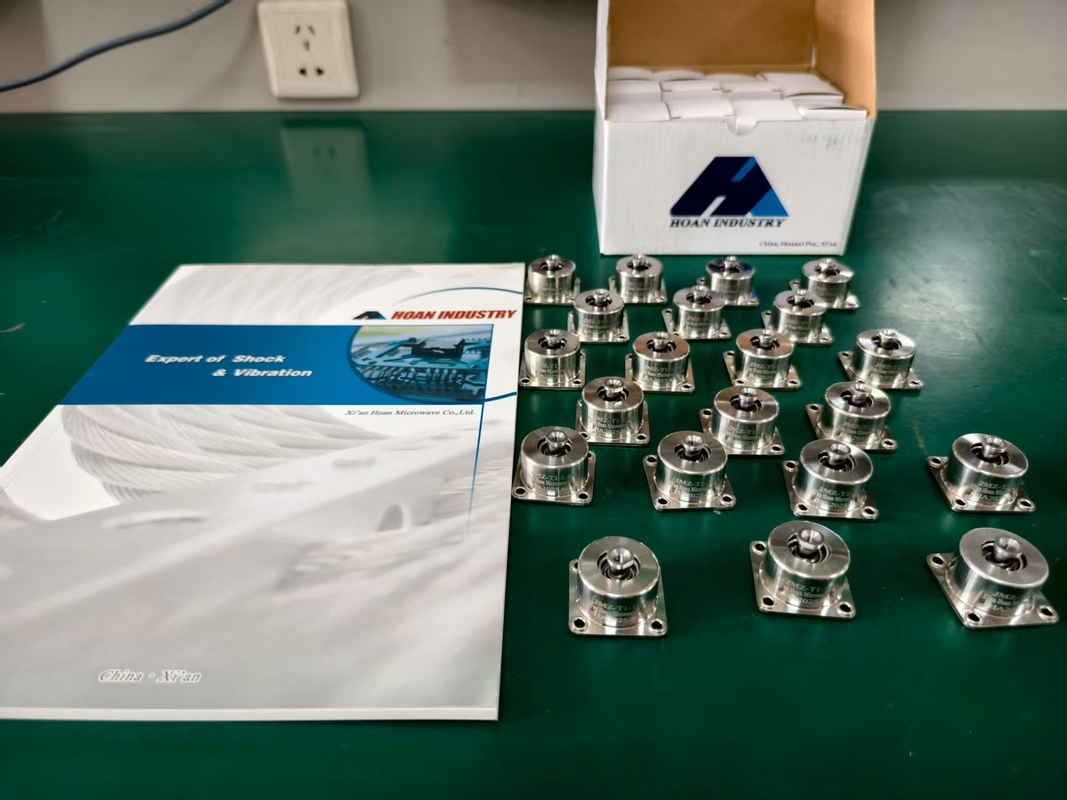

Customer Photos
