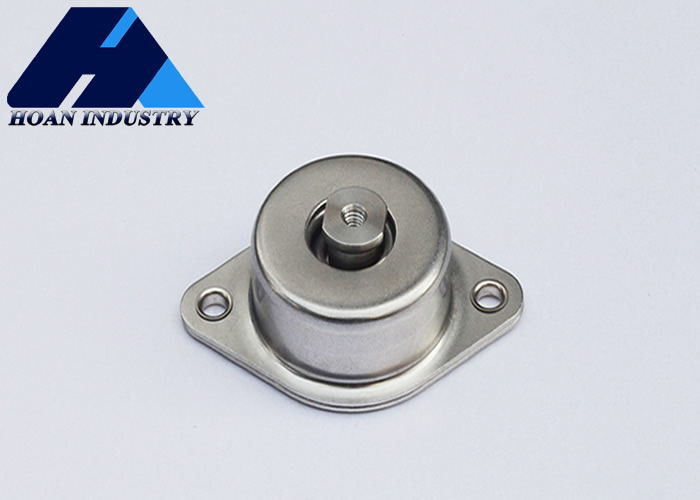

Name: JMZ-1-1.0A Friction Damping Vibration Isolator 1.0KG Load Capacity
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-1-1.0A
Availability: InStock

Home > products > Spring Isolator >

JMZ-1-1.0A Friction Damping Vibration Isolator 1.0KG Load Capacity

JMZ-1-1.0A wire rope isolator

friction damping vibration isolator 1.0KG

wire rope isolator with damping

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JMZ-1-1.0A

Request A Quote

Product Details

Color:

Silver

Usage:

Isolating Vibrations

Operating Temperature:

Depends On The Specific Product

Maintenance:

Low

Shape:

Cylindrical

Warranty:

1 Year

Showroom Location:

None

Installation Method:

Bolted Or Welded To The Structure

Condition:

New

Applicable Industries:

Building Material Shops, Energy & Mining

Design Style:

Industrial

Load Capacity:

Depends On The Specific Product

Application:

Industrial, Commercial, And Residential Buildings

Model:

JMZ-1-1.0A

Material:

Spring

Highlight:

JMZ-1-1.0A wire rope isolator

friction damping vibration isolator 1.0KG

wire rope isolator with damping

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

JMZ-1-3.5A Adjustable Vibration Isolator for HVAC Equipment, 3.5kg Load

Get Best Price

Stainless Steel Wire Rope Vibration Isolator 2kg Load Capacity

Get Best Price

JMZ-1-1.5A Wire Rope Vibration Isolator 44mm for Industrial Engine Mounts

Get Best Price

JMZ-1-1.0A Friction Damping Vibration Isolator 1.0KG Load Capacity

Get Best Price

86-29-88292913

Contact Now

Product Description

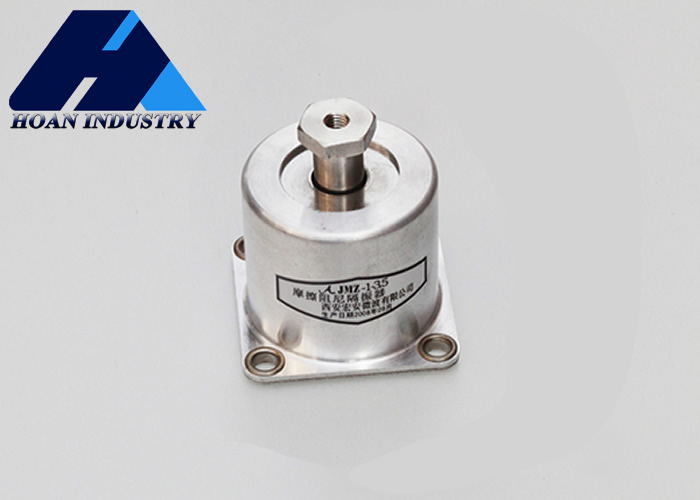

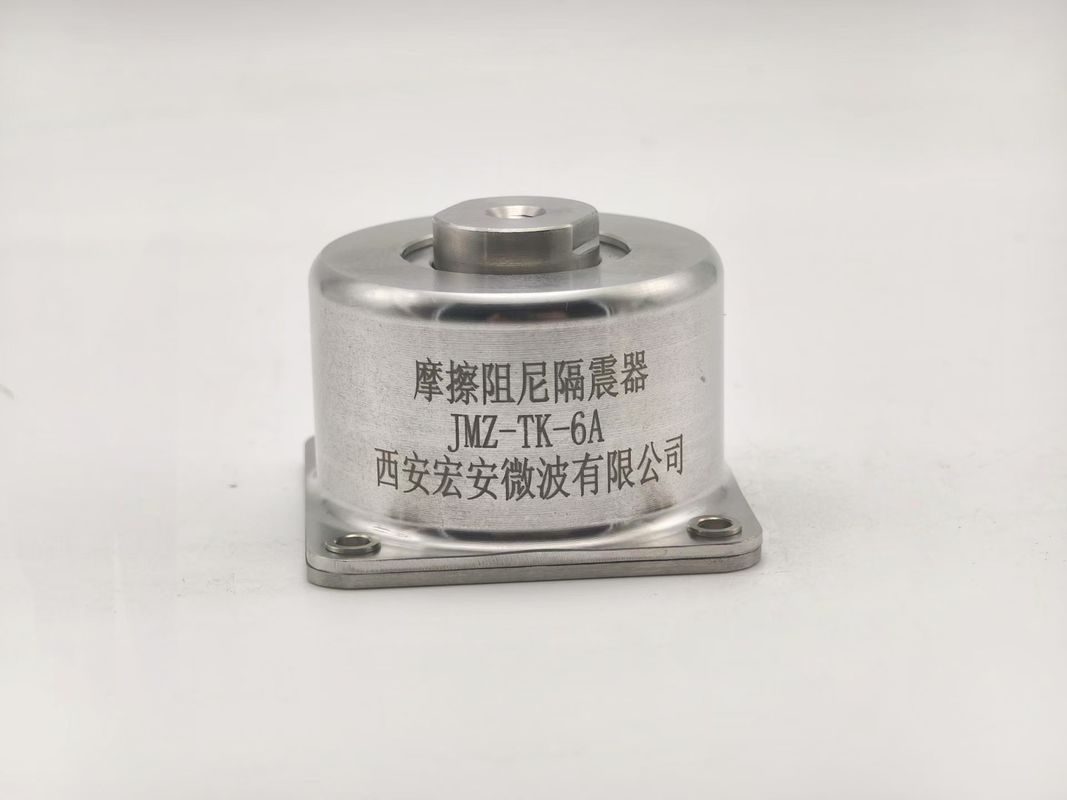

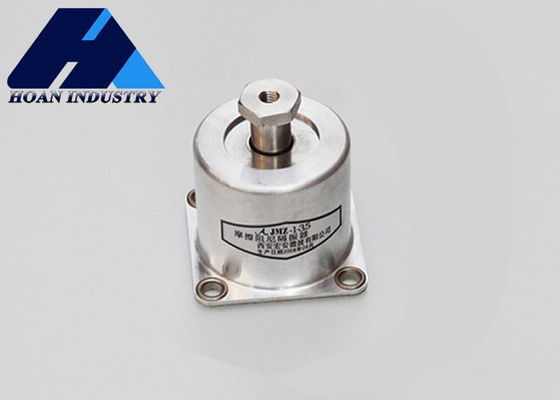

JMZ-1-1.0A Friction Damping Vibration Isolator 1.0KG Load Capacity

The Invisible Guardian for Precision Equipment in Industrial Environments

In industrial environments where vibration and shock are prevalent, precision instruments, communication equipment, and high-end machine tools require reliable protection. The JMZ Friction Damping Vibration Isolator from Xi'an Hoan Microwave Co., Ltd. provides an advanced solution through its innovative friction damping mechanism.

Unlike conventional elastic shock-absorbing components, the JMZ system effectively dissipates energy through dry friction between metal parts, converting harmful mechanical energy into thermal energy. This design delivers superior damping characteristics, enabling rapid suppression of resonant amplitude and quick stabilization of equipment.

Compared to traditional rubber or spring vibration isolators, the JMZ excels in isolating high-frequency vibrations and withstanding strong shocks. Its robust construction ensures high reliability, long service life, and excellent environmental adaptability.

Dimension Parameters

Model	Nominal Load (kg)	B	A±0.2	H	h±0.5	T	d	d1	D
JMZ-1-1.0A	1.0	44	35	50	36	SW14	M5-7H	5.1～5.4	39.5
JMZ-1-1.5A	1.5
JMZ-1-2.0A	2.0
JMZ-1-3.0A	3.0
JMZ-1-3.5A	3.5

Performance Data

Vibration Curve

Impact Curve

Technical Specifications

Model	Pz Nominal Load (KG)	Pz Max Deflection (mm)	Vibration (Kv)	Shock (Ks)	Resonant Frequency (Hz)	Working Temperature(℃)
JMZ-1-1.0A	1.0	3±1.5	≤3.5	30g/11ms	＜15	-65～+120
JMZ-1-1.5A	1.5
JMZ-1-2.0A	2.0	2±1.5
JMZ-1-3.0A	3.0	3±1.5
JMZ-1-3.5A	3.5

Key Advantages

No creep or ageing
High internal damping
Very wide temperature range (-65℃ to +120℃)
Wide variety of possible fittings
Rapid and economical prototyping
Extremely rugged construction and long lifespan
Excellent combined shock and vibration isolation
Resistant to chemical agents, seawater, ozone, and UV rays

Application Examples
