JMZ-1-3.0A Friction Damping Vibration Isolator 3kg Load CNC Equipment

Name: JMZ-1-3.0A Friction Damping Vibration Isolator 3kg Load CNC Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-1-3.0A
Availability: InStock

Brand Name:	Hoan
Model Number:	JMZ-1-3.0A
MOQ:	4
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Application:

Industrial, Commercial, And Residential Buildings

Showroom Location:

None

Installation Method:

Mounted Or Embedded

Marketing Type:

New Product 2025

Warranty:

1 Year

Type:

SHOCK ABSORBER

Usage:

Isolating Vibrations

Design Style:

Industrial

Material:

Spring

Availability:

Widely Available

Operating Temperature:

Varies Depending On Material And Type Of Spring

Model:

JMZ-1

Maintenance:

Low Maintenance

Durability:

Long-lasting

Highlight:

friction damping vibration isolator

CNC equipment vibration isolator

spring isolator 3kg load

Product Description

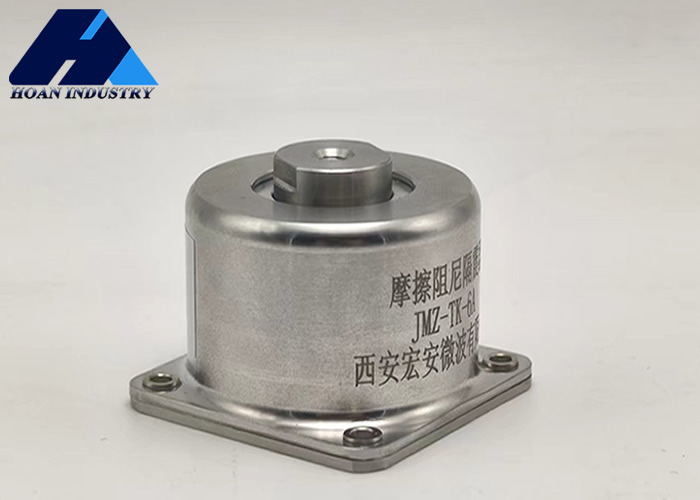

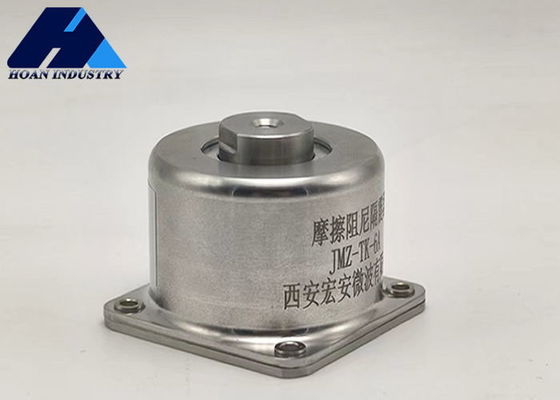

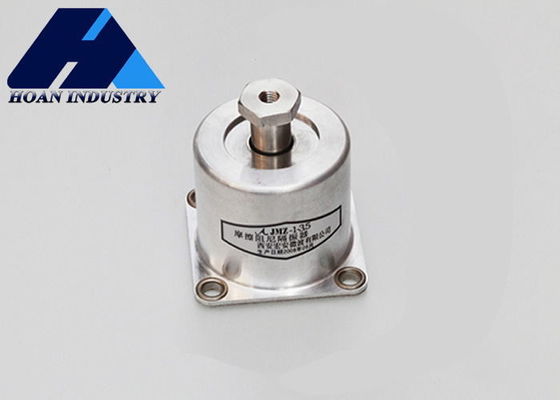

JMZ-1-3.0A Friction Damping Vibration Isolators

Precision and Stability for High-end Manufacturing and Scientific Research

Product Description

JMZ Series Vibration Isolators

The JMZ friction damping vibration isolators developed by Xi'an Hoan Microwave Co., Ltd. are professional solutions designed for high-end manufacturing and scientific research applications.

In high-end manufacturing, these isolators serve as the foundation for equipment such as CNC machining centers, Coordinate Measuring Machines (CMMs), and lithography machines. They effectively isolate ground micro-vibrations and operational vibrations, ensuring machining and measurement precision while reducing rejection rates.

For scientific research applications, they provide a near-absolute static platform for laser interferometers, atomic force microscopes, and precision balances, guaranteeing authentic and repeatable experimental data.

In communications and energy industries, these isolators protect sensitive radar antennas, satellite communication equipment, and gas turbine control systems, ensuring continuous and stable operation.

Dimension Parameters

Model	Nominal Load (kg)	B	A±0.2	H	h±0.5	T	d	d1	D
JMZ-1-1.0A	1.0	44	35	50	36	SW14	M5-7H	5.1～5.4	39.5
JMZ-1-1.5A	1.5	Same as above
JMZ-1-2.0A	2.0	Same as above
JMZ-1-3.0A	3.0	Same as above
JMZ-1-3.5A	3.5	Same as above

Performance Characteristics

Vibration Curve

Impact Curve

Technical Parameters

Model	Pz Nominal Load (KG)	Pz Max Deflection (mm)	Vibration (Kv)	Shock (Ks)	Resonant Frequency (Hz)	Working Temperature(℃)
JMZ-1-1.0A	1.0	3±1.5	≤3.5	30g/11ms	＜15	-65～+120
JMZ-1-1.5A	1.5	Same as above
JMZ-1-2.0A	2.0	2±1.5	Same as above
JMZ-1-3.0A	3.0	3±1.5	Same as above
JMZ-1-3.5A	3.5	Same as above

Frequently Asked Questions

Q: Are you a manufacturer or a trading company?

A: We are a manufacturer, not a trading company. We produce our products in our own facilities, ensuring full control over the quality and production process. This allows us to offer competitive pricing and customized solutions directly to our clients.

Q: Can you customize products for us?

A: Yes, we have the capability to customize our products to meet your specific needs. Please contact us with your requirements, and our team will work with you to create a tailored solution that fits your preferences.

Q: What is the lead time?

A: Sample will usually take 2 to 5 days. For mass production, it will estimated take 7 to 20 days. Faster delivery is available when our factory has stock.

Q: Can I get some samples before placing an order and how long for a sample?

A: Yes, sample orders are accepted.

Q: How is your shipping?

Worldwide shipping service available
Please contact before order as shipping cost varies time to time

Q: Do you offer discounts for bulk orders?

A: Yes, we offer discounts for bulk orders. The discount percentage may vary depending on the order quantity.
