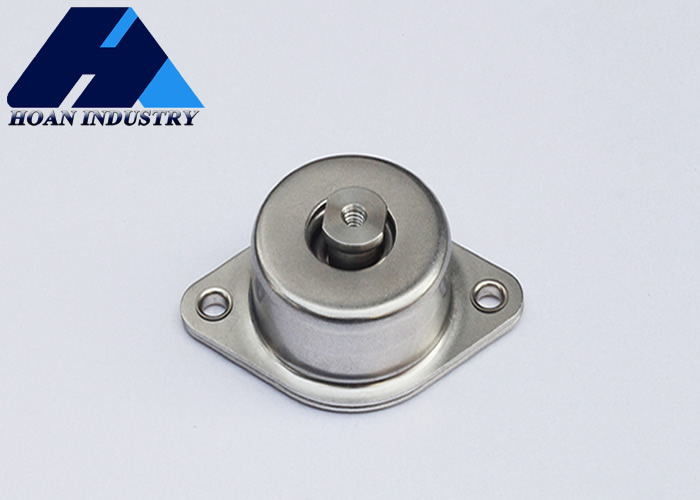

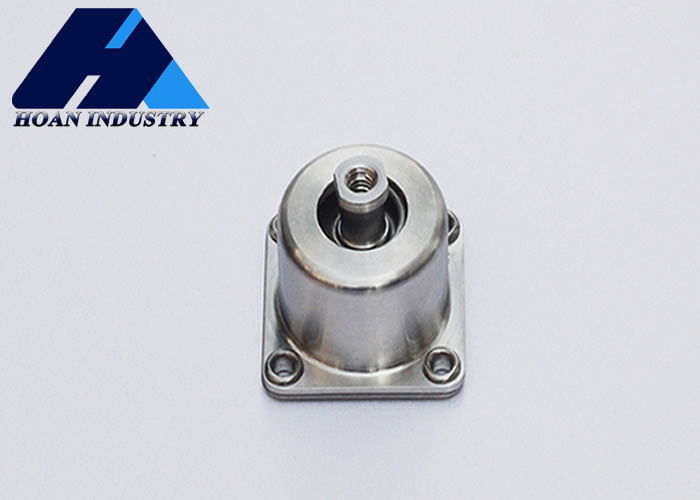

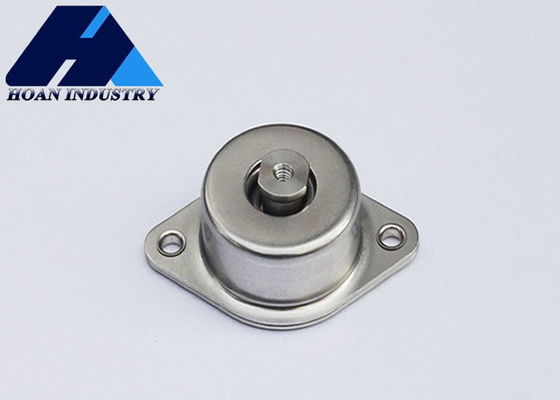

JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F

Name: JMZ-T-1.4 Friction Damping Spring Isolator with 95% Isolation Efficiency for Precision Manufacturing in -40°F to 180°F
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-1.4
Availability: InStock

Brand Name:	Hoan
Model Number:	JMZ-T-1.4
MOQ:	4
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Shock Absorption:

Excellent

Applications:

Industrial Engine Mounts

Certifications:

UL Listed, RoHS Compliant

Temperature Range:

-40°F To 180°F

Installation Type:

Horizontal/Vertical

Noise Reduction:

Effective

Availability:

Widely Available

Resilience:

High

Condition:

New

Customization:

Available Upon Request

Installation Method:

Bolted

Design Style:

Industrial

Isolation Efficiency:

Up To 95%

Product Keywords:

Friction Damping Isolators

Highlight:

Temperature Range Spring Isolator

95% Isolation Efficiency Vibration Isolator

Precision Manufacturing Friction Damping Isolator

Product Description

JMZ-T-1.4 Friction Damping Vibration Isolators for Precision Manufacturing

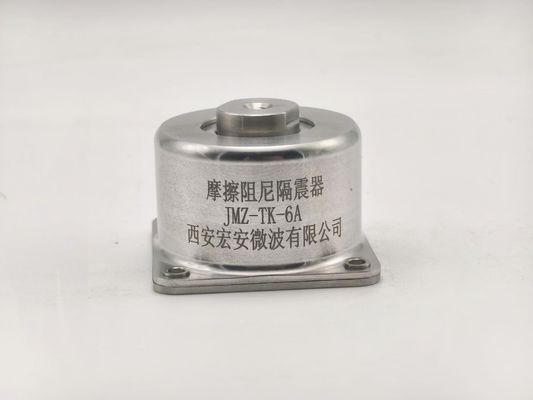

JMZ-T Series Overview

Master Vibration, Reshape the Stability of Precision Equipment - The Hoan Microwave JMZ-T Series Vibration Isolators provide groundbreaking solutions for precision manufacturing, aerospace, and high-end laboratory applications where even minor vibrations can compromise performance and accuracy.

Advanced Vibration Isolation Technology

The JMZ-T Series utilizes innovative friction damping technology with a non-viscous damping mechanism to efficiently dissipate vibration energy from both external environments and internal equipment operation. This solution effectively absorbs low-frequency ground vibrations and mid-to-high frequency operational vibrations, converting them into heat energy for dissipation.

Key Benefits

Provides stable working platform for precision equipment
Significantly improves processing quality and measurement accuracy
Extends equipment service life and reduces maintenance costs
Ideal for lithography machines, electron microscopes, CMMs, and precision machining centers

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration and impact performance characteristics of the JMZ-T Series:

Vibration Performance Curve

Impact Performance Curve

Customer Application
