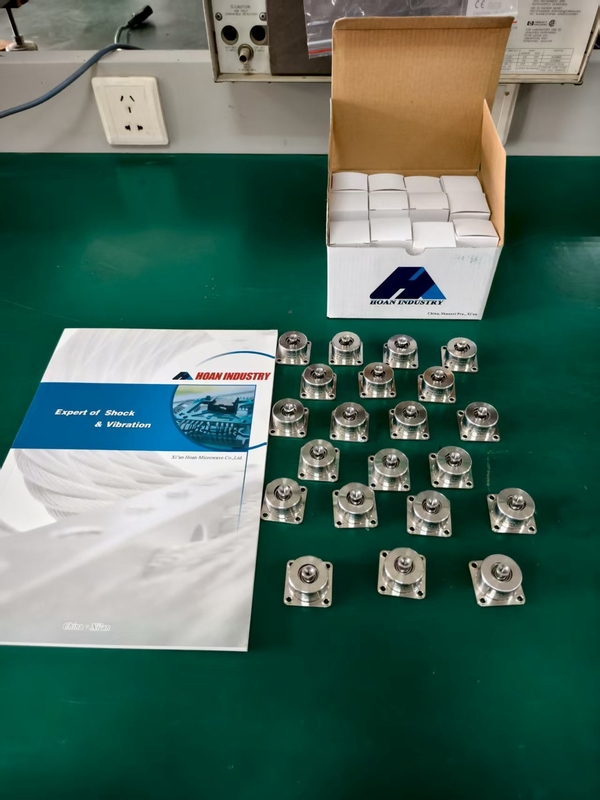

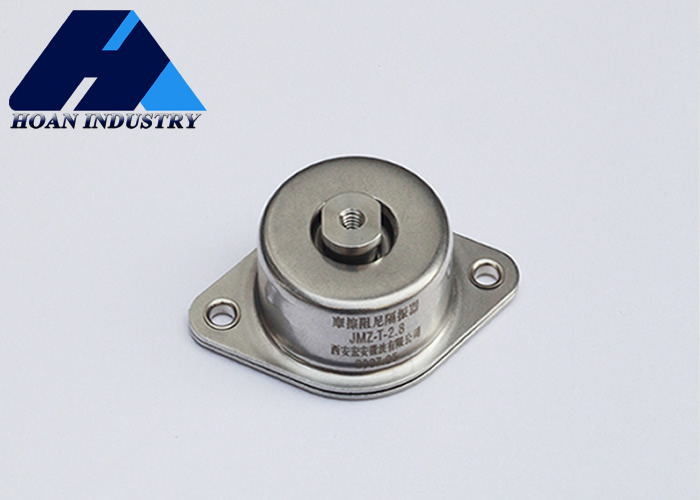

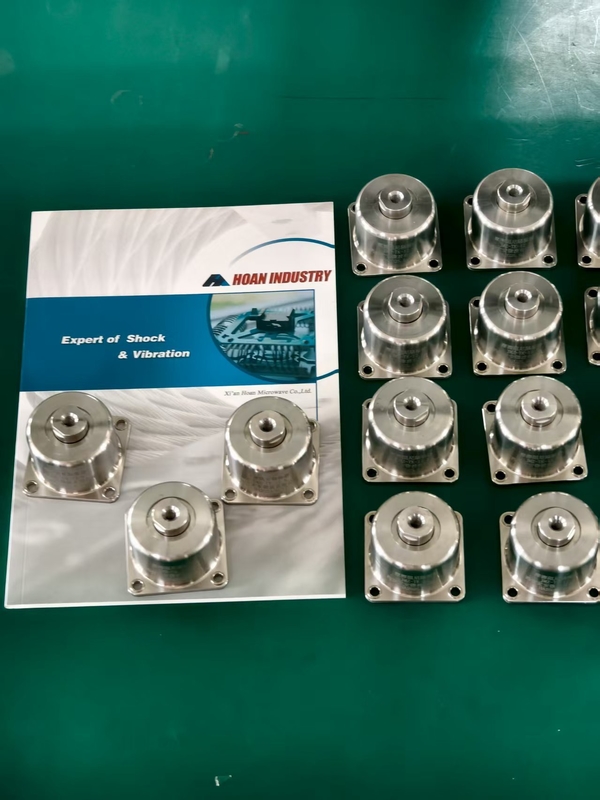

JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty

Name: JMZ-T-2.6 Friction Damping Vibration Isolator with Composite Friction Materials 60mm Overall Width and 1 Year Warranty
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T-2.6
Availability: InStock

Brand Name:	Hoan
Model Number:	JMZ-T-2.6
MOQ:	4
Payment Terms:	MoneyGram,Western Union,T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Availability:

Widely Available

Product_Name:

Spring Isolator

Overall Width:

60mm

Installation Method:

Mounted Or Embedded

Mounting Type:

Top Plate

Structure:

Helical

Maintenance:

Low Maintenance

Shock Resistance:

Strong

Type:

Vibration Isolator

After Warranty Service:

Online Support

Machinery Test Report:

Not Available

Warranty:

1 Year

Design Style:

Industrial

Certifications:

UL Listed, RoHS Compliant

Applications:

Industrial Engine Mounts

Highlight:

Composite Friction Materials Vibration Isolator

60mm Overall Width Spring Isolator

1 Year Warranty Friction Damping Vibration Isolator

Product Description

JMZ-T-2.6 Friction Damping Vibration Isolators

Superior Performance with Composite Friction Materials and Stable Damping Force

JMZ-T Series Overview

Independently developed by Xi'an Hoan Microwave Co., Ltd., the JMZ-T Series Friction Damping Vibration Isolators integrate innovative technologies for exceptional vibration control performance.

Key Technical Advantages

Advanced Friction Damping Mechanism: Provides stable damping force unaffected by temperature changes with zero maintenance requirements
Composite Friction Materials: Specially processed materials ensure high friction coefficient with smooth force variation for optimal response to both micro-vibrations and large shocks
Hybrid Structural Design: Combines metal spring load capacity with friction component energy dissipation for independent stiffness and damping adjustment
3D Vibration Isolation: Effective vibration control in all directions for comprehensive protection
Rigorous Quality Control: Comprehensive testing ensures compliance with highest industry standards

Technical Specifications

Model	Pz-Direction Load (kg)	Displacement Under Maximum Load (mm)	d	Weight (g)	Vibration test	Shock test	Resonance frequency (Hz)	Operating temperature range (℃)
JMZ-T-1.4	1.4	≤0.6	ST4*0.7/ M7-7H	≤58	＜4	30g,11ms	＜30	-65～+120
JMZ-T-2.6	2.6	See JMZ-T-1.4 for other specifications
JMZ-T-2.8	2.8	See JMZ-T-1.4 for other specifications

Performance Curves

Vibration curve:

Impact curve:

Application Example
