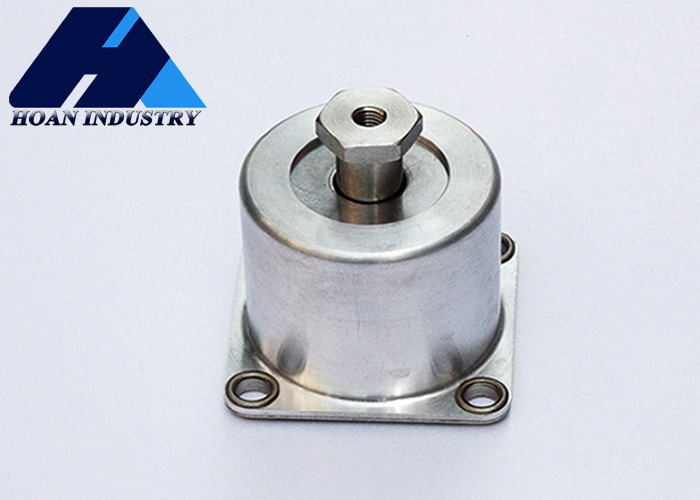

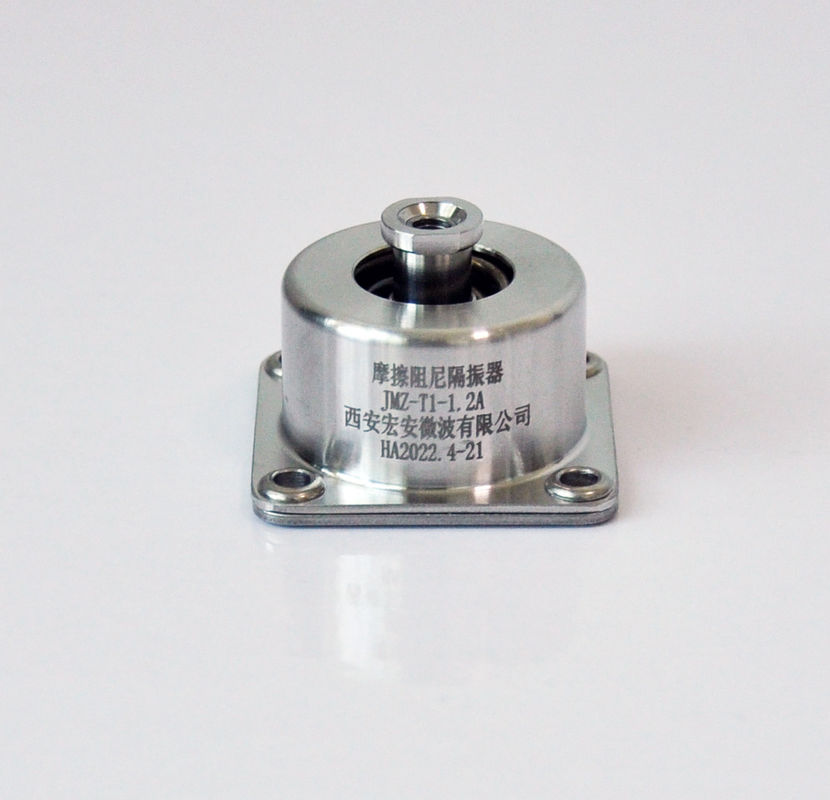

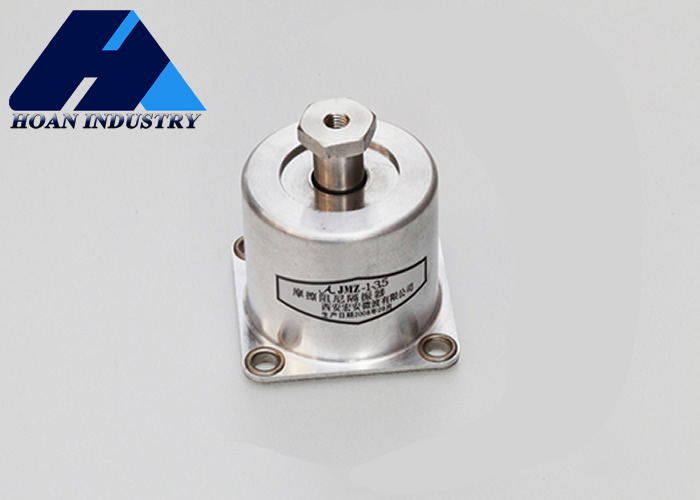

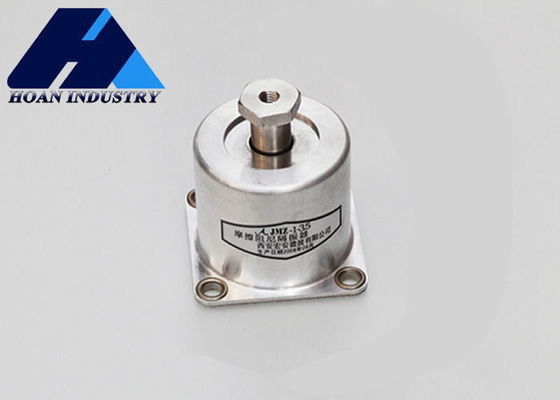

Name: JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-T1-0.3
Availability: InStock

Home > Products > Spring Isolator >

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JMZ-T1-0.3

Request A Quote

JMZ-T Series Spring Isolator with Up to 95% Isolation Efficiency for Precision Manufacturing

Product Details

Features:

High Load Capacity, Excellent Vibration Isolation, Durable

Compatibility:

Compatible With Various Types Of Machinery And Equipment

Durability:

Long-lasting

Adjustability:

Adjustable

Noise Reduction:

Effective

Dimensions:

Various Sizes Available

Color:

Silver

Machinery Test Report:

Not Available

Isolation Efficiency:

Up To 95%

Model:

JMZ-T

Usage:

Vibration Isolation

Maintenance:

Low

Shock Resistance:

Strong

Highlight:

JMZ-T Series Spring Isolator

95% Isolation Efficiency Spring Isolator

Precision Manufacturing Spring Isolator

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C,D/A,D/P,Western Union,MoneyGram,T/T

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Get Best Price

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Get Best Price

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Get Best Price

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Get Best Price

86-29-88292913

Contact Now

Product Description

Precision Manufacturing Laboratory Measurement and High-End Communications Vibration Isolation with JMZ-T1-0.3

JMZ-T1 Series: Advanced Vibration Isolation Technology

In precision manufacturing, laboratory measurement, and high-end communications, environmental vibrations can significantly impact equipment performance. The JMZ-T1 Series vibration isolator from Xi'an Hoan Microwave provides an innovative solution to this challenge.

Unlike traditional vibration isolation methods, our friction damping technology acts like a "Tai Chi grandmaster," converting destructive mechanical energy into negligible thermal energy. This process creates an "absolute static zone" for sensitive equipment, ensuring:

Elimination of vibration interference from footsteps, vehicles, and HVAC systems
Protection for nanoscale precision equipment like lithography machines
Clear imaging for electron microscopes and other sensitive instruments
Effective filtering across low to mid-high frequency vibration spectra

Structural Dimensions

Technical Specifications

Model	Max PZ-Direction Load (kg)	PZ Displacement Under Max Load (mm)	H (mm)	h (mm)	d (mm)	Weight (g)	Shock Test	Resonance Frequency (Hz)	Operating Temperature Range (°C)
JMZ-T1-0.3	0.3	≤0.6	19.5±0.5	16	M4-7H/ M3-7H	≤58	30g,11ms	＜30	-65～+120
JMZ-T1-0.45	0.45
JMZ-T1-0.6	0.6
JMZ-T1-1.2	1.2		22±0.5	17.5
JMZ-T1-1.4	1.4
JMZ-T1-2.0	2.0

Performance Characteristics

Vibration Isolation Performance

Impact Resistance Performance
