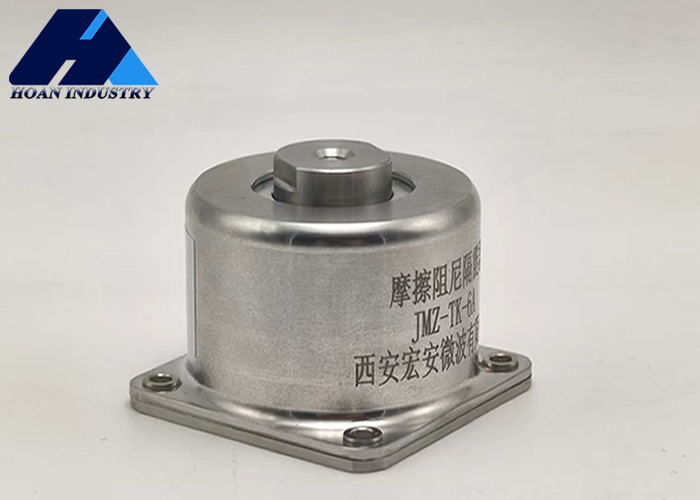

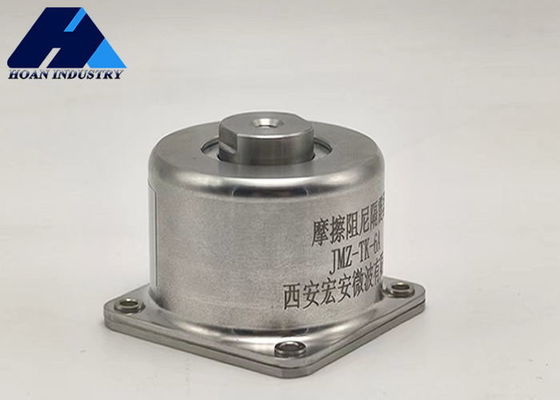

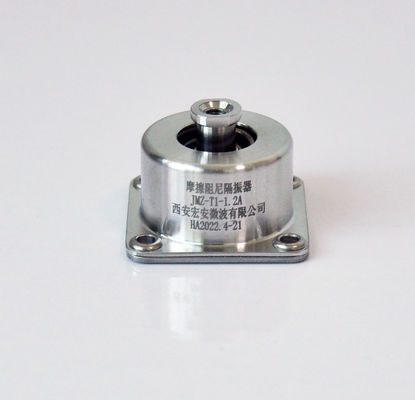

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

32mm Overall Width Spring Isolator

1 Year Warranty Vibration Isolator

High Resilience Friction Damping Isolator

Place of Origin:

China

Brand Name:

Hoan

Model Number:

JMZ-T1-1.4

Contact Us
Request A Quote
JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation
Product Details
Availability:
Widely Available
After Warranty Service:
Online Support
Product Keywords:
Friction Damping Isolators
Cost:
Varies Depending On The Size And Type Of Spring Used
Durability:
Long-lasting
Machinery Test Report:
Not Available
Overall Width:
32mm
Type:
Vibration Isolator
Warranty:
1 Year
Resilience:
High
Marketing Type:
Hot Product 2025
Material:
Spring Steel
Port:
Xi'an Or Specified
Certifications:
UL Listed, RoHS Compliant
Highlight:

32mm Overall Width Spring Isolator

,

1 Year Warranty Vibration Isolator

,

High Resilience Friction Damping Isolator

Payment & Shipping Terms
Minimum Order Quantity
4
Payment Terms
D/P,MoneyGram,Western Union,T/T,D/A,L/C
RELATED PRODUCTS
Good price JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation online

JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation

Get Best Price
Good price JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation online

JMZ-T1-1.2 Spring Isolator with 95% Isolation Efficiency 32mm Overall Width and UL Listed for Vibration Isolation

Get Best Price
Good price JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control online

JMZ-T1-0.6 Spring Isolator with High Resilience and Strong Shock Resistance for Durable Vibration Control

Get Best Price
Good price JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty online

JMZ-T1-0.45 Friction Damping Vibration Isolator with Up to 95% Isolation Efficiency for 0-150°F Operating Temperature and 1 Year Warranty

Get Best Price
Contact Us
86-29-88292913
Contact Now
Product Description
JMZ-T1-1.4 Vibration Isolator for Industrial Environments
JMZ-T Series: Robust Vibration Isolation Solution

The JMZ-T Series friction damping vibration isolators from Xi'an Hoan Microwave are engineered for demanding industrial applications where standard laboratory-grade isolation systems fail. Designed to withstand harsh conditions including temperature extremes, contaminants, and mechanical shocks while maintaining precise vibration isolation performance.

Key Features
  • Environmental Resistance: High-strength aluminum alloy/stainless steel construction with anti-corrosion surface treatments ensures durability in humid and chemically aggressive environments.
  • Anti-Contamination Design: Multi-layer sealing system protects core mechanisms from dust, oil mist, and other industrial contaminants.
  • Impact Protection: Reinforced structure with displacement limiters safeguards both the isolator and protected equipment from shock loads.
  • Temperature Stability: Consistent performance across extreme temperatures (-65°C to +120°C) without need for seasonal recalibration.
Structural Diagram
JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation 0
Technical Specifications
Model Max Load (PZ-Direction) PZ Displacement H (mm) h (mm) d (mm) Weight (g) Shock Test Resonance Freq. (Hz) Temp. Range (°C)
JMZ-T1-0.3 0.3 ≤0.6 19.5±0.5 16 M4-7H/M3-7H ≤58 30g,11ms ＜30 -65～+120
JMZ-T1-0.45 0.45
JMZ-T1-0.6 0.6
JMZ-T1-1.2 1.2 22±0.5 17.5
JMZ-T1-1.4 1.4
JMZ-T1-2.0 2.0
Performance Characteristics
Vibration Isolation
JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation 1
Impact Resistance
JMZ-T1-1.4 32mm Overall Width Spring Isolator with 1 Year Warranty and High Resilience for Industrial Vibration Isolation 2
