New Product 2025 Spring Isolator JMZ-TK-4A with 58mm Overall Width and 0.25 Inch Deflection for Precision Equipment

Name: New Product 2025 Spring Isolator JMZ-TK-4A with 58mm Overall Width and 0.25 Inch Deflection for Precision Equipment
Brand: Xi'an Hoan Microwave Co., Ltd.
SKU: JMZ-TK-4A
Availability: InStock

Brand Name:	Hoan
Model Number:	JMZ-TK-4A
MOQ:	4
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Features:

Durable, Easy To Install

Material:

Steel

Shock Absorption:

Excellent

Availability:

Widely Available

Mounting Type:

Floor Mount

Noise Reduction:

Yes

Diameter:

Varies Depending On The Application

Structure:

Helical

Overall Width:

58mm

Deflection:

0.25 Inch

Marketing Type:

New Product 2025

Condition:

New

Product Keywords:

Friction Damping Isolators

Isolation Efficiency:

95%

Highlight:

58mm Overall Width Spring Isolator

0.25 Inch Deflection Vibration Isolator

New Product 2025 Friction Damping Isolator

Product Description

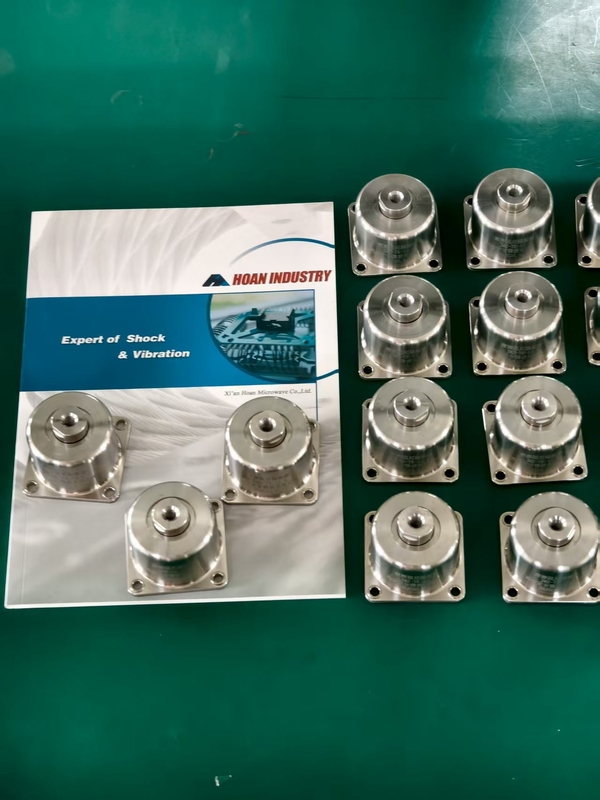

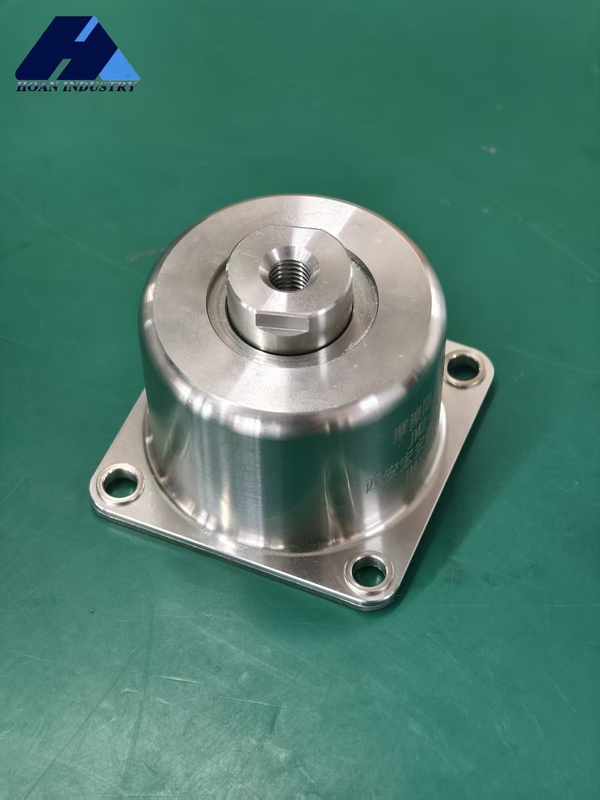

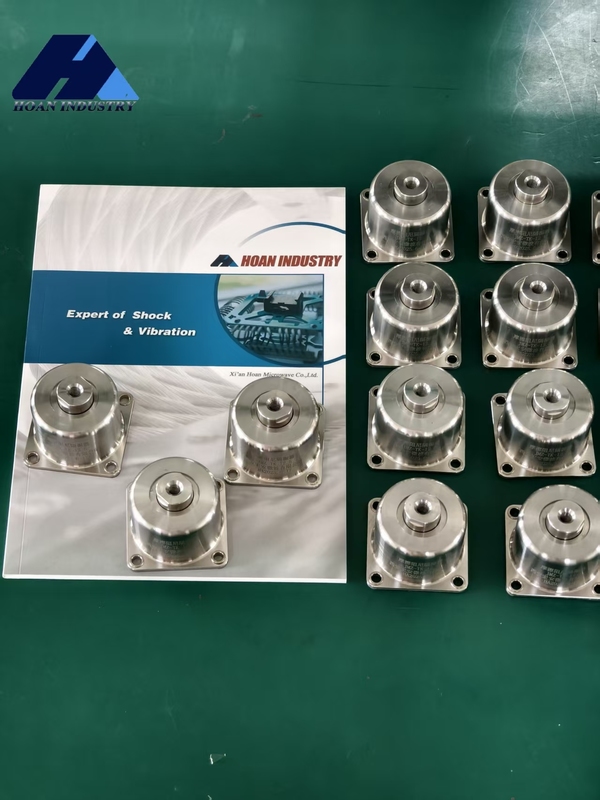

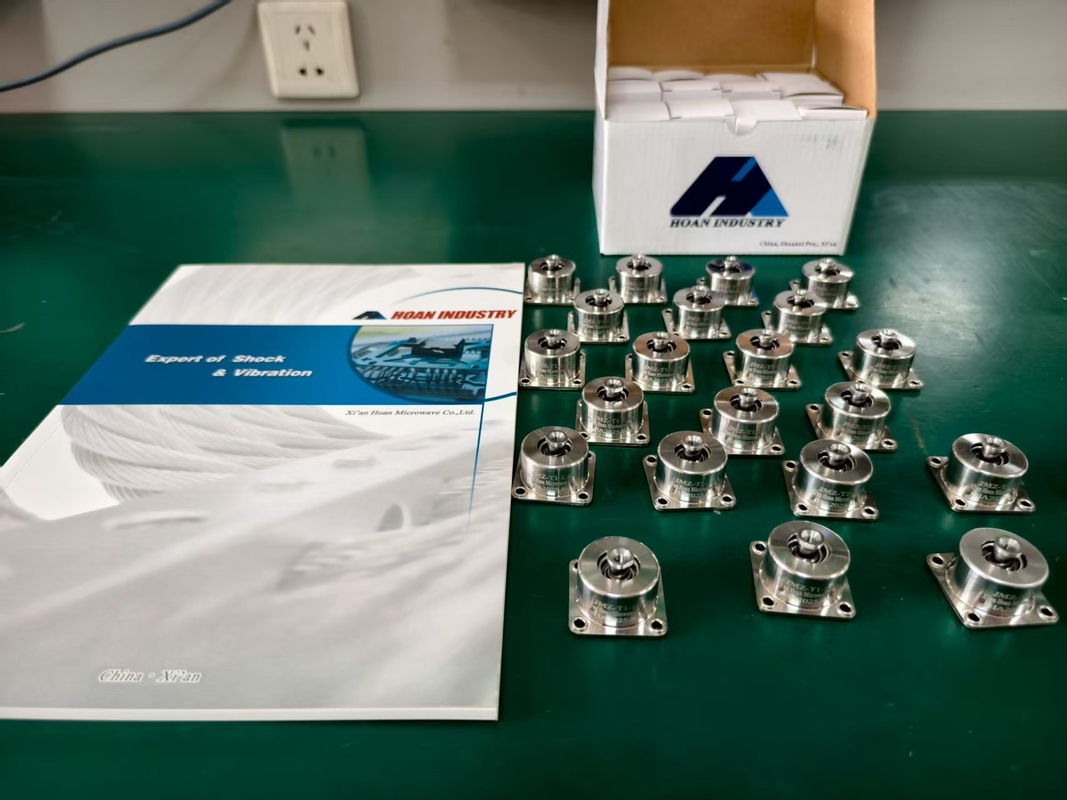

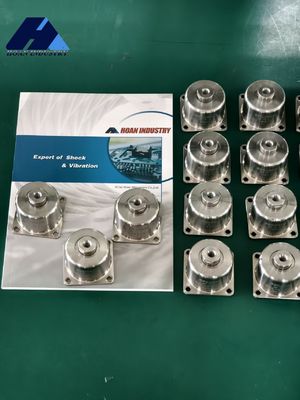

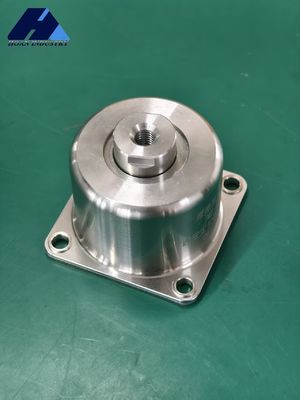

JMZ-TK-4A Vibration Isolator

JMZ-TK Series

JMZ-TK Vibration Isolator: Press the "Silence Button" for Your Precision Equipment
Vibration and impact are invisible threats to precision equipment. The JMZ-TK series friction damping vibration isolators from Xi'an Hoan Microwave Co., Ltd. effectively filter out harmful disturbances from ground micro-vibrations, equipment operation, and environmental factors.

The JMZ-TK isolator utilizes direct friction damping technology, converting mechanical energy into thermal energy through precisely engineered friction pairs. This provides instant response to vibrations with no delay, effectively suppressing disturbances at their source.

The isolator excels in low-frequency vibration control (5Hz to 100Hz), crucial for precision measurement and processing applications. By increasing the system's equivalent damping ratio, it significantly reduces resonance peaks and quickly attenuates low-frequency vibrations, creating a near-stationary reference plane for sensitive equipment.

Ideal for laboratories, metrology centers, astronomical observatories, and high-end manufacturing, the JMZ-TK series provides a fundamental solution for improving data accuracy and process precision in vibration-sensitive environments.

Structural Dimensions

Model	B	M	d	A	C	∅1	∅2	H1	H2
JMZ-TK-2.5A～8A	46	6	4.1	58	20	55	22	36	3.6
JMZ-TK1-25A/40A/50A	63	12	8.2	78	20	70	22	56	6

Technical Parameters

Model	Nominal Load (N)	Load Range (N)	Natural Frequency fn≤(Hz)	Loading Working Height H0±1(mm)	Limit Displacement	Maximum Vibration Transmissibility ηv≤	Impact Resistance Test	Service Life (year)
JMZ-TK-2.5A	25	20～30	33	42	4	3	100G	10
JMZ-TK-4A	40	30～50
JMZ-TK-5A	50	40～60
JMZ-TK-6A	60	50～70
JMZ-TK-8A	80	70～90
JMZ-TK1-25A	250	200～300	20	70	7	3	60G
JMZ-TK1-40A	400	300～480
JMZ-TK1-50A	500	400～600
