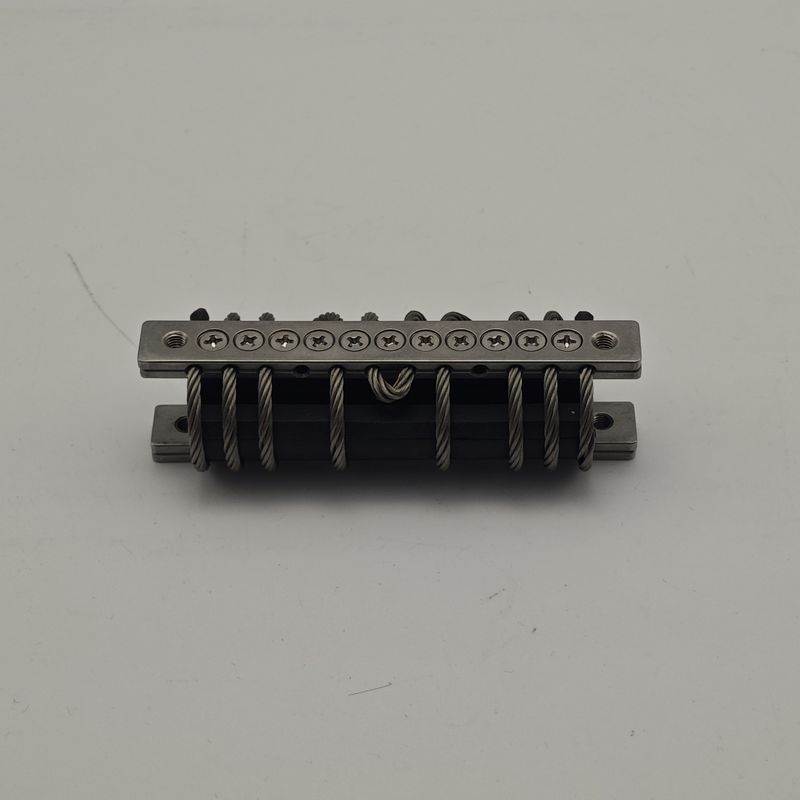

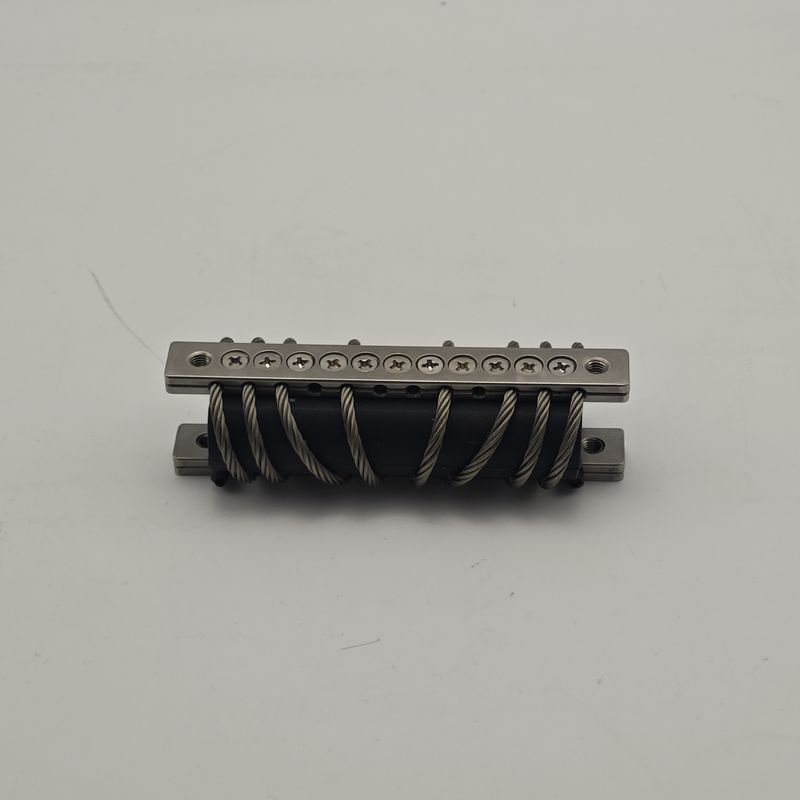

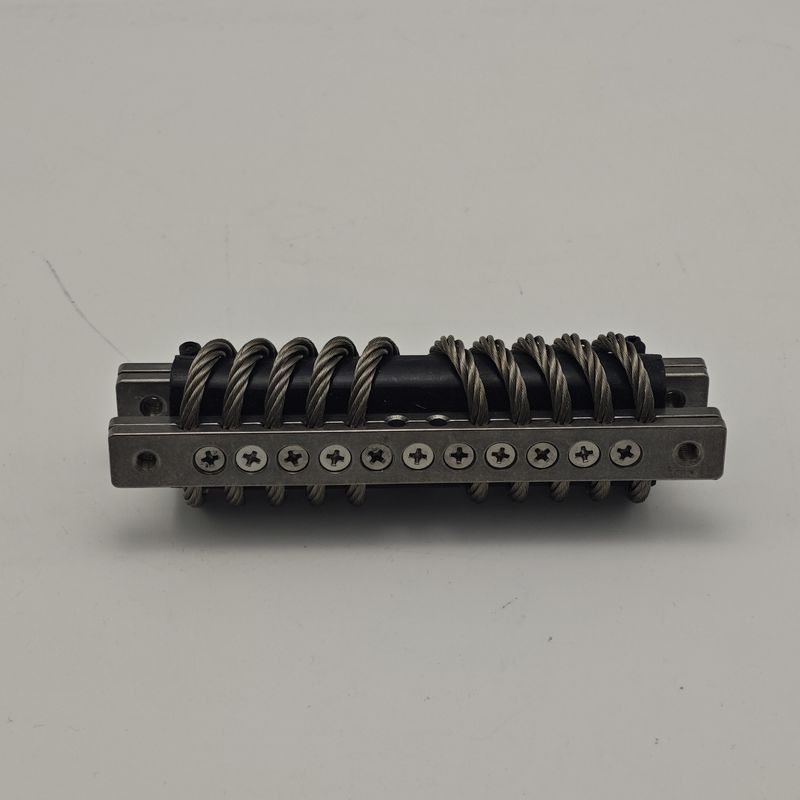

GX-30AN Wire Rope Vibration Isolator with Exceptional Environmental Adaptability, Corrosion Resistant and Good Thermal Shock Resistance

Brand Name:	Hoan
Model Number:	GX-30A(N)
MOQ:	4
Payment Terms:	L/C,D/A,Western Union,D/P,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Oem/Odm Service:

Available

Thickness:

32.5±1.5mm

Sample Availability:

Available Upon Request

Shape:

Customized, Non-Customized

Thermal Shock Stability:

Good Thermal Shock Stability

Material:

Various Materials Available

Printing:

Yes

Slag Erosion Resistance:

Excellent Slag Erosion Resistance

Length:

113m

Shipping:

By Sea

Chemical Stability:

Extremely High Chemical Stability

Product Type:

Customized

Keyword:

Refractories Materials

Feature:

Sets Can′t Be Sold Separately

Thermal Shock Resistance:

Good Thermal Shock Resistance

Highlight:

Exceptional Environmental Adaptability Wire Rope Vibration Isolator

Corrosion Resistant Vibration Isolator

Good Thermal Shock Resistance GX-N Series

Product Description

Customized Products GX-30AN Unafraid of Harsh Environments for Exceptional Environmental Adaptability

GX-N Series Wire Rope Vibration Isolators

The GX-N Series wire rope vibration isolators from Xi'an Hoan Microwave are engineered to withstand extreme environmental conditions while maintaining stable performance. These isolators are designed to resist high temperatures, low temperatures, humidity, salt spray, mold, and oil contamination - conditions that typically cause rapid aging and failure in conventional vibration isolators.

Superior Environmental Resistance

Constructed with stainless steel wire rope core for exceptional corrosion resistance
Contains no organic materials (rubber or plastic), eliminating issues of aging, brittleness, and creep
Maintains stable performance across wide temperature range (-55°C to +200°C and higher)
Resists salt spray corrosion and mold infestation in marine and chemical environments
Ideal for shipboard equipment, coastal outdoor facilities, and chemical machinery applications

Structural Dimensions

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Accord with National Standard GJB150-16

Xi'an Hoan Microwave's GX-N Series provides reliable vibration protection throughout its entire lifecycle, ensuring consistent performance in even the most demanding environments.
