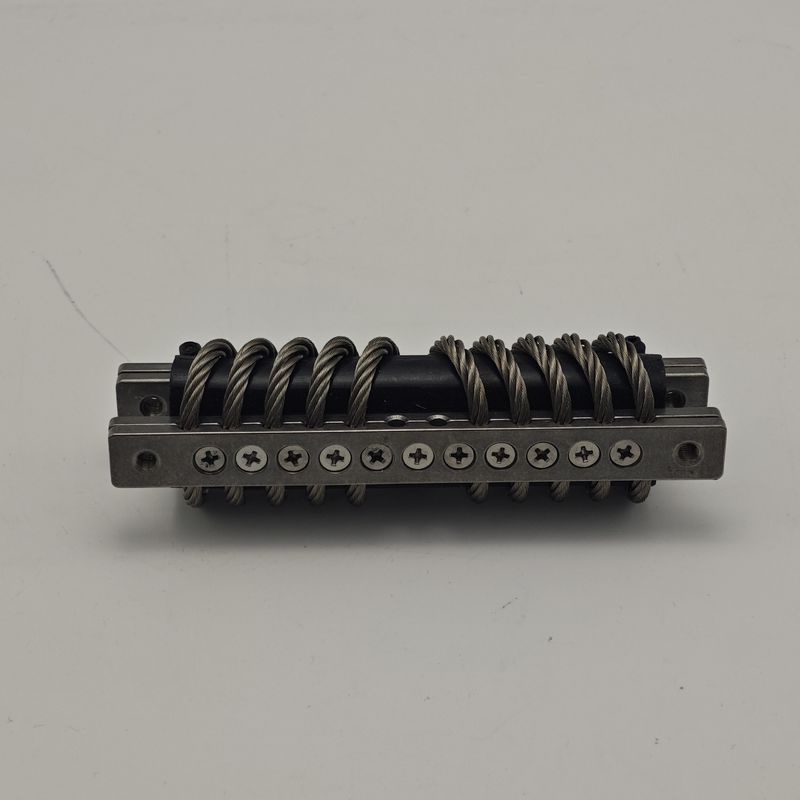

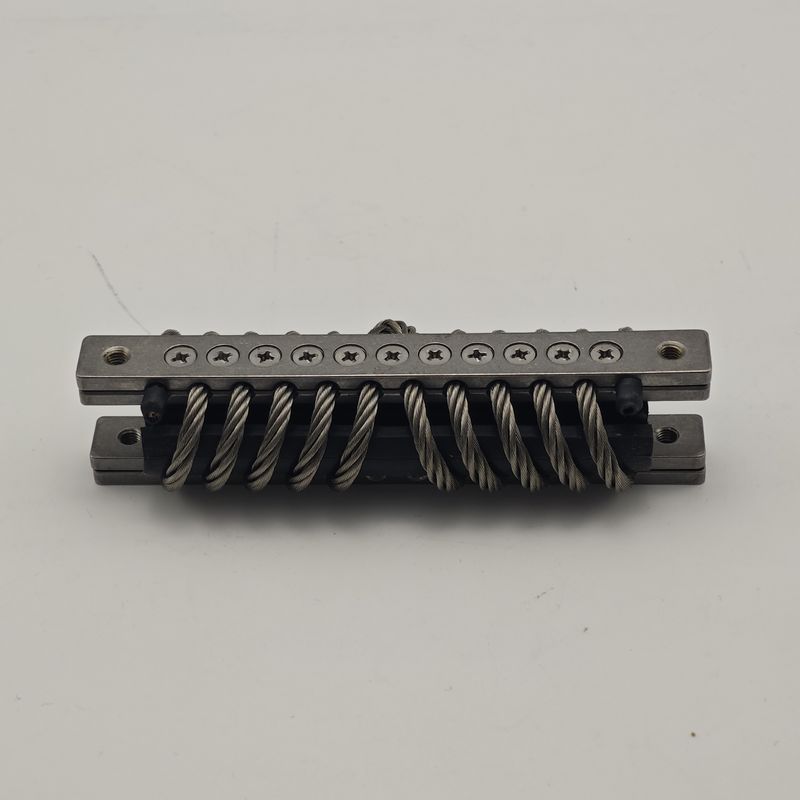

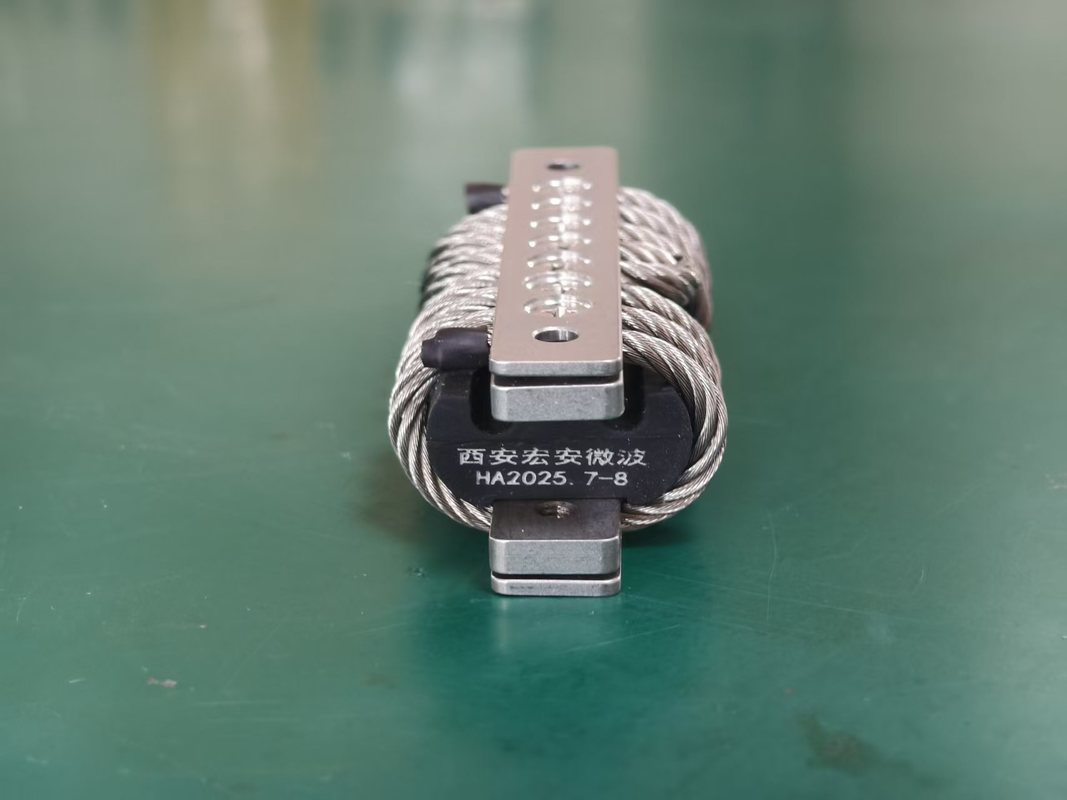

Customized GX-40AN Wire Rope Vibration Isolator with 113mm*40mm Size 32.5±mm Thickness and 1000℃-1800℃ Service Temperature

Brand Name:	Hoan
Model Number:	GX-40A(N)
MOQ:	4
Payment Terms:	L/C,D/A,D/P,Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Thickness:

32.5±mm

Product Material:

Various Materials Available

Size:

113mm*40mm

Service Temperature:

1000℃-1800℃

Chemical Stability:

Extremely High Chemical Stability

Color:

Customizable

Printing:

Yes

Thermal Shock Resistance:

Good Thermal Shock Resistance

Shipping:

By Sea

Shape:

Rectangle

Product Type:

Customization Service

Product Design:

Customizable

Thermal Shock Stability:

Good Thermal Shock Stability

Highlight:

113mm*40mm Size Wire Rope Vibration Isolator

32.5±mm Thickness GX-N Series

1000℃-1800℃ Service Temperature Customized Vibration Isolator

Product Description

Xi'an Hoan Microwave Customized Products - GX-40AN

The Best Choice for Lightweight Design in Aerospace and Vehicle-Mounted Fields

GX-N Series - Preferred for Lightweight Design

In aerospace, UAVs, and high-end vehicle-mounted electronics applications, weight optimization is critical. Xi'an Hoan Microwave's GX-N Series wire rope vibration isolators deliver excellent vibration isolation and impact resistance while meeting stringent lightweight requirements.

Metal wire rope construction with aluminum alloy or stainless steel frames
Superior strength-to-weight ratio compared to traditional shock absorbers
Compact design saves valuable installation space
-standard manufacturing ensures reliability and durability
Ideal for electronic enclosures, airborne computers, navigation equipment, and radar systems

Structural Dimension Diagram

Model	L(mm)	A±0.3	H±1.5	W±1.5	d
GX-10A(N)	55	49	21	26	M3-7H
GX-20A(N)	84	68	29	35	M5-7H
GX-30A(N)	113	97	32.5	40	M5-7H
GX-40A(N)	113	97	32.5	40	M5-7H
GX-50A(N)	113	97	33	40	M5-7H
GX-60A(N)	133	117	31	40	M5-7H

Performance Characteristics

Vibration Curve

Impact Curve

Technical Parameter	GX-10A(N)	GX-20A(N)	GX-30A(N)	GX-40A(N)	GX-50A(N)	GX-60A(N)
Pz Nominal Load(N)	Downward Pressure
Resonance Magnification	≤4
High Vibrating Efficiency	≥95%
Working Temperature	-55°C to +120°C
Shock(Ks)	30g/6ms
Peak Response G	≤3.5km/s²
Vibration (Kv)	Accord with National Standard GJB150-16
