Stainless Steel Wire Rope Vibration Isolator with 18kg Max Static Load and Corrosion Resistant for Engine Stand and Aerospace

Professional wire rope vibration isolators designed for engine stands, container shipbuilding, energy systems, aerospace applications, and vibration shock control. The JGX-0480D-18A model features advanced isolation technology for precise instruments requiring noise attenuation.

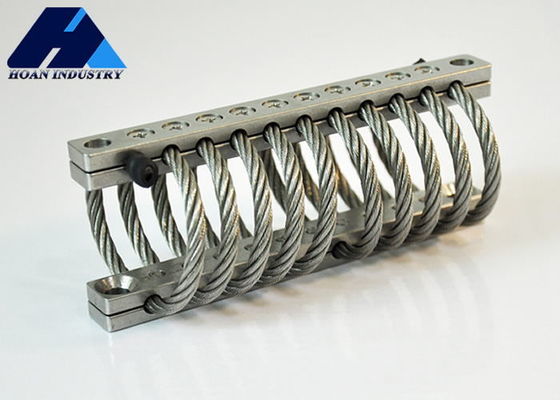

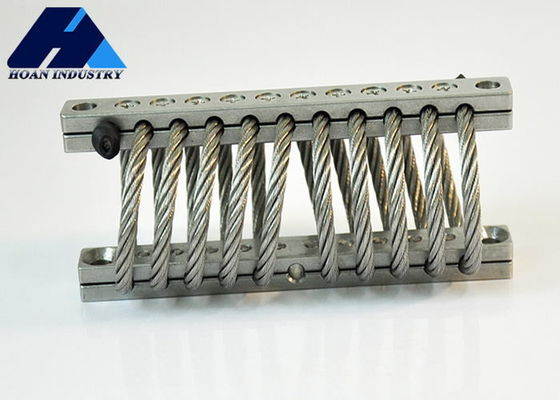

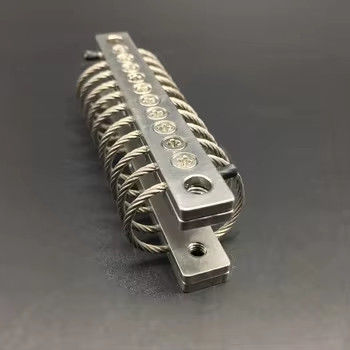

Wire isolation mounts, also known as wire rope isolators, consist of stainless steel stranded cable threaded through aluminum retaining bars, providing effective shock and vibration isolation.

With corrosion-resistant, all-metal construction, Xi'an Hoan's wire isolation mounts are environmentally stable, high-performance shock and vibration isolators that remain unaffected by temperature extremes, chemicals, oils, ozone, and abrasives.

JGX-0480D-18A is the newly designed 10-loop model with 4.8mm diameter and maximum static load of 18kg, specifically engineered for precise instruments requiring noise attenuation. Constructed from stainless steel, this model offers excellent waterproof performance, anti-corrosion properties, and exceptional durability.

These wire isolation mounts are widely used in vehicles, armored cars, missiles, launchers, highway transportation, marine applications, shipbuilding, navy systems, energy equipment, photographic equipment, aerial equipment, communication apparatus, electronic sensing devices, mobile electronic devices, cameras, and various other demanding working conditions.

Stainless Steel or Aluminum can be selected

• White Anodizing: Surface treatment that hardens the aluminum surface while maintaining the natural aluminum color. This is the standard surface treatment for aluminum mounting bars.
• Hard Anodizing: Surface treatment that provides significantly greater hardness than white anodizing. Hard anodized aluminum mounting bars feature a darker color and are specially designed for complex or demanding working conditions.

• No creep or ageing
• High internal damping
• Very wide temperature range
• Wide variety of possible fittings
• Rapid and economical prototyping
• Extremely rugged construction and long lifespan
• Excellent combined shock and vibration isolation
• Not affected by chemical agents, seawater, ozone, UV rays

Xi'an Hoan Microwave Co. Ltd., a professional manufacturer of vibration isolators and mounts, provides top-quality energy absorption and vibration isolation solutions for military, defense, commercial, and heavy industry applications.

Our product range includes vibration isolators, vibration mounts, friction dampers, shock absorbers, and LC filters. Established in 2005, we have grown rapidly over the decades and now employ more than 500 people, including over 100 experts.

We are the leading supplier across more than 31 provinces in China and nearly 25 overseas countries, serving motors, fans, punch machines, elevators, compressors, chemical equipment, subway trains, bridges, mechanical equipment, large-scale construction projects, studios, theaters, vehicles, vessels, and industrial machinery.

Contact us today to discover how our products can benefit your specific equipment application needs, or connect with one of our representatives to help meet your product requirements!
